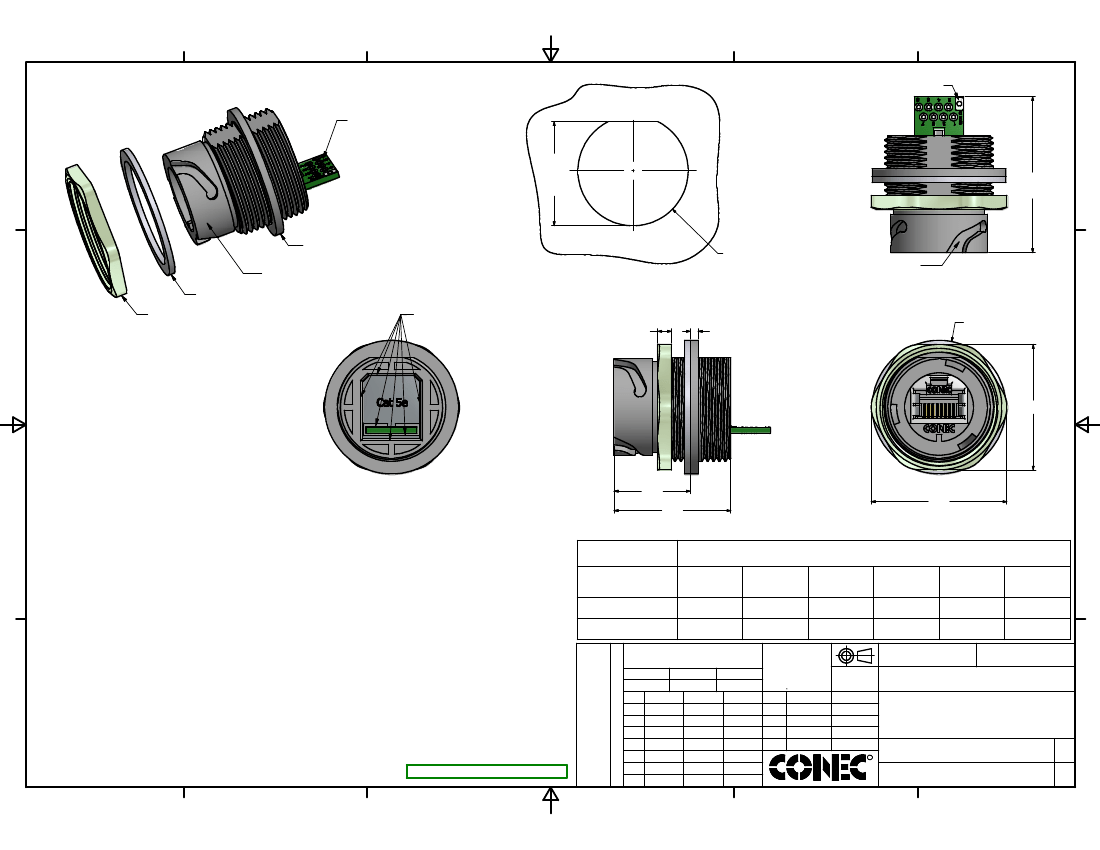

Shielded Cat.5e RJ45 PCB Jack
with Metal Shell Grounding
accepts both Solid and Stranded
AWG 24 to 26 Wires
26.50
`
0.05
3
2
Grounding Connection
1
D
D
39.75
n
28.00
`
0.05
Panel Flange
Receptacle Housing
(Plastic in different Colors
Bayonet Locking Style)
Panel Gasket
Panel Nut
( M28 x 1.5)
Sealed with Sealing Compound,
provides IP67 even when uncovered
(For potted version only)
3.5
2.0
Bayonet Channel x 3
Recommended Panel Cutout
C
n
34
C
Notes:
1. Electrical Specifications:
- Meets EIA/TIA-568-B.2 Cat.5e Specification
- Contact Resistance: 20mOhm max.
- Insulation Resistance: 500MOhm min. @ 100 VDC
- Current Rating: 1.2A max. at 25
~
C
- Working Voltage: 100 VDC
- DWV: 1000 VDC/60s Contact to Contact, 1500 VDC/60s Contact to Metal Shell
- Operating Temperature: -40
~
C to +85
~
C
2. Material and Finish:
- Receptacle Housing: Polyester (Color: See Part Number Table); UL94 V-0
- Panel Nut: Brass, Finish: Nickel Plated
- Panel Gasket: Silicon, Color: White
- Cat.5e RJ45 PCB Jack Metal Shell: Copper Alloy, Nickel Plated
- Cat.5e RJ45 PCB Jack Plastic Housing: Glass filled PBT UL94 V-0, Color: Black
- Cat.5e RJ45 PCB Jack Contacts: Phosphor Bronze, Finish: 50u" Gold min. over Nickel
3. Connector can be front or rear mounted to a maximum panel thickness of 3.2mm.
4. IP67 rated when covered or fully mated with the appropriate mating connector
5. Recommaned Mounting Panel Nut torque is 20 to 25 lb-inch
Directive 2002/95/EC RoHS Compliant
19.4
34.5
29.7
B
32
B
Description
Plastic Receptacle
Housing Color
Unpotted Version
Potted Version
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
Colored Plastic Receptacle Housing with Shielded Cat.5e RJ45 PCB Jack
Black
17-110264
17-110324
Blue
17-110274
17-110334
Tolerance
0 PLC
1 PLC
2 PLC
3 PLC
ANGLES
Green
17-110284
17-110344
`
0.50
`
0.38
`
0.25
`
0.10
`
3
~
Yellow
17-110294
17-110354
Red
17-110304
17-110364
White
17-110314
17-110374
DOT NOT ALTER CAD DRAWING BY HAND
Customer:
Approval Date
Unless otherwise specified
Scale:
Autodesk
Inventor
Name
Vincent Ke
J. Chaudry
Dim. in mm
Name
Title
Material: See Notes
2012
Draw.
Appd.
Norm
D-old
Date
Oct. 09
Oct. 09
Receptacle Assembly Kit
with Colored Plastic Receptacle Housing
A
+ Shielded Cat. 5e RJ45 PCB Jack Version-II
DIN
A
R
Drawing No.: 17K1A359
Part No.: SEE PART NUMBER TABLE
