326-93-132-41-003000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 326-93-132-41-003000

Preview

326-93-132-41-003000: DescriptionIC u0026 Component Sockets 32P SGL IN LINE SKT GRID WP W/SLDR TAIL; CategoryThe connector socket; File Size381KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

326-93-132-41-003000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	326-93-132-41-003000	-	-	View	Buy Now

326-93-132-41-003000 Overview

IC u0026 Component Sockets 32P SGL IN LINE SKT GRID WP W/SLDR TAIL

326-93-132-41-003000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP32
Shell material	PLASTIC
JESD-609 code	e0
Number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

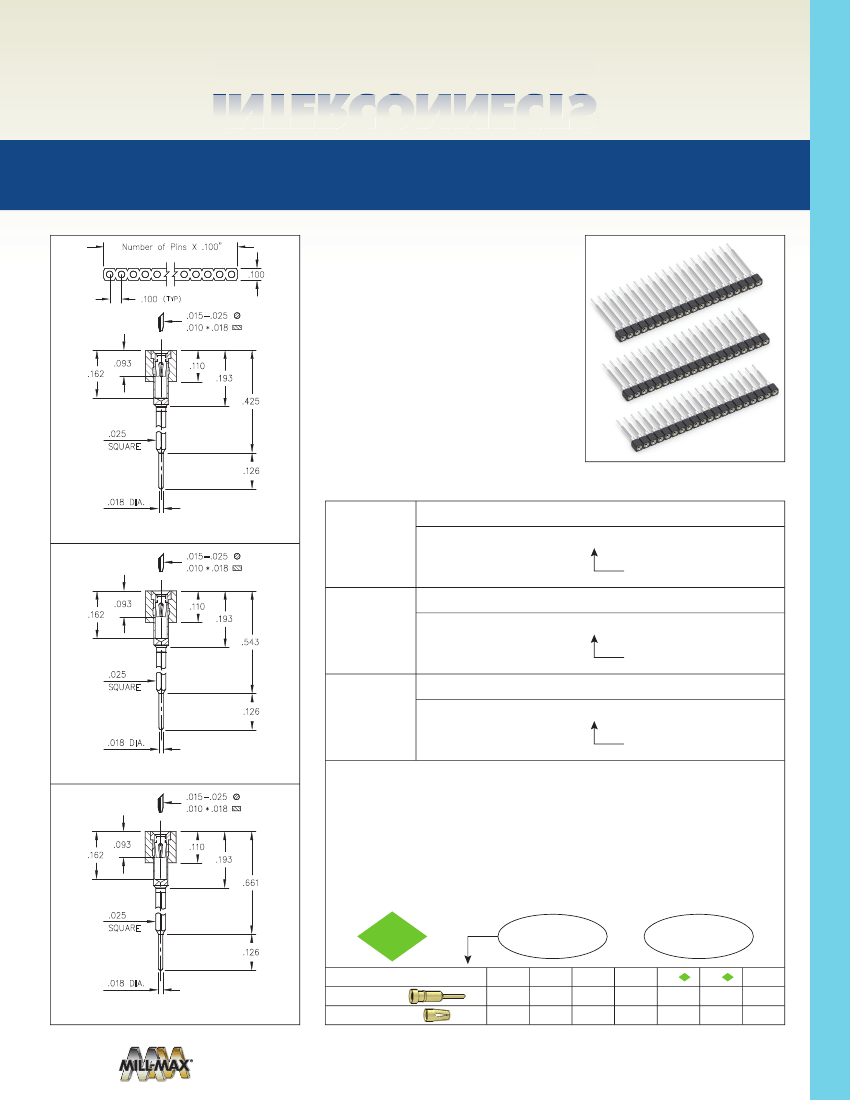

SERIES 326 • .100” GRID WRAPOST WITH SOLDER TAIL •

SINGLE ROW STRIPS

•

Wrapost / Solder Tail combinations are

available in 3 lengths using MM pin numbers:

326...001 uses pin # 2601

326...002 uses pin # 2602

326...003 uses pin # 2603

See page 199 for details

.015-.025

.010 * .018

.162

.093

.110

.193

.425

•

Hi-Rel, 4- nger BeCu #30 contact is rated at

3 amps. See page 253 for details

.025

SQUARE

.126

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

.018 DIA.

ORDERING INFORMATION

Series 326...001

1 Level Wrapost

326 XX 1_ _ 41 001000

Specify number of pins

01-64

FIG. 1

.015-.025

.010 * .018

FIG. 1

Series 326...002

.093

.162

.110

.193

.543

2 Level Wrapost

326 XX 1_ _ 41 002000

FIG. 2

Series 326...003

Specify number of pins

.025

SQUARE

.126

01-64

3 Level Wrapost

326 XX 1_ _ 41 003000

FIG. 3

.018 DIA.

Specify number of pins

01-64

FIG. 2

.015-.025

.010 * .018

.661

.025

SQUARE

.126

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

91

10

µ”

Au

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.018 DIA.

SPECIFY PLATING CODE XX=

93

30

µ”

Au

41

200

µ”

Sn

10

µ”

Au

43

200

µ”

Sn

30

µ”

Au

FIG. 3

Sleeve (Pin)

Contact (Clip)

200

µ”

Sn/Pb 200

µ”

Sn/Pb

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 71 | INTERCONNECTS

.162

.093

.110

.193

326-93-132-41-003000 Related Products

	326-93-132-41-003000	326-43-164-41-003000	326-93-120-41-002000	326-43-132-41-001000	326-13-109-41-003000	326-93-132-41-001000	326-93-120-41-001000	326-43-120-41-003000	326-43-125-41-001000
Description	IC u0026 Component Sockets 32P SGL IN LINE SKT GRID WP W/SLDR TAIL	IC u0026 Component Sockets 64P SGL IN LINE SKT GRID WP W/SLDR TAIL	IC u0026 Component Sockets 20P SGL IN LINE SKT GRID WP W/SLDR TAIL	IC u0026 Component Sockets 32P SGL IN LINE SKT GRID WP W/SLDR TAIL	IC u0026 Component Sockets 9P HI-REL 3A WW	IC u0026 Component Sockets 32P SGL IN LINE SKT GRID WP W/SLDR TAIL	IC u0026 Component Sockets 20P SGL IN LINE SKT GRID WP W/SLDR TAIL	IC u0026 Component Sockets 20P SGL IN LINE SKT GRID WP W/SLDR TAIL	IC u0026 Component Sockets 1R, 25P STRT SKT STD SOLDER TAIL
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free	Lead free	Contains lead	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	conform to	incompatible	conform to	conform to	incompatible	incompatible	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Gold (Au)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn)
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	SIP32	SIP64	SIP20	SIP32	SIP9	SIP32	SIP20	SIP20	SIP25
JESD-609 code	e0	e3	e0	e3	e4	e0	e0	e3	e3
Number of contacts	32	64	20	32	9	32	20	20	25
Other features	SIP SOCKET	SIP SOCKET	SIP SOCKET	SIP SOCKET	-	SIP SOCKET	SIP SOCKET	SIP SOCKET	SIP SOCKET
Shell material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	-	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Base Number Matches	1	1	1	-	1	1	1	1	1
