73780-5143 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 73780-5143

73780-5143: DescriptionBoard to Board u0026 Mezzanine Connectors 120CKT HDM D/C STACKING MOD; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

73780-5143 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	73780-5143	-	-	View	Buy Now

73780-5143 Overview

Board to Board u0026 Mezzanine Connectors 120CKT HDM D/C STACKING MOD

73780-5143 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.528 inch
subject depth	0.512 inch
body length	1.896 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	.5838 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	120

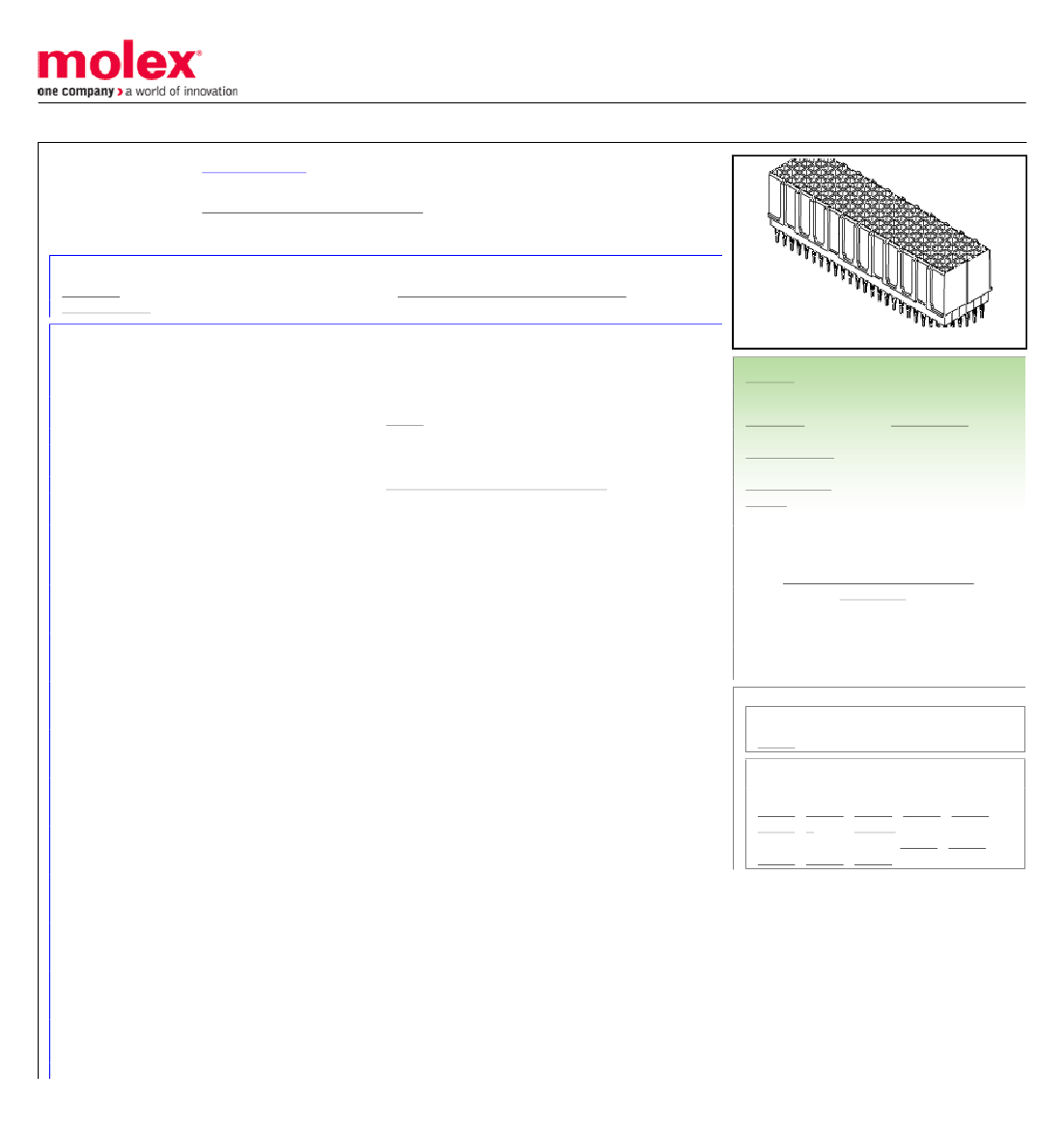

Preview

Download Datasheet

View All

This document was generated on 10/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0737805143

Active

HDM® Backplane Connector System

HDM Board-to-Board Daughtercard Receptacle, Vertical, Signal Module, 120 Circuits,

Mounted Height 13.00mm, Pin Length 3.00mm, Press-Fit

Documents:

3D Model

Drawing (PDF)

Agency Certification

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

Backplane Connectors

73780

Daughtercard, Mezzanine

Press-Fit Tail

PCB Receptacle

HDM® Backplane Connector System

HDM

800753197268

120

Black

250

94V-0

None

Copper-Nickel-Tin

Gold

Tin-Lead

High Temperature Thermoplastic

Open Pin Field

Vertical

3.00mm

None

1.60mm

Tube

2.00mm

0.762µm

0.889µm

Yes

-55°C to +105°C

Through Hole - Compliant Pin

1.0A

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Search Parts in this Series

73780 Series

Mates With

HDM Board-to-Board Backplane Header

73642 , 73643 , 73644 , 73942 , 73943 ,

73944 , 7 4349, 74428. HDM Board-to-

Board Stacking Header 73769 , 73770 ,

73782 , 73783 , 73771
