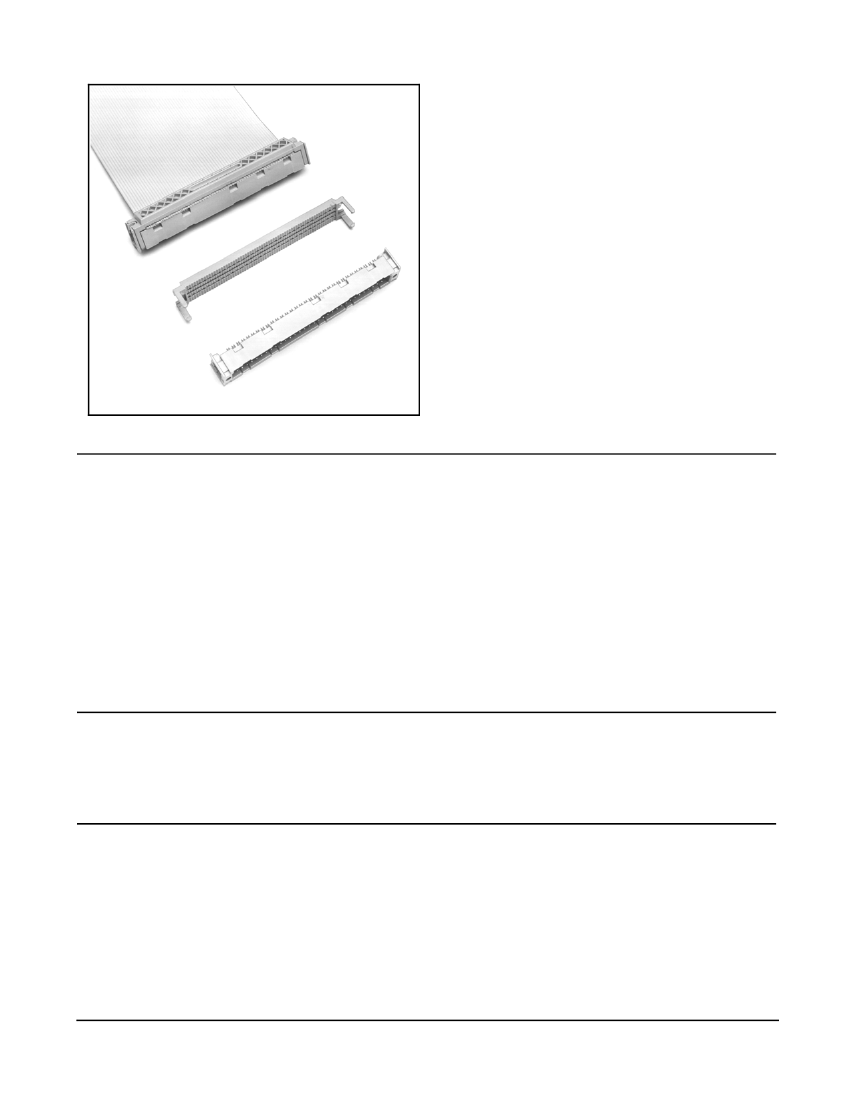

3M
™
Europlug
.100″
×
.200″ IDC Version, Type C (Rows A & C Filled)
•
•
•
•
•
3695 Series
DIN 41612 compatible
High density (64 position)
Mates with DIN 41612 Type C sockets
Accepts 3435-1 keying plug system
Can be daisy-chained or end terminated to
flat cable
• Mounting holes for securing europlug to board
• See Regulatory Information Appendix (RIA)
for chemical compliance information
Date Modified: April 12, 2007
TS-0187-14
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating:
Underplating:
Wiping Area:
Wire Accommodation:
Marking:
Glass Filled Polyester (PBT)
UL 94V-0
Gray
Copper Alloy
50
μ″
[ 1.27
μm
] Nickel
30
μ″
[ 0.76
μm
] Gold
Stranded or Solid:26 & 28 AWG, Solid:30 AWG
3M Logo Part Identification Number
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
12
Ω
at 500 V
DC
Withstanding Voltage:
1000 V
AC
at Sea Level
Environmental
Temperature Rating:
-55°C to +125°C
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Europlug
.100″
×
.200″ IDC Version, Type C (Rows A & C Filled)
3695 Series

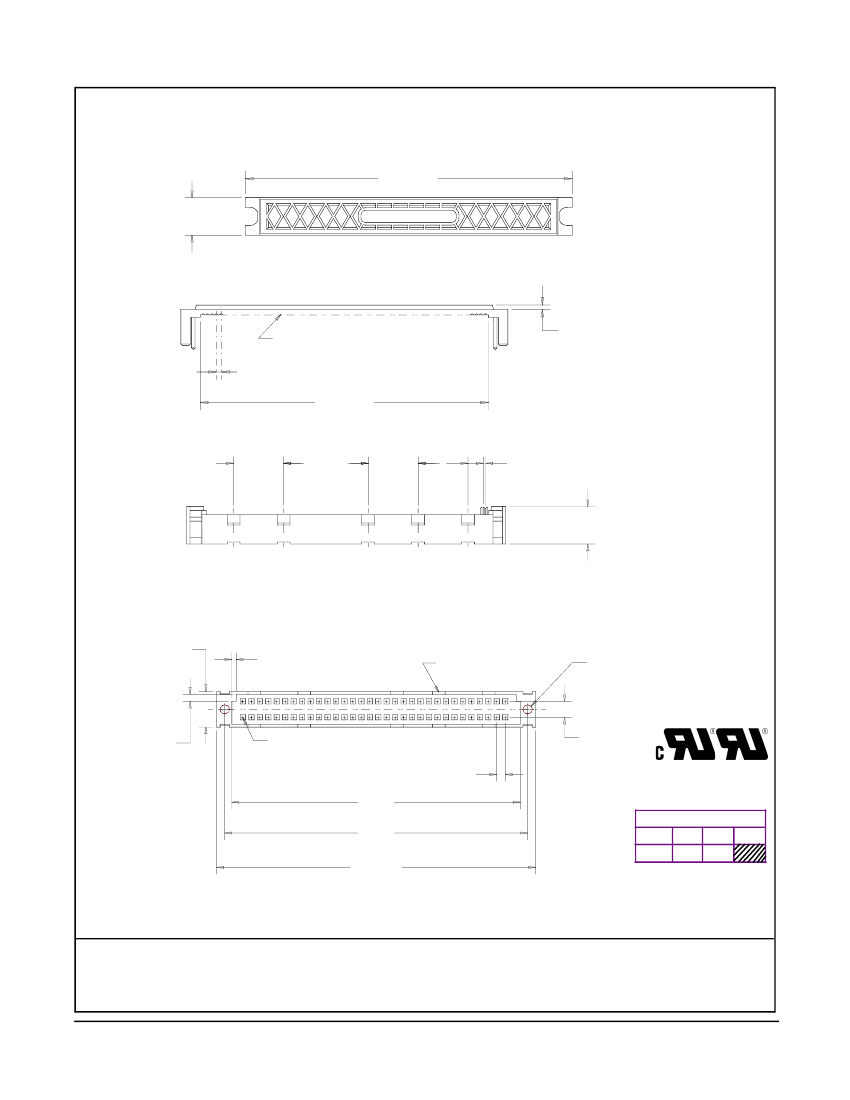

92.8
[ 3.65 ]
11.10
[ .437 ]
3M NO. 3695
Nonconductive Transfer
Adhesive with Liner
1.27
Ref
[ .050 ]
81.8
[ 3.22 ]
2.54
[ .100 ]
15.24
[ .600 ]
25.40
[ 1.000 ]
15.24
[ .600 ]
15.24
[ .600 ]
1.27 Ref
[ .050 ]
11.6
[ .46 ]
11.1
[ .44 ]
1.00
±
0.10
[ .040 ]
Breakout for
Keying Plug (10)
2.8 Dia
[ .11 ]
2.5
[ 0.1 ]
This contact is terminated
to the first conductor
of the ribbon cable
5.08
[ .200 ]
2.54 Ref
[ .100 ]
mm
[Inch]
Tolerance Unless Noted
.00
.0
±
.3
±
.13
.000
85.2
[ 3.35 ]
90.0
[ 3.54 ]
mm
95.0
[ 3.74 ]
[ ] Dimensions for
Reference only
Ordering Information
Europlug
3695-0000
3M
Interconnect Solutions
http://www.3M.com/interconnects/
(RIA E1 & C1 apply)
TS-0187-14
Sheet 2 of 2
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
