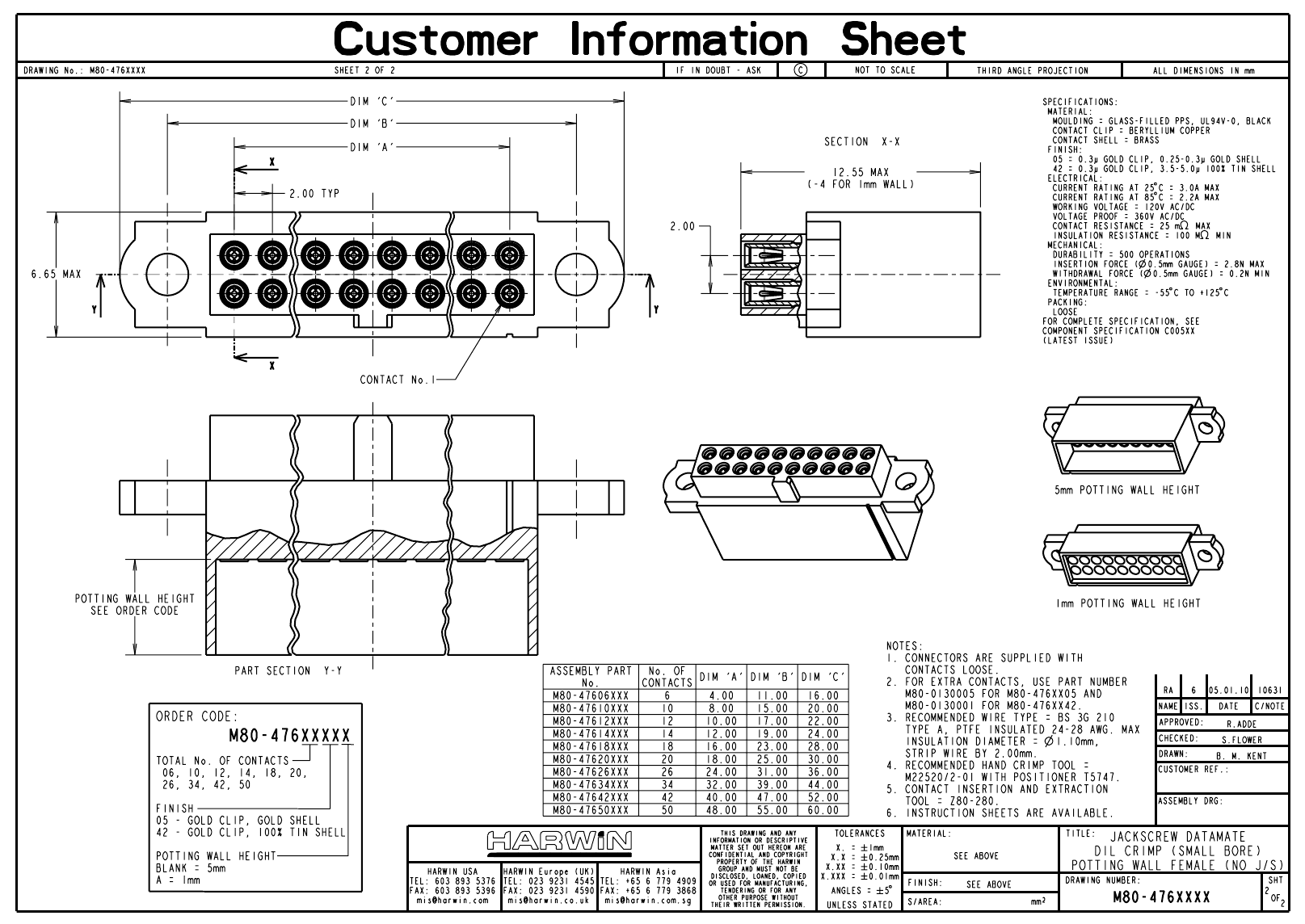

M80-4763442: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size192KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-4763442 Overview

Board Connector, 34 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE

M80-4763442 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARISED
body width	0.262 inch
subject depth	0.5 inch
body length	1.732 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	LOOSE
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

M80-4763442 Related Products

	M80-4763442	M80-4761042	WCCC2018870AB	M80-4761442	M80-4762042	M80-4762642	M80-4764242	M80-4765042
Description	Board Connector, 34 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE	Board Connector, 10 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE	RES NET,THIN FILM,887 OHMS,200WV,.1% +/-TOL,-50,50PPM TC,1010 CASE	Board Connector, 14 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE	Board Connector, 20 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE	Board Connector, 26 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE	Board Connector, 42 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE	Board Connector, 50 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	SMT, 1010	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant	compliant	compliant
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Guideline	UL	UL	MIL-STD-883	UL	UL	UL	UL	UL
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	-	Harwin	Harwin	Harwin	Harwin	Harwin
ECCN code	EAR99	EAR99	EAR99	-	EAR99	-	EAR99	EAR99
Other features	POLARISED	POLARISED	-	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED
body width	0.262 inch	0.262 inch	-	0.262 inch	0.262 inch	0.262 inch	0.262 inch	0.262 inch
subject depth	0.5 inch	0.5 inch	-	0.5 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch
body length	1.732 inch	0.787 inch	-	0.945 inch	1.181 inch	1.417 inch	2.047 inch	2.362 inch
Body/casing type	PLUG	PLUG	-	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	LOOSE	LOOSE	-	LOOSE	LOOSE	LOOSE	LOOSE	LOOSE
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	-	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	-	NO	NO	NO	NO	NO
Durability	500 Cycles	500 Cycles	-	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	-	NO	NO	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	-	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	-	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	-	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3	e3	-	e3	e3	e3	e3	e3
MIL compliance	NO	NO	-	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	-	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	JACKSCREW	JACKSCREW	-	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW
Installation type	CABLE	CABLE	-	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	-	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	12u inch	12u inch	-	12u inch	12u inch	12u inch	12u inch	12u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	-	3 A	3 A	3 A	3 A	3 A
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	-	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	34	10	-	14	20	26	42	50
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0	94V-0	94V-0	94V-0
