Part Number

Search

3-102277-2

Description
66 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector

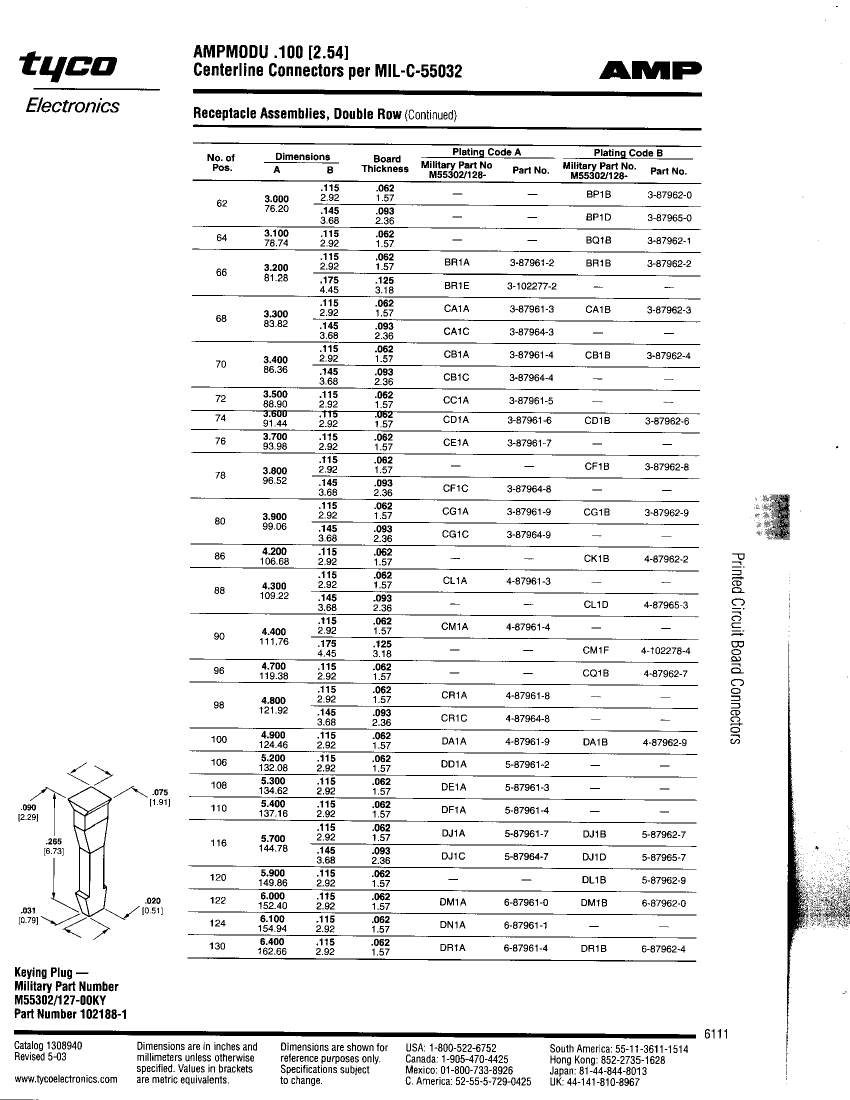

File Size36KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

3-102277-2 Overview

66 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

3-102277-2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresAMPMODU, RECEPTACLE
body width0.238 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedGOLD (50) OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage750VAC V
Filter functionNO
IEC complianceNO
maximum insertion force2.224 N
Insulation resistance5000000000 Ω
Insulator colorNATURAL
insulator materialPOLYPHENYLENE SULPHIDE
JESD-609 codee4
MIL complianceYES
Manufacturer's serial number102277
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing7.874 mm
Plating thicknessFLASH inch
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.175 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts66
UL Flammability Code94V-0
Evacuation force-minimum value.278 N
Base Number Matches1

3-102277-2 Related Products

3-102277-2 5-87962-7
Description 66 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER 116 MODII HORZ DR CE 100CL/115
Is it Rohs certified? incompatible conform to
Reach Compliance Code unknown compliant
ECCN code EAR99 EAR99
Other features AMPMODU, RECEPTACLE AMPMODU, RECEPTACLE
body width 0.238 inch 0.238 inch
Body/casing type PLUG RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (50) OVER NICKEL NOT SPECIFIED
Contact completed and terminated GOLD (50) OVER NICKEL Nickel (Ni)
Contact point gender FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR
Contact resistance 12 mΩ 12 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 750VAC V 1050VAC V
Filter function NO NO
IEC compliance NO NO
maximum insertion force 2.224 N 2.224 N
Insulation resistance 5000000000 Ω 5000000000 Ω
Insulator color NATURAL NATURAL
insulator material POLYPHENYLENE SULPHIDE POLYPHENYLENE SULFIDE
MIL compliance YES YES
Plug contact pitch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch
Mixed contacts NO NO
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -65 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 7.874 mm 7.874 mm
Plating thickness FLASH inch 50u inch
Guideline UL, CSA UL, CSA
Terminal length 0.175 inch 0.115 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 66 116
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .278 N .278 N
