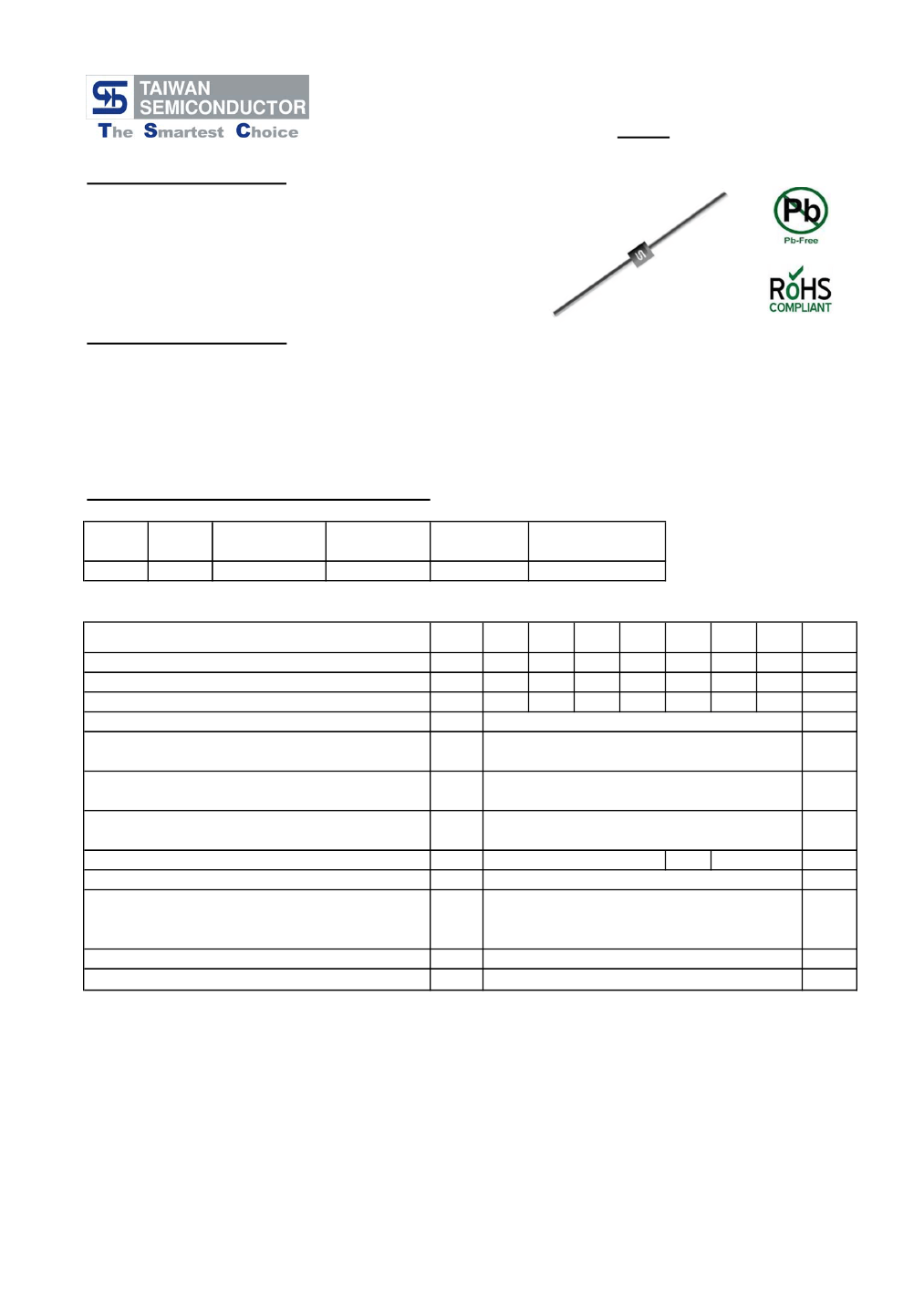

FR201 - FR207
2.0AMPS. Fast Recovery Rectifiers

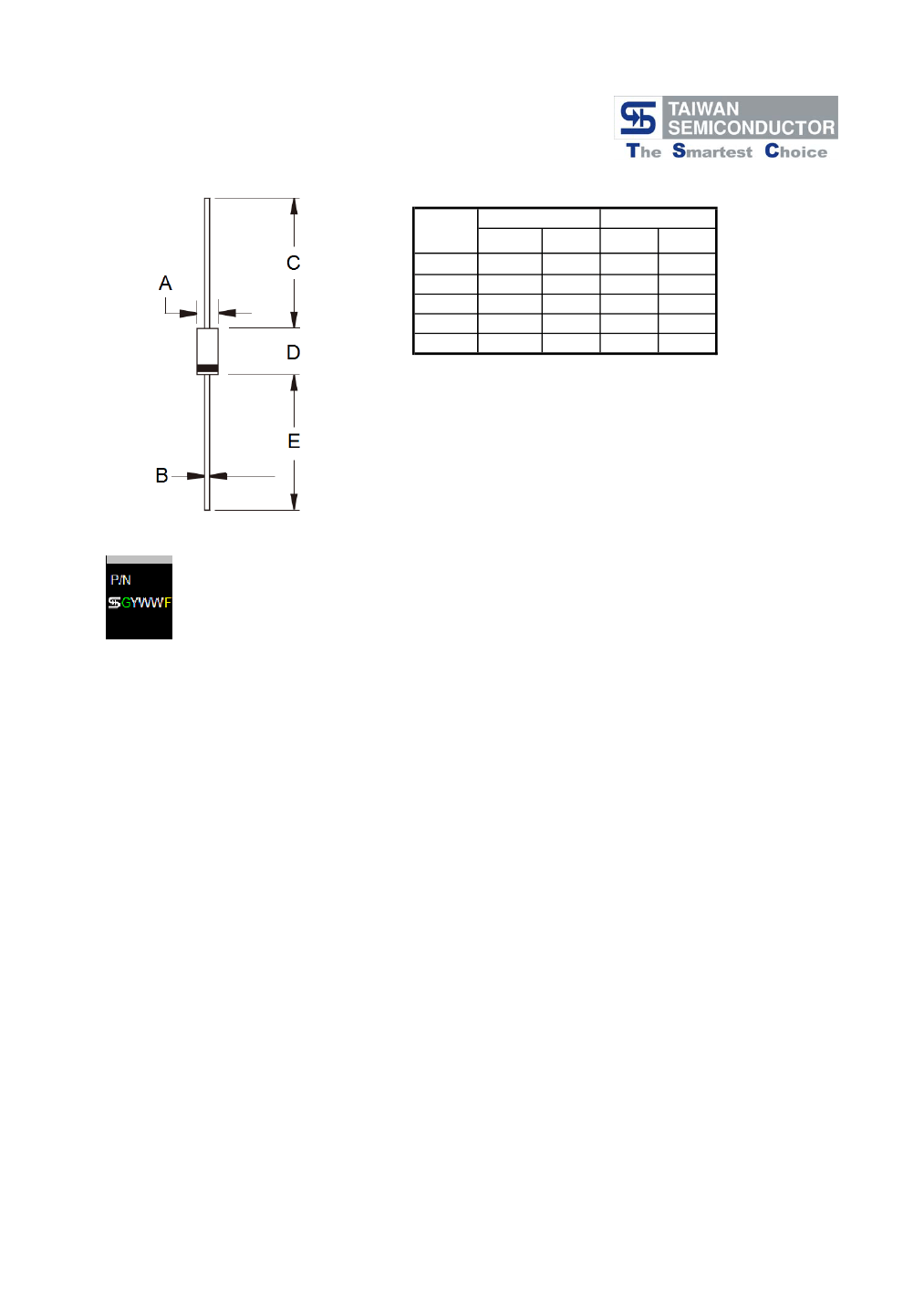

DO-15
Features
High efficiency, Low VF
High current capability
High reliability
High surge current capability
Low power loss
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode end
High temperature soldering guaranteed: 260℃/10s
Weight: 0.40 grams
Ordering Information (example)
Part No.
FR201
Package
DO-15

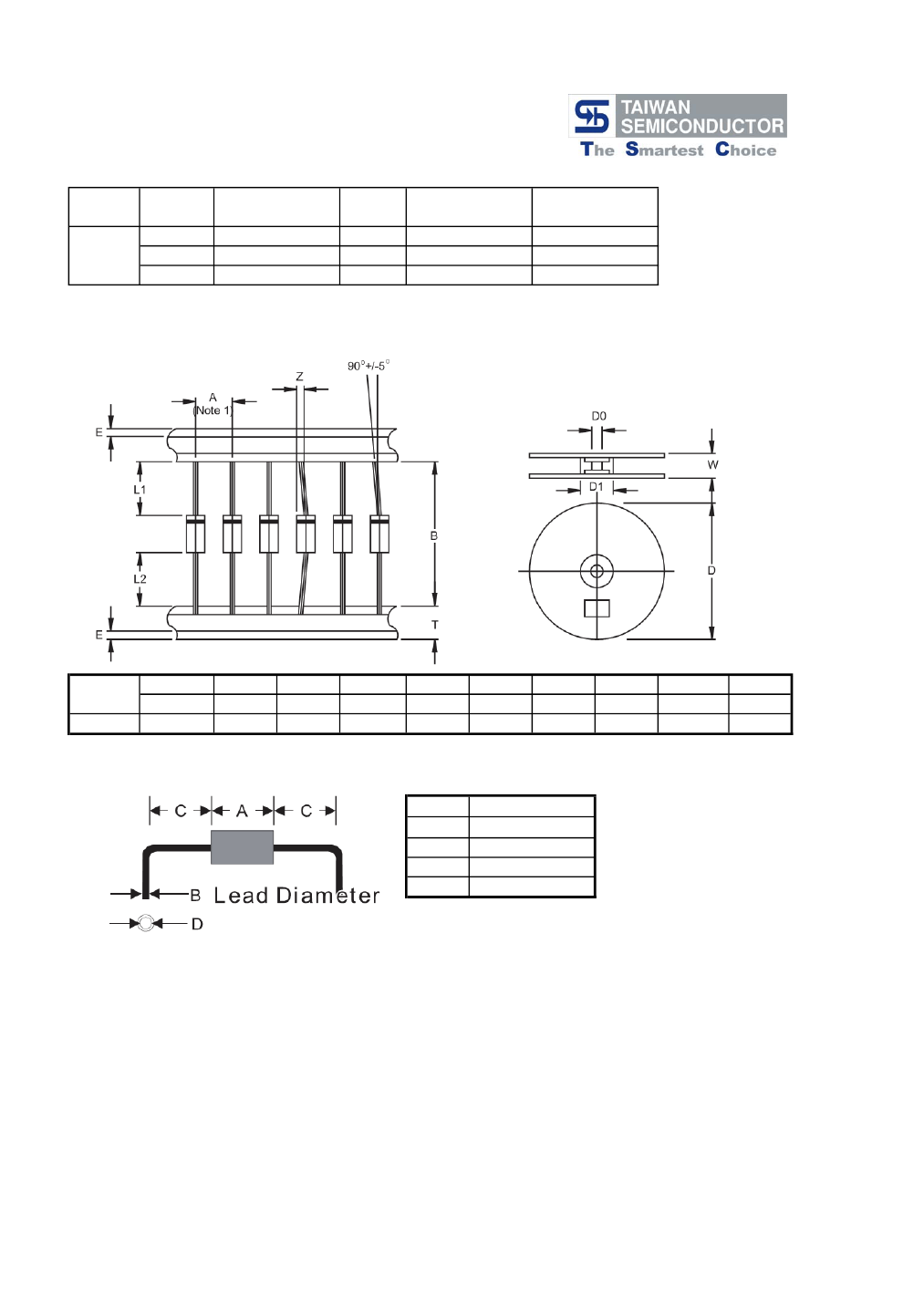

Packing
1.5K / AMMO box
INNER
TAPE
52mm
Packing code
A0
Packing code
(Green)
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@2A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
R
θJL
R
θJC
T
J
T
STG
FR
201
50
35
50
FR
202
100
70
100
FR
203
200
140
200
FR
204
400
280
400
2
60
1.2
5
150
FR
205
600
420
600
FR
206
800
560
800
FR
207
1000
700
1000
Units
V
V
V
A
A
V
uA
uA
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
150
30
60
18
5
250
500
nS
pF
O
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:E13

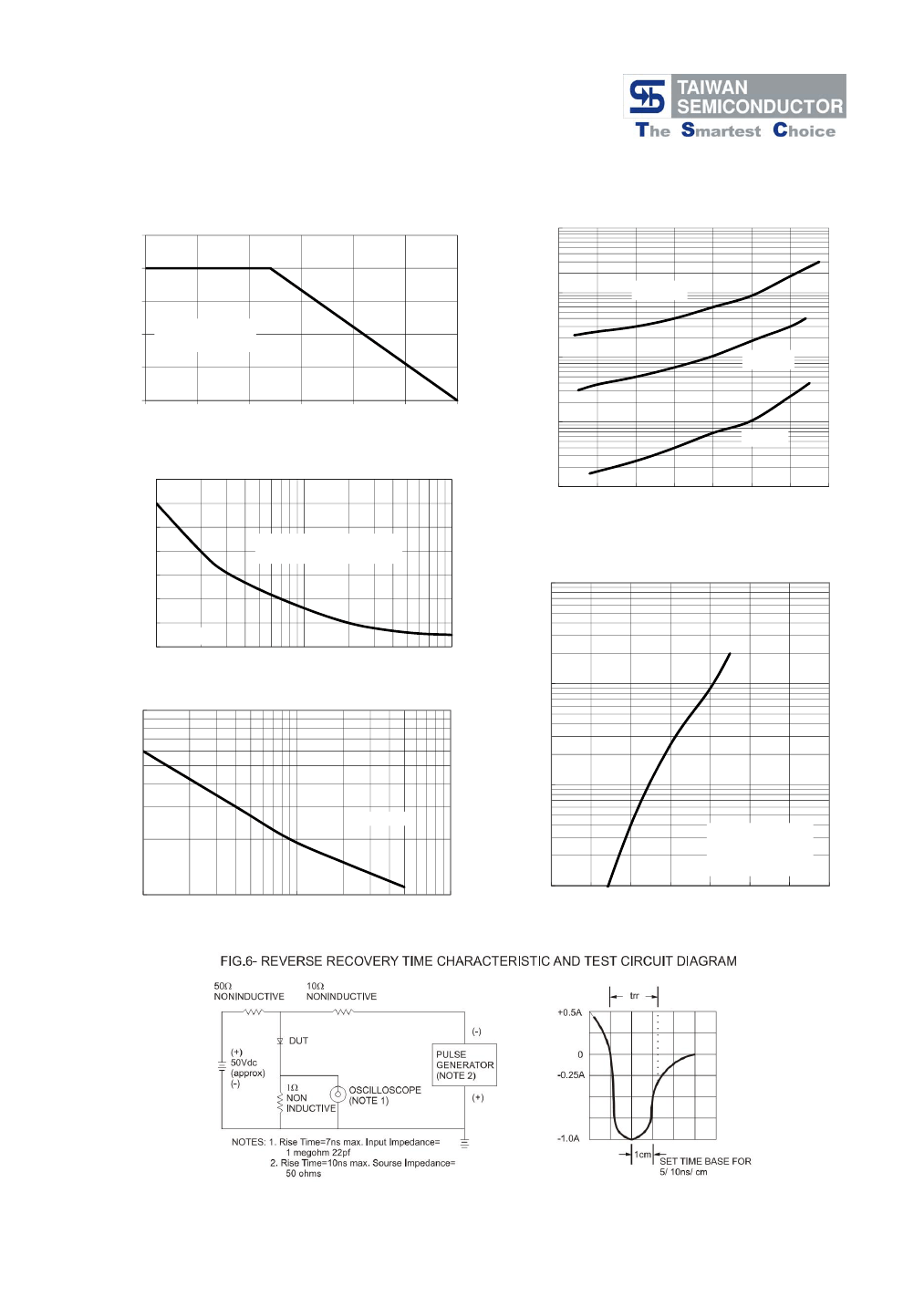

RATINGS AND CHARACTERISTIC CURVES (FR201 THRU FR207)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
2.5
AVERAGE FORWARD CURRENT (A)
2
1.5
1
0.5
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVE LOAD
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
INSTANTANEOUS REVERSE CURRENT (uA)
100
TA=125℃
10
TA=75℃
1
TA=25℃
70
60
FIG. 3- MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE
CURRENT (A)
50
40
30
20
10
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT (A)
0
TA=25℃
8.3mS Single Half Sine Wave
JEDEC Method
100
FIG. 5- TYPICAL FORWARD CHARACTERISTICS
FIG. 4- TYPICAL JUNCTION CAPACITANCE
100
10
JUNCTION CAPACITANCE (pF)
1
TA=25℃
TA=25℃
Pulse Width=300us
1% Duty Cycle
0.1
10
1
10
REVERSE VOLTAGE (V)
100
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Version:E13
