6821-4803: DescriptionTelecom and Datacom Connector, 24 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

6821-4803 Overview

Telecom and Datacom Connector, 24 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

6821-4803 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	0.571 inch
subject depth	0.512 inch
body length	1.474 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	6821
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	3
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

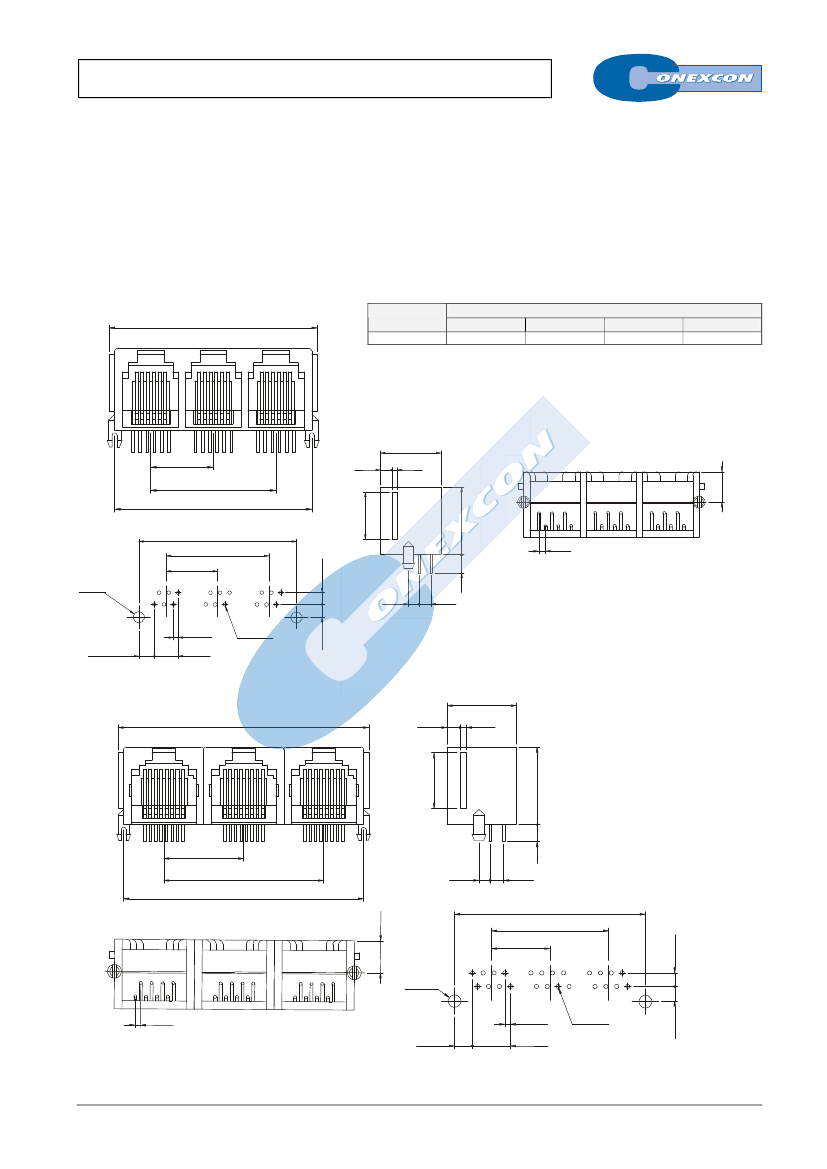

MULTI-PORT SIDE ENTRY PCB JACK FCC-68

6821 SERIES.

For PCB Solder. Multi-Port Side Entry PCB Jack

Features



Available in 6/2, 6/4, 6/6 and 8/8 circuits

Mates with FCC-68 modular plugs

Insulator Material: Glass filled polyester UL 94V-0

Contacts: Golden phosphor bronze 0.45mm diameter

Different plating options are available



Gold plating over nickel in Contact Area.

Tin plating over nickel in Solder Area

Insulation resistance: 10 M to 500 V AC

Contact resistance: 20m max.

The number of ports is according to customer specifications

Ordering and Dimensional Information

Dimensional Information

B±0.30

Ports Number

XX

Type

6/2 Version

6821 –

T2XX

6/4 Version

6820 –

T4XX

6/6 Version

6820 –

T6XX

8/8 Version

6820 –

T8XX

T = Contact Plating

13.0

11.65

.459

TYP.

A±0.20

C±0.20

2.20

.087

.512

1.22

.048



T =

4.

6µ” gold over 50µ” nickel

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

T =

7.

50µ” gold over 50µ” nickel

6.00

.236

10.5

.413

C±0.2

A±0.2

2.54±0.05

11.65±0.05

TYP.2

Ø2.40±0.10

.095±.004

.459±.002

.100±.002

14.5

.571

1.020

.040

2.30

.091

2.54

.100

.126

3.2

DIMENSIONS

A

= 11.65 x (P-1)

B

= 11.65 x P+2.50

C

= 11.65 x P+0.50

P = Number of ports (From 2 ports)

2.30±0.05

1.02±0.05

.040±.002

3.525±0.05

.139±.002

5.10±0.05

.201±.002

Ø0.80±0.05

.031±.002

TYP.

Recommended P.C. Board Layout

13.0

.512

B±0.30

2.20

.087

1.22

.048

.091±.002

DIMENSIONS

10.5

.413

14.5

.571

A

= 14.50 x (P-1)

B

= 14.50 x P+3.00

C

= 14.50 x P+0.50

P = Number of ports (From 2 ports)

.571

A±0.20

C±0.20

TYP.

2.30

.091

2.54

.100

C±0.2

6.00

.236

A±0.2

2.54±0.05

2.30±0.05

Ø0.80±0.05

.031±.002

14.50±0.05

.571±.002

.100±.002

.091±.002

ØC2.40±0.10

.095±.004

1.020

TYP.

.040

1.02±0.05

.040±.002

3.93±0.05

.155±.002

7.14±0.05

.281±.002

MECANIZADO RECOMENDADO

FULL LINE CATALOGUE

.126

3.2

14.50

I-XX
