56-404001 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 56-404001

Preview

56-404001: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size23KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

56-404001 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,

56-404001 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHIELDED
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (100)
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

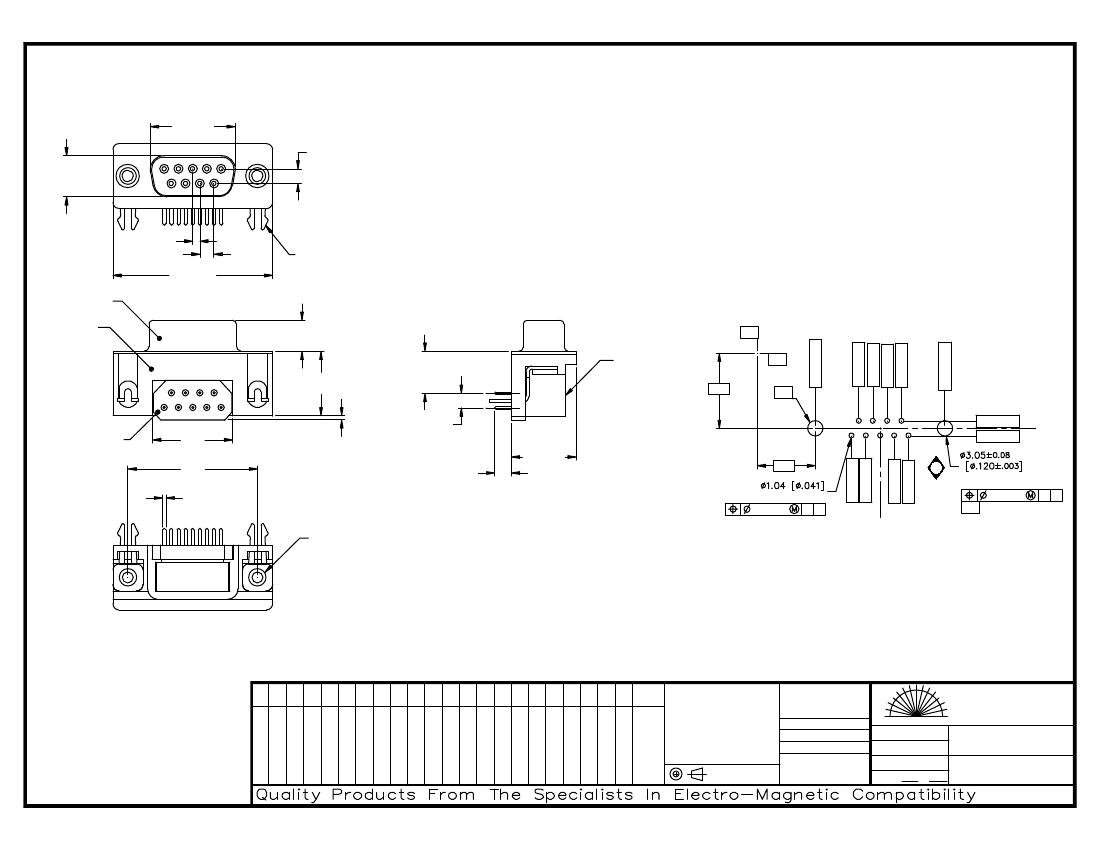

16.33

±0.25

[.643

±.010

]

2.84 [.112]

7.90

[.311]

1.37 [.054]

2.74

[.108]

30.81

±0.38

[1.213

±.015

]

FRONT SHELL

HOUSING

6.00

±0.25

[.236

±.010

]

8.08

[.318]

SEE

NOTE 4

BOARDLOCKS

2 PLCS.

NOTES:

1. MATERIAL

HOUSING : PBT, GLASS FILLED, UL RATED 94V-0, BLACK

FRONT SHELL: CARBON STEEL

CONTACTS, BOARDLOCKS AND INSERTS: BRASS

2. FINISH

FRONT SHELL: TIN PLATED.

CONTACTS: GOLD FLASH IN MATING AREA OVER 2.54 um [.000100] MIN

NICKEL ON ENTIRE CONTACT AREA.

TIN PLATING ON SOLDER TAILS,

BOARDLOCKS AND INSERTS: TIN PLATED

3. ELECTRICAL SPECIFICATION:

17-30 OHMS AT 30 MHz. TYP.

22-37 OHMS AT 50 MHz. TYP.

29-40 OHMS AT 100 MHz. TYP.

4. SCI, 56-404-001 AND DATE CODE MARKED ON THIS SURFACE.

-X-

12.50 [.492]

-Y-

BSC

12.50 [.492]

4.11 [.162]

1.37 [.054]

4.11 [.162]

12.40

[.488]

-B-

1.42 [.056]

5.49 [.216]

2.74 [.108]

FERRITE

15.40

[.606]

25.00

[.984]

Ø0.64

[.025]

2.84

[.112]

.80 [.031]

5.49 [.216]

3.18

±0.38

[.125

±.015

]

12.55

±0.25

[.494

±.010

]

BSC

0

06

2 PLCS.

0.10[.004]

-A-

X Y

9 PLCS.

0.10[.004]

X Y

THREADED INSERT

#4-40 UNC

2 PLCS.

P.C. BOARD MOUNTING DIMENSIONS

REV.

CHANGE NOTICE NO.

CN 36554-ENG

CN 34916-CPD

UNLESS OTHERWISE

SPECIFIED

DIMENSIONS ARE

IN MILLIMETERS.

[INCHES]

DO NOT SCALE.

THIRD ANGLE

PROJECTION

TOLERANCES UNLESS

OTHERWISE SPECIFIED

06

05

04

0

FAIRVIEW

CN 99146

Dec. .x ± 0.3 [.012]

PENNSYLVANIA

SPECTRUM CONTROL INC.

Dec. .xx ± 0.13 [.005]

Dwn.

P. Wells

Dec. .xxx ±

RECEPTACLE ASSEMBLY

Angles ±

9 POSITION, RIGHT ANGLE

Date

8-16-07

CODE IDENT. NO.

0LSP2

Engr.

Sheet

D. Henry

1

of

1

56-404-001
