354329 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 354329

354329: DescriptionDIN 41612 Connectors 48P 2.54MM RA MALE TYPE C/2 3MM PRESS; CategoryThe connector The connector; File Size51KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354329 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354329	-	-	View	Buy Now

354329 Overview

DIN 41612 Connectors 48P 2.54MM RA MALE TYPE C/2 3MM PRESS

354329 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.437 inch
body length	1.85 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

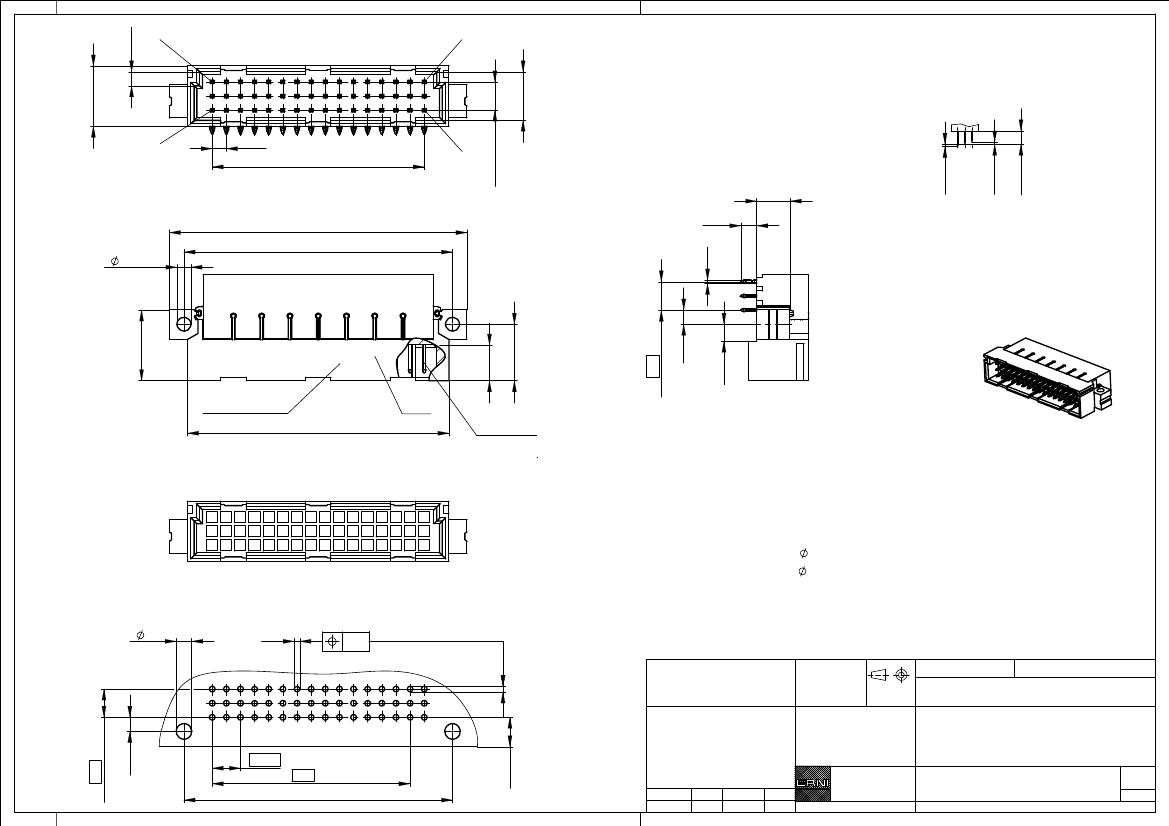

2,5

-0,2

c16

11,1 max.

8,7

+0,1

Stecklänge / mating length

ESL

a16

2,54

15x2,54=38,1

2x2,54=5,08

±0,1

53,9 max.

2,5

+0,1

-0,4

0,6

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

48,26

2 x 2,54 =5,08

12,7

10,2

-0,2

6,4

-0,1

ERNI

Anforderungsstufe

class

Datum

date

Stecklänge

mating length

Elastische Einpresszone /

compliant pressfit zone

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen

/ performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Bestückungsplan /

contact layout

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S

+0,1

XXXXXXX

RC 2

2,54

a b c

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Schichtaufbau im metallisierten Loch siehe Zeichnung 114214

diameter of drilled hole see drawing 114214

+0,09

1,0

-0,06

Durchmesser des metallisierten Loches

1,0

-0,06

Diameter of finished platet-through hole

Leiterplatten- Lochbild / PCB drillhole pattern

2,8

+0,1

+0,09

0,05

alle Löcher /

Berduckung siehe Zeichnung 294905

all holes

marking see drawing 294905

Information:

Tolerances

All Dimensions

in mm

2 x 2,54 (=5,08)

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

5,3

±0,1

5,08

7 x 5,08 =35,56

48,26

Proprietary notice pursuant to ISO 16016 to be observed.

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

16.09.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste C/2 48 EE

Male Con.C/2 48 EE

www.ERNI.com

Class

354329

STVC/2

4,8

±0,2

0,8

±0,1

0,8

±0,1
