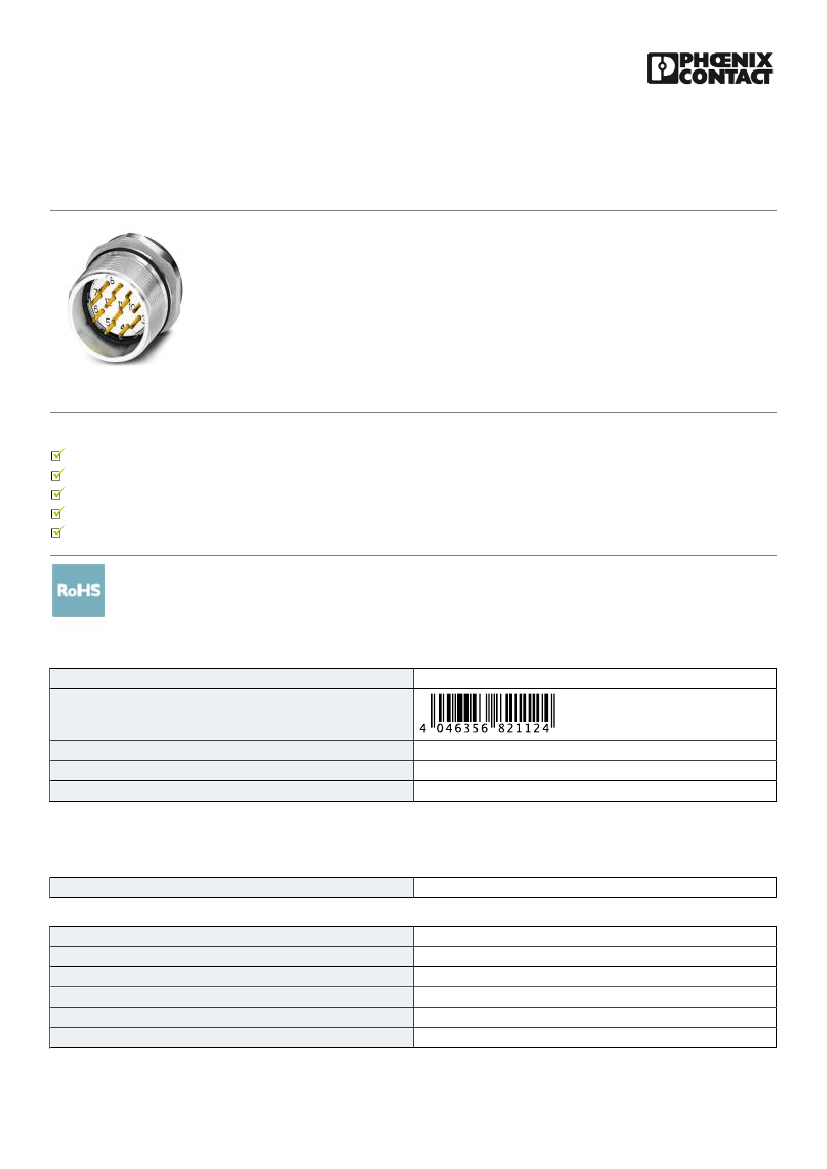

Device connector, front mounting - CA-17P1N8A6Y00 - 1619854
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Device connector for front wall, straight, shielded: yes, SPEEDCON locking, M23, Number of positions: 17,
Type of contact: Male connector, Crimp connection, Seal, axial, Central fastening M20 x 1.5
The figure shows the 12-pos.
product version
Why buy this product
Safe use in the field, thanks to high degree of protection
Connector for flexible on-site assembly
Consistent EMC protection for reliable transmission of signals
Crimping connection: vibration- and temperature-resistant assembly
Application-specific wall mounting optionally with thread or anti-rotation protection and lock nut
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356821124
85366990
Made to Order (non-returnable)
1 STK
Technical data
Temperature range
Ambient temperature (operation)
-40 °C ... 125 °C
Data of the insulating body
Note
Coding
Insulator material
Contact connection method
Type of contacts
Number of positions
Order information: Order crimp contacts Ø 1 mm separately
N
PA 66
Crimp connection
Male connector
17
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1619854
Device connector, front mounting - CA-17P1N8A6Y00 - 1619854
Technical data
Data of the insulating body
Contact diameter of power contacts
Nominal current per power contact at 25°C
Nominal voltage, power contact
Rated surge voltage
Overvoltage category
Degree of pollution
1 mm
8A
150 V
1.5 kV
II
3
Housing data
Housing material
Type of locking
Degree of protection (when plugged in)
Thread type
CuZN
SPEEDCON locking
IP67
M23
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
N
X
11
12
1
Dimensional drawing
20,3
6
3
Y
Dimensional drawing
Installation dimensions
Approvals
Approvals
11/14/2016 Page 2 / 3
M20x1,5
M23x1
Ø25,9
2
10 16
13
3
9
15 17 14
4
8
7
5
6
https://www.phoenixcontact.com/hq/products/1619854
Device connector, front mounting - CA-17P1N8A6Y00 - 1619854
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC B.01742
