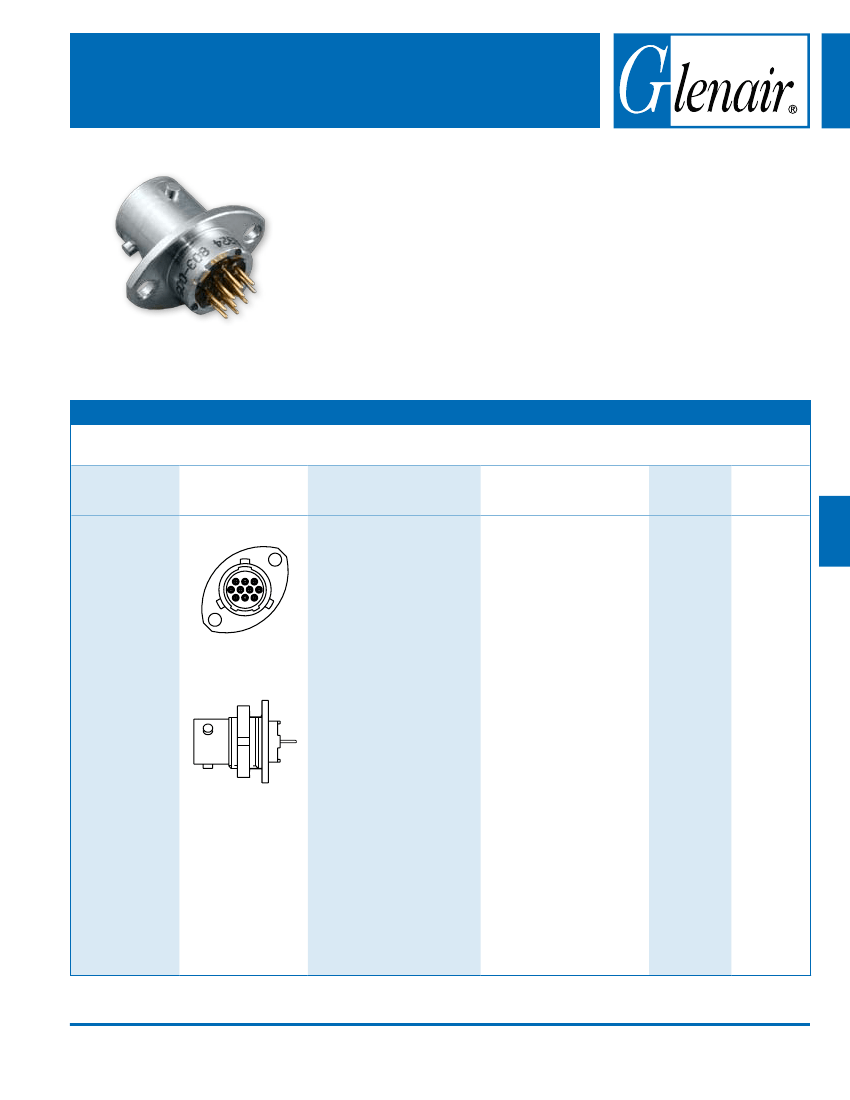

803-005, 803-015
Printed Circuit Board/ Solder Cup Receptacles
feature low profile shells for minimum
protrusion inside enclosures and integral standoffs for board washout. Contacts are
non-removable.
IWater Immersion, Unmated
Specify
803-005
connectors for applications where open face water immersion
is not a requirement. For MIL-STD-810 Method 512G immersion requirements,
specify
803-015
watertight connectors . These 803-015 connectors are specially
sealed (“MOD-518”) and are 100% tested to maintain a helium leak rate of 1
x 10
-4
cc/second at one atmosphere pressure differential from -40C to +70C.
NOTE: mated connectors are not submersible.
Series 803 Printed
Circuit Board Receptacle
HOW TO ORDER SERIES 803 PRINTED CIRCUIT BOARD RECEPTACLES
803-005
Series
803-005
-07
Shell Style
Sample Part Number
ZN
6–7
Shell Size- Insert
Arrangement
SEE
S
Contact
Type
P
N
Shell Key
Position
N
Shell Material / Finish
Aluminum / Black Anodize
(Non-Conductive)
RoHS Compliant
Aluminum / Electroless Nickel
RoHS Compliant
C
F
Receptacle for
Solder Cup or
PCB Termination,
with Standard
Epoxy Potting
Flange Mount
CONTACT
ARRANGEMENTS
PAGE F-2
Pin,
PC Tail
M
- 02
Receptacle for
Solder Cup or
PCB Termination,
With Resilient
Silicone Potting
For Watertight
Seal from -40°
to +70°C (15
PSI Pressure
Differential)
803-015
Aluminum / Cadmium with Olive
Drab Chromate
Aluminum / Zinc-Nickel with
Olive Drab Chromate
Aluminum / Zinc-Nickel with
Black Chromate
NF
Socket,
PC Tail
S
Normal
Alternative
Key
Positions:
ZN
Pin,
Solder Cup
E
X
Y
Z
ZNU
MT
Z1
Jam Nut
- 07
Socket,
Solder Cup
F
Aluminum / Nickel-PTFE
RoHS Compliant
Stainless Steel / Passivated
RoHS Compliant
© 2010 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
F-11
01-JANUARY-2010
Series 803
Series 803 Mighty Mouse ¼ Turn Bayonet Coupling
PCB Connector Ordering Information
Series 803 Mighty Mouse ¼ Turn Bayonet Coupling

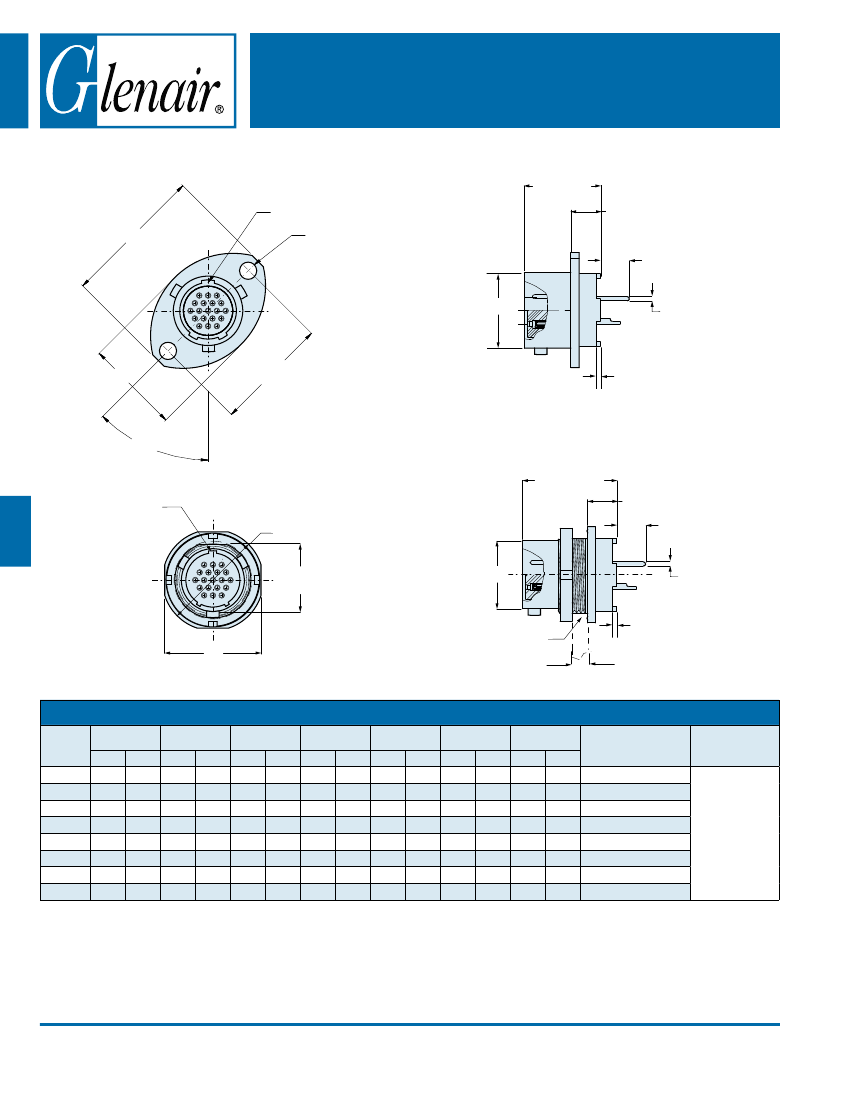

Flange Mount and Jam Nut Receptacle Dimensions
803-005 and 803-015
A
MASTER
KEYWAY
B
F
G
J
K
L
Shell
Size
5
6
7
8
9
10
12
14
M
© 2010 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
Series 803
A MAX
C REF
45º
MASTER
KEYWAY
E
FLATS TYP
.700 (17.78)
MAX
.260 (6.60)
.110/.103
(2.79/2.62)
2 PLCS
.125 (3.18) MIN
Flange Mount
Receptacle
803-005-02
ØD
ØJ
B BSC
4 X .025 (0.64)
STANDOFF
.860 (21.84)
MAX
ØG
F
FLAT
.260 (6.60)
.125 (3.18) MIN
Jam Nut
Receptacle
803-005-07
ØD
ØJ
H THREAD
4 X .025 (0.64)
STANDOFF
.100 (2.54) MAX
PANEL THICKNESS
DIMENSIoNS
A Max.
In.
mm.
.703 17.86
.788 20.02
B Bsc.
In.
mm.
.513 13.03
.598 15.19
C Ref.
In.
mm.
.460 11.68
.522 13.26
.590 14.99
.668 16.97
.721 18.31
ØD
In.
mm.
.300 7.62
.362 9.19
.436 11.07
.508 12.91
.561 14.25
E Flats
In.
mm.
.545 13.84
.595 15.11
.723 18.36
.790 18.36
.790 20.07
F Flat
In.
mm.
.350 8.89
.410 10.42
.536 13.61
.593 14.53
.596 15.14
ØG
In.
mm.
.575 14.61
.635 16.13
.755 19.18
.755 19.18
.830 21.08
H Thread
.3750-32 UNEF-2A
.4375-28 UNEF-2A
.5625-32 UN-2A
.6250-28 UN-2A
.6250-28 UN-2A
ØJ
Tail Dia.
#23
.018/.022
(0.46/0.56)
#20
.024/.028
(0.61/0.71)
#16
.060/.064
(1.52/1.63)
#12
.092/.096
(2.34/2.44)
.890 22.61 .708 17.98
1.154 29.31 .964 24.49
1.207 30.66 1.017 25.83
1.291 32.79 1.101 27.97 .795 20.19
1.394 35.41 1.204 30.58 .874 22.20
1.545 39.24 1.280 32.51 1.050 26.67
.635 16.13 .925 21.72 .721 18.31 .890 22.61 .7500-28 UN-2A
.714 18.14 1.044 26.52 .845 21.46 1.078 27.38 .8750-28 UN-2A
.865 21.97 1.230 31.24 1.022 25.96 1.264 32.11 1.0625-20 UN-2A
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
28-AUGUST-2012
F-12
E-Mail: sales@glenair.com
