Part Number

Search

39-01-4052

Description
Headers u0026 Wire Housings SOCKET 24-18AWG BULK
CategoryThe connector    The connector
File Size26KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

39-01-4052 Online Shopping

Suppliers Part Number Price MOQ In stock
39-01-4052 - - View Buy Now

39-01-4052 Overview

Headers u0026 Wire Housings SOCKET 24-18AWG BULK

39-01-4052 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time7 weeks
Is SamacsysN
Other featuresPANEL MOUNTABLE
body width0.213 inch
subject depth0.941 inch
body length5 inch
Body/casing typePLUG
Connector typeRECTANGULAR POWER CONNECTOR
Contact arrangementS0P5
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage2200VAC V
Durability30 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force6.672 N
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialNYLON
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typePANEL
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
GuidelineUL
reliabilityCOMMERCIAL
Shell materialPOLYAMIDE66
Termination typeCRIMP
Total number of contacts5
UL Flammability Code94V-2
Evacuation force-minimum value.5004 N
Base Number Matches1

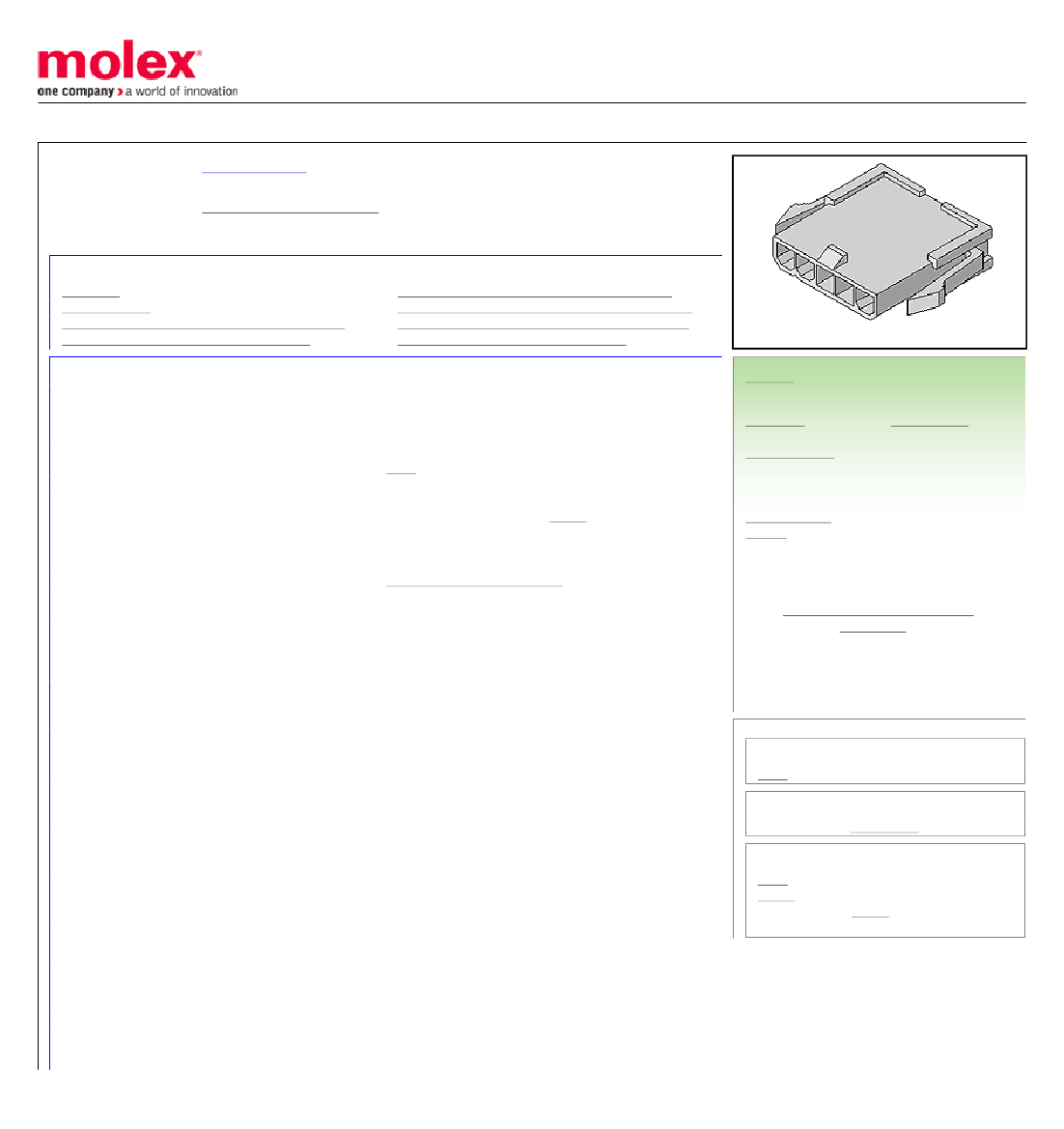

This document was generated on 11/10/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0039014052
Active
Mini-Fit Jr. Power Connectors
Mini-Fit Jr. Plug Housing, Single Row, 5 Circuits, UL 94V-2, with Panel Mounting Ears,
Natural
Documents:
3D Model
Drawing (PDF)
Product Specification PS-45750-001-001 (PDF)
Product Specification PS-5556-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Product Specification TS-5556-002-001 (PDF)
Application Specification AS-5557-001-001 (PDF)
Packaging Specification PK-5559-003-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
LR19980
E29179
Crimp Housings
5559
Power, Wire-to-Board, Wire-to-Wire
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 series terminals
crimped to 16 AWG wire. . See Molex product
specification PS-45750-001 for additional current
derating information.
Mini-Fit Jr. Power Connectors
Mini-Fit Jr.
800753535565
No
5
Natural
94V-2
Plug
No
None
Yes
Nylon
2.068/g
1
Bag
Yes
4.20mm
4.20mm
Yes
No
-40°C to +105°C
13.0A
N/A
5559-05P2
Overview
Product Name
UPC
Physical
Breakaway
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Electrical
Current - Maximum per Contact
Solder Process Data
Lead-freeProcess Capability
Material Info
Engineering Number
Search Parts in this Series
5559 Series
Mates With
Crimp Housing 39-01-4050
Use With
5558 Mini-Fit Jr. Male Crimp Terminals.
30490 Mini-Fit Male Grounding Crimp
Terminals <br> 46012 Mini-Fit Plus Crimp
Terminal
