DATA SHEET
SURGE CHIP RESISTORS
AUTOMOTIVE GRADE
SR series
1%, 0.5%
sizes 0402/0603/0805/1206/1210/1218/2010/2512
RoHS compliant & Halogen free
Product specification – June 07, 2017 V.1
Product specification
2
9
Chip Resistor Surface Mount
SR
SERIES
0402/0603/0805/1206/1210/1218/2010/2512
SCOPE
This specification describes
SR0402 to SR2512 chip resistors
with lead-free terminations made by
thick film process.
APPLICATIONS
Telecommunications
ORDERING INFORMATION - GLOBAL PART NUMBER
Part number is identified by the series name, size, tolerance, packaging
type, temperature coefficient, taping reel and resistance value.
GLOBAL PART NUMBER
SR XXXX X X X XX XXXX L
(1)
(2) (3) (4)
(5)
(6)
(7)
(1) SIZE
0402 / 0603 / 0805 / 1206 / 1210 / 1218 / 2010 / 2512
Power supplies
Car electronics
(2) TOLERANCE
D = ± 0.5%
F = ± 1%
FEATURES
AEC-Q200 qualified
Superior to SR series in pulse
withstanding voltage and surge
withstanding voltage.
MSL class: MSL 1
Halogen free epoxy
RoHS compliant
-
(3) PACKAGING TYPE
R = Paper taping reel
K = Embossed taping reel
(4) TEMPERATURE COEFFICIENT OF RESISTANCE
–
= Based on spec.
(5) TAPING REEL
07 = 7 inch dia. Reel
13 = 13 inch dia. Reel
7W = 7 inch dia. Reel & 2 x standard power
7T = 7 inch dia. Reel & 3 x standard power
Products with lead-free
terminations meet RoHS
requirements
Pb-glass contained in electrodes,
resistor element and glass are
exempted by RoHS
(6) RESISTANCE VALUE
1
Ω
≤
R
≤
100 KΩ
There are 2~4 digits indicated the resistance value. Letter R/K/M is decimal point, no
need to mention the last zero after R/K/M, e.g.1K2, not 1K20.
Detailed coding rules of resistance are shown in the table of
“Resistance rule of
global part number”.
-
Reduce environmentally
hazardous waste
High component and equipment
reliability
(7) DEFAULT CODE
Letter L is the system default code for ordering only.
(Note)
Resistance rule of global part
number
Resistance coding
Example
rule
XRXX
(1 to 9.76
Ω)
XXRX
(10 to 97.6
Ω)
XXXR
(100 to 976
Ω)
XKXX
(1 to 9.76 KΩ)
XXKX
(10 to 97.6 KΩ)
XXXK
(100 KΩ)
Jun. 07, 2017 V.1
O
RDERING EXAMPLE
The ordering code for an SR0805
chip resistor, value 10 KΩ with
± 5% tolerance, supplied in 7-inch
tape reel is: SR0805JR-0710KL.
1R = 1
Ω
1R5 = 1.5
Ω
9R76 = 9.76
Ω
10R = 10
Ω
97R6 = 97.6
Ω
100R = 100
Ω
1K = 1,000
Ω
9K76 = 9760
Ω
10K = 10,000
Ω
97K6= 976,000
Ω
100K = 100,000
Ω
www.yageo.com
Product specification
3
9
Chip Resistor Surface Mount
SR
SERIES
0402/0603/0805/1206/1210/1218/2010/2512
MARKING
SR0402
No Marking
Fig. 1
SR1218
E-24 series: 3 digits
First two digits for significant figure and 3rd digit for number of zeros
Fig. 2
Value=10 KΩ
SR0603 / SR0805 / SR1206 / SR1210 / SR2010 / SR2512
03
Fig. 3
NOTE
E-24 series: 3 digits
First two digits for significant figure and 3rd digit for number of zeros
Value=10 KΩ
For further marking information, please refer to data sheet “Chip resistors marking”.
www.yageo.com
Jun. 07, 2017 V.1
Product specification
4
9
Chip Resistor Surface Mount
SR
SERIES
0402/0603/0805/1206/1210/1218/2010/2512

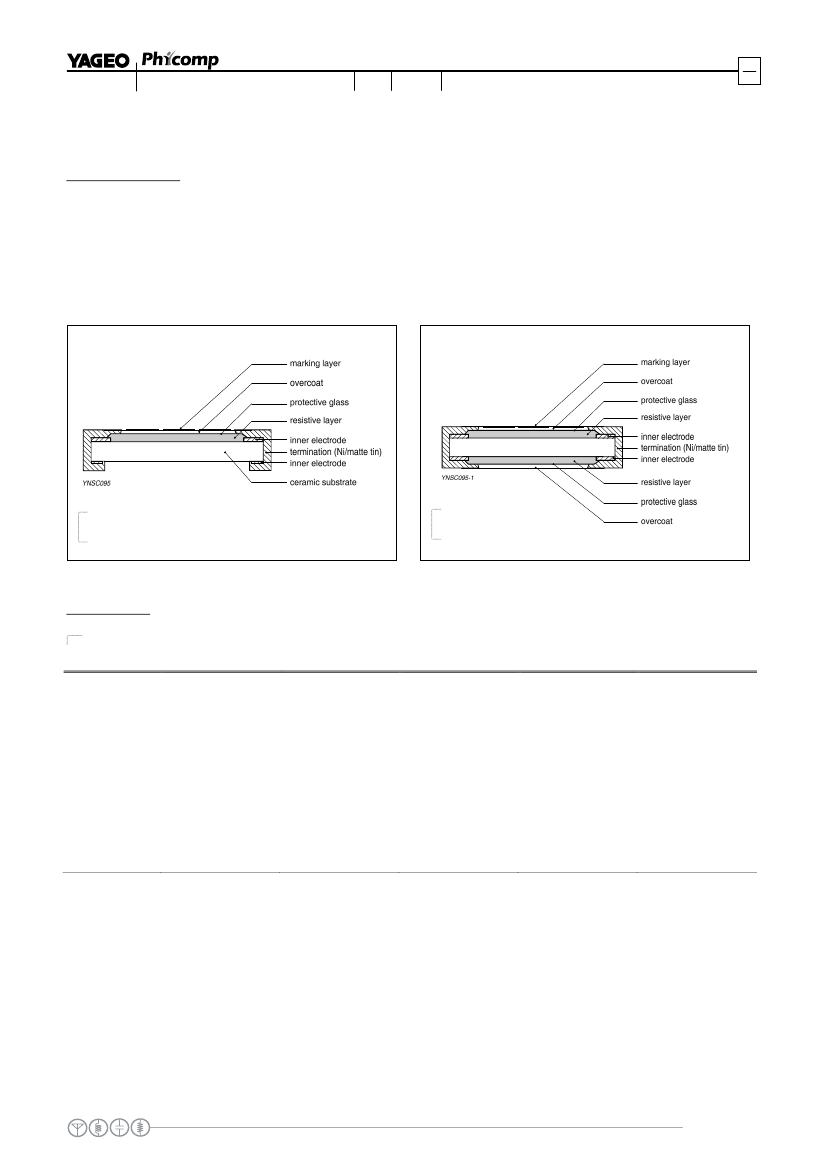

CONSTRUCTION
The resistor is constructed on top of a high-grade ceramic body. Internal metal electrodes are added at each
end and connected by a resistive glaze. The resistive glaze is covered by a lead -free glass. The composition of
the glaze is adjusted to give the approximately required resistance value. The whole element is covered by a
protective overcoat. The top of overcoat is marked with the resistance value. Finally, the two external
terminations (Ni/matte tin) are added, as shown in Fig.4.
OUTLINES
SR0402/0603/0805/1206/1210/1218/2010
SR2512
Fig. 4-1
Chip resistor outlines
Fig. 4-2
Chip resistor outlines
DIMENSIONS
Table 1
TYPE
SR0402
SR0603
SR0805
SR1206
SR1210
SR1218
SR2010
SR2512
L (mm)
1.00± 0.05
1.60± 0.10
2.00± 0.10
3.10± 0.10
3.10± 0.10
3.10± 0.10
5.00± 0.10
6.35± 0.10
W (mm)
0.50± 0.05
0.80± 0.10
1.25± 0.10
1.60± 0.10
2.60± 0.15
4.60± 0.10
2.50± 0.15
3.10± 0.15
H (mm)
0.35± 0.05
0.45± 0.10
0.50± 0.10
0.55± 0.10
0.55± 0.10
0.55± 0.10
0.55± 0.10
0.55± 0.10
I
1
(mm)
0.20± 0.10
0.25± 0.15
0.35± 0.20
0.45± 0.20
0.45± 0.15
0.45± 0.20
0.55± 0.15
0.60± 0.20
I
2
(mm)
0.25± 0.10
0.25± 0.15
0.35± 0.20
0.40± 0.20
0.50± 0.20
0.40± 0.20
0.50± 0.20
0.50± 0.20
www.yageo.com
Jun. 07, 2017 V.1
Product specification
5
9
Chip Resistor Surface Mount
SR
SERIES
0402/0603/0805/1206/1210/1218/2010/2512
For dimension, please refer to Table 1
SR0402
SR0603/0805/1206/
1210/2010/2512
SR1218
Side view for all type
Fig. 5
Chip resistor dimensions
ELECTRICAL CHARACTERISTICS
Table 2
Operating
Temperature Range
CHARACTERISTICS
Max.
Max.
Dielectric
Working Overload Withstanding
Voltage
Voltage
Voltage
50 V
100 V
100 V
TYPE
POWER
RESISTANCE RANGE
Temperature
Coefficient of
Resistance
SR0402
1/16W
1/8W
1/10W
SR0603
1/5W
1/4W
1/8 W
75V
150V
150V
SR0805
1/4W
1/3W
1/4 W
E24/E96 0.5%, 1%
1
Ω
≤
R
≤
100 KΩ
–55
°C to +155 °C
150V
300V
300V
± 200 ppm/°C
SR1206
SR1210
SR1218
SR2010
SR2512
1/2W
3/4W
1/2W
1W
3/4 W
1W
200 V
400 V
500 V
200 V
200 V
200 V
200 V
400 V
400 V
400 V
400 V
500 V
500 V
500 V
500 V
FOOTPRINT AND SOLDERING PROFILES
Recommended footprint and soldering profiles, please refer to data sheet “Chip resistors mounting”.
PACKING STYLE AND PACKAGING QUANTITY
Table 3
Packing style and packaging quantity
PACKING STYLE
Paper taping reel (R)
REEL DIMENSION
7" (178 mm)
13" (330 mm)
SR0402
10,000
50,000
---
SR0603/0805/1206
5,000
20,000
---
SR1210
5,000
20,000
---
SR1218/2010/2512
---
---
4,000
Embossed taping reel (K)
NOTE
7" (178 mm)
1. For paper/embossed tape and reel specification/dimensions, please refer to data sheet “Chip resistors packing”.
RESISTANCE
RANGE
Jun. 07, 2017 V.1
PT040
TEMPERATURE COEFFICIENT OF RESISTANCE
www.yageo.com
100 mΩ to 910 mΩ
2
