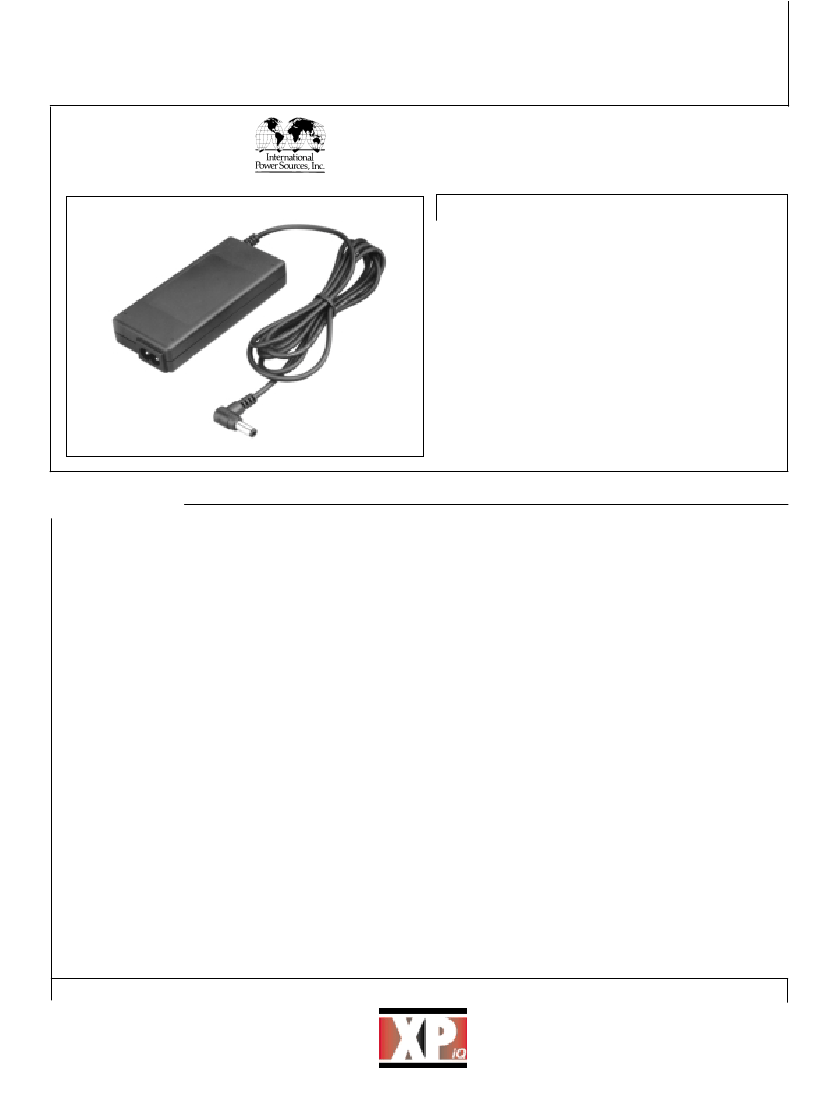

AC/DC Desktop
XPiQ inc.
Intelligent
Design
Quality
Product
36 Watts
CUP36 Series
•
CE Marked For EMC & LVD
•
Universal Input
•
Class II Construction
•
Internal EMI Filter
•
Low Profile
•
Short Circuit Protected
•
International Safety Approvals
Specification
All specifications are typical at 25°C, nominal line & 75% load
Input
Input Voltage
Input Frequency
Input Current
Inrush Current
•
•
•
•
90-264
47-63 Hz
1.0 A max
50 A at 230 VAC, 25A at 115 VAC
Environmental
Operating
Temperature
Storage
Temperature
MTBF
•
•
•
0°C to +40°C
-20°C to +85°C
100,000 hrs minimum at full load at
25°C ambient
Output
Output Voltage
Output Power Range
Hold Up Time
Ripple & Noise
Overvoltage
Protection
Overcurrent
Protection
Temperature
Coefficient
•
•
•
•
•
•
•
5-48 VDC, See Tables
0-36 Watts
8 ms min at 115 VAC
1% pk-pk max
Typical 125% max
Provided
±0.04%/°C
Safety and EMC
Safety Approvals
EMC
•
•
EN60950, UL1950, CSA C22.2
No.234 CUL per cUL
CISPR22 level B (EN55022),
FCC 20780 level B
General
Efficiency
Isolation Voltage
Power Density
•
•
•
82% typical
3000 VAC Input to output
5.3 Watts/in
3
www.XP-iQ.com
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xp-iq.com
Holliston, MA 01746 USA
•
•
OUTPUT VOLTAGE & CURRENT RATINGS
Output
Models
CUP36-10
CUP36-11
CUP36-12
CUP36-12-1
CUP36-13
CUP36-13-1
CUP36-14
CUP36-18
Note
* Total regulation includes initial tolerance, line regulation and load regulation.
Vnom
5V
9V
12V
13.5V
15V
18V
24V
48V
Imin
0A
0A
0A
0A
0A
0A
0A
0A
Imax
4.0A
3.0A
2.5A
2.4A
2.4A
2.0A
1.5A
0.75A
Tol.*
-5%,+7%
5%
5%
4%
4%
4%
4%
4%
CUP 36
Maximum
Output
Power
20W
27W
30W
32W
36W
36W
36W
36W
•
Mechanical Details
NOTES:
1. Dimensions shown in inches (mm).
2. Tolerance 0.02 (0.5) max.
3. Output connector is 5.5 mm dia. outer barrel,
inner dia. is 2.5 mm with center + and outer shell - polarity.
4. Optional output connectors available.
5. Output cable is 48” (1219).
6. Weight: 6 ounces, 170 grams approx.
