Thick Film Chip Resistors / Low Resistance Type
Thick Film Chip Resistors / Low Resistance Type
Type:
ERJ 2LW, 3LW, 6LW
2BW, 3BW, 6BW,
8BW, 6CW, 8CW
ERJ 2B, 3B, 6D, 6B, 8B,
14B, 3R, 6R, 8R, 14R,
12R, 12Z, 1TR
ERJ L03, L06, L08, L14,
L12, L1D, L1W

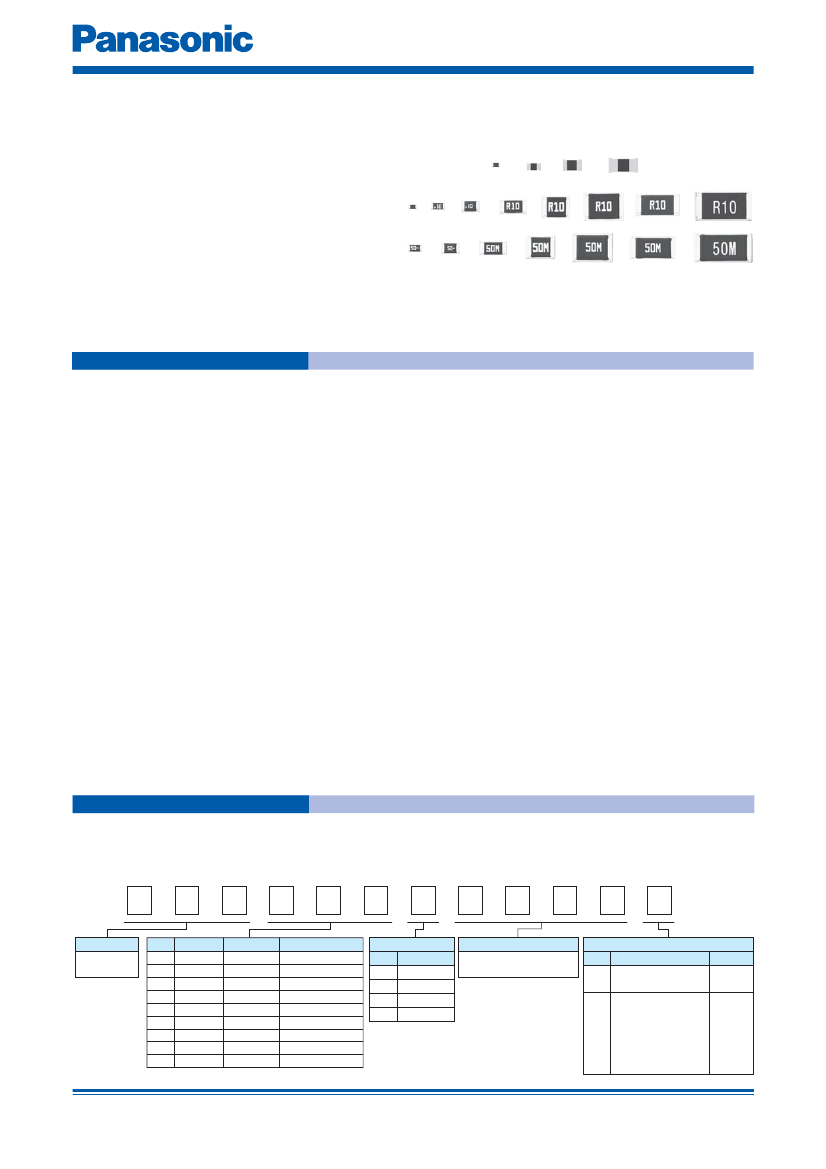

Features
Sensing resistor
●
Small size and lightweight
●
Realize both low-resistance & High-precision by original thick film resistive element & special electrode structure
●
Suitable for both reflow and flow soldering
●
Realize High-power by double-sided resistive elements structure that aimed
to suppress temperature rising : ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
●
Low TCR : ±75×10
–6
/°C (ERJ6CW, 8CW)
●
Low Resistance Value
5, 6, 7, 8, 9mΩ
: ERJ6LW
5m
Ω,
10m
Ω
: ERJ3LW
10m
Ω
: ERJ2LW
10m
Ω
to 50m
Ω
: ERJ8CW
10m
Ω
to 30m
Ω
: ERJ6CW
10m
Ω
to 100m
Ω
: ERJ6BW, 8BW
20m
Ω
to 100m
Ω
: ERJ3BW, ERJL14, L12
40m
Ω
to 100m
Ω
: ERJL1D, L1W
47m
Ω
to 100m
Ω
: ERJ2BW, ERJL03, L06, L08
●
Reference Standards : IEC 60115-8, JIS C 5201-8, JEITA RC-2144
●
AEC-Q200 qualified (Exemption ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6CW, 8CW)
●
RoHS compliant
●
Current
■
As for Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions,
Please see Data Files
Explanation of Part Numbers
●
ERJ2LW,
3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
<High power (double-sided resistive elements structure) type>
1
2
3
4
5
6
7
8
9
10
11
12
E
Product Code
Thick Film
Chip Resistors
Code
2LW
3LW
6LW
2BW
3BW
6BW
8BW
6CW
8CW
R
Inch
0402
0603
0805
0402
0603
0805
1206
0805
1206
J
2
B
W
G
R
0
4
7
X
Power Rating
0.2 W
0.25 W
0.5 W
0.25 W
0.33 W
0.5 W
1W
0.5 W
1W
Resistance Value
10m
Ω
5m
Ω,10m Ω
5, 6, 7, 8, 9m
Ω
47m
Ω
to 100m
Ω
20m
Ω
to 100m
Ω
10m
Ω
to 100m
Ω
10m
Ω
to 100m
Ω
10m
Ω
to 30m
Ω
10m
Ω
to 50m
Ω
Resistance Tolerance
Code
D
F
G
J
Tolerance
± 0.5 %
½
±1%
±2%
±5%
Resistance Value
Shown by 4 digits or letters.
(Ex.) R047 : 0.047
Ω=47m Ω
Packaging Methods
Packaging
Part No.
Code
Pressed Carrier Taping ERJ2LW
X
2 mm pitch, 10,000 pcs. ERJ2BW
ERJ3LW
ERJ6LW
Punched Carrier Taping ERJ3BW
4 mm pitch, 5,000 pcs. ERJ6BW
ERJ8BW
ERJ6CW
ERJ8CW
½
Please refer to the rating table
for the resistance tolerance
V
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
13 Dec. 2016
Thick Film Chip Resistors / Low Resistance Type
●
ERJ2BS/2BQ,
3BS/3BQ, 6BS/6BQ, 8BS/8BQ, 14BS/14BQ, 6D, 3R, 6R, 8R, 14R, 12R, 12Z, 1TR
<High power type/Standard type>
1
2
3
4
5
6
7
8
9
10
11
E
Product Code
Thick Film
Chip Resistors
R
J
8
R
Q
F
R
2
2
V
Packaging Methods
Packaging
Type
2B
3B
3R
6D
6B
6R
8B
8R
14B
14R
12R
12Z
1TR
Size, Power Rating
Inch
Power R.
0402
0.166 W
0603
0.25 W
0603
0.1 W
0805
0.5 W
0805
0.33 W
0805
0.125 W
1206
0.5 W
1206
0.25 W
1210
0.5 W
1210
0.25 W
1812
0.5 W
2010
0.5 W
2512
1W
Resistance Value
Res. Value
Code
S 0.1
Ω
to 0.2
Ω
Q 0.22
Ω
to 9.1
Ω
½
½
2B : 0.22
Ω
to 1.0
Ω
Resistance Tolerance
Code Tolerance
D
± 0.5 %
½
±1%
F
±2%
G
±5%
J
½
Please refer to the
rating table for the
resistance tolerance
Code
X
Part No.
ERJ2B
Punched Carrier Taping
2 mm pitch, 10,000 pcs.
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
V
U
Resistance Value
Shown by 3 digits or letters.
(Ex.) R22 : 0.22
Ω
ERJ3B/3R
ERJ6D/6B/6R
ERJ8B/8R
ERJ14B/14R
Embossed Carrier Taping
ERJ12R
4 mm pitch, 5,000 pcs.
ERJ12Z
Embossed Carrier Taping
ERJ1TR
4 mm pitch, 4,000 pcs.
●
ERJL03,
1
L06, L08, L14, L12, L1D, L1W <Low TCR type>
2
3
4
5
6
7
8
9
10
11
12
E
R
J
L
1
4
Res. Value
K
J
5
0
M
U
Product Code
Thick Film
Chip Resistors
Size, Power Rating
Type Inch Power R.
L03 0603
0.2 W
L06 0805 0.25 W
L08 1206 0.33 W
L14 1210 0.33 W
L12 1812
0.5 W
L1D 2010
0.5 W
L1W 2512
1W
Code
K
Resistance Tolerance
Code
F
J
Tolerance
±1%
±5%
Code
V
Std.
½
20m
Ω,
22m
Ω,
33m
Ω,
39m
Ω,
47m
Ω,
50m
Ω,
100m
Ω
U
20m
Ω
to 100m
Ω
½
½
L03, L06, L08 : 47m
Ω
to 100m
Ω
L1D, L1W : 40m
Ω
to 100m
Ω
Resistance Value
Shown by 3 digits or letters.
(Ex.) 50M:50m
Ω,
10 C:100m
Ω
U
Part No.
ERJL03
Punched Carrier Taping
ERJL06
4 mm pitch, 5,000 pcs.
ERJL08
ERJL14
Embossed Carrier Taping
ERJL12
4 mm pitch, 5,000 pcs.
ERJL1D
Embossed Carrier Taping
ERJL1W
4 mm pitch, 3,000 pcs.
Packaging Methods
Packaging
Ratings
<High power (double-sided resistive elements structure) type>
Power Rating
at 70 °C
(W)
ERJ2LW
(0402)
0.2
Part No.
(inch size)
ERJ3LW
(0603)
ERJ6LW
(0805)
ERJ2BW
(0402)
ERJ3BW
(0603)
ERJ6BW
(0805)
ERJ8BW
(1206)
ERJ6CW
(0805)
ERJ8CW
(1206)
0.25
0.5
0.25
0.33
0.5
1
0.5
1
Resistance
Tolerance
(%)
±1, ±2, ±5
±1, ±2, ±5
±1, ±2, ±5
±1, ±2, ±5
±1, ±2, ±5
±1, ±2, ±5
±1, ±2, ±5
±0.5, ±1, ±2, ±5
±1, ±2, ±5
Resistance
(1)
Range
(Ω)
10m
5m
10m
5, 6, 7, 8, 9m
47m to 100m (E24)
20m to 100m (E24)
10m to 100m (E24)
10m to 100m (E24)
10m to
10m to
30m (E24)
50m (E24)
T.C.R.
(×10
–6
/°C)
0 to 500
0 to 700
0 to 300
0 to 300
±300
R < 39m
Ω
: ±250
R
>
39m
Ω
: ±150
R < 15m
Ω
: ±300
R
>
15m
Ω
: ±200
10m
Ω
<
R < 20m
Ω
: ±200
20m
Ω
<
R < 47m
Ω
: ±150
47m
Ω
<
R
<
100m
Ω
: ±100
±75
±75
Category
Temperature Range
(°C)
–55 to +125
–55 to +125
–55 to +125
–55 to +125
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +125
–55 to +125
(1) Please contact us when resistors of irregular series are needed.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
13 Dec. 2016
Thick Film Chip Resistors / Low Resistance Type
Ratings
<High power type>
Part No.
(inch size)
ERJ2BS
(0402)
ERJ2BQ
(0402)
ERJ3BS
(0603)
ERJ3BQ
(0603)
ERJ6DS
(0805)
ERJ6DQ
(0805)
ERJ6BS
(0805)
ERJ6BQ
(0805)
ERJ8BS
(1206)
ERJ8BQ
(1206)
ERJ14BS
(1210)
ERJ14BQ
(1210)
0.5
±1, ±2, ±5
0.5
±1, ±2, ±5
Power Rating
at 70 °C
(W)
0.166
0.25
0.5
0.33
Resistance
Tolerance
(%)
±1, ±2, ±5
±1, ±2, ±5
±0.5, ±1,
±2, ±5
±1, ±2, ±5
Resistance
(1)
Range
(Ω)
0.10 to 0.20 (E24)
0.22 to 1.0 (E24)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1 (E24)
0.10 to 0.20 (E24, E96)
0.22 to 9.1 (E24, E96)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1 (E24)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1 (E24)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1 (E24)
T.C.R.
(×10
–6
/°C)
±300
±250
±300
±200
±150
±100
±250
±200
±250
±200
±200
±100
–55 to +125
–55 to +125
Category
Temperature Range
(°C)
–55 to +125
–55 to +125
–55 to +155
–55 to +125
(1) Please contact us when resistors of irregular series are needed.
<Standard type>
Part No.
(inch size)
ERJ3RS
(0603)
ERJ3RQ
(0603)
ERJ6RS
(0805)
ERJ6RQ
(0805)
ERJ8RS
(1206)
ERJ8RQ
(1206)
ERJ14RS
(1210)
ERJ14RQ
(1210)
ERJ12RS
(1812)
ERJ12RQ
(1812)
ERJ12ZS
(2010)
ERJ12ZQ
(2010)
ERJ1TRS
(2512)
ERJ1TRQ
(2512)
1
±1, ±2, ±5
0.5
±1, ±2, ±5
0.5
±1, ±2, ±5
0.25
±1, ±2, ±5
0.25
±1, ±2, ±5
0.125
±1, ±2, ±5
0.1
±1, ±2, ±5
Power Rating
at 70 °C
(W)
Resistance
Tolerance
(%)
Resistance
Range
(Ω)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1
(E24)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1
(E24)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1
(E24)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1
(E24)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1
(E24)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1
(E24)
0.10 to 0.20 (E24)
0.22 to 0.91 (E24)
1.0 to 9.1
(E24)
T.C.R.
(×10
–6
/°C)
±300
±200
±250
±200
±250
±200
±200
±100
±200
±100
±200
±100
±200
±100
–55 to +125
–55 to +125
–55 to +125
–55 to +125
–55 to +125
–55 to +125
Category
Temperature Range
(°C)
–55 to +125
<Low TCR type>
Part No.
(inch size)
ERJL03
ERJL06
ERJL08
ERJL14
ERJL12
ERJL1D
ERJL1W
(0603)
(0805)
(1206)
(1210)
(1812)
(2010)
(2512)
Power Rating
at 70 °C
(W)
0.2
0.25
0.33
0.33
0.5
0.5
1
Resistance
Tolerance
(%)
±1, ±5
±1, ±5
±1, ±5
±1, ±5
±1, ±5
±1, ±5
±1, ±5
Resistance
(1)
Range
(Ω)
47m to 100m
47m to 100m
47m to 100m
20m to 100m
20m to 100m
40m to 100m
40m to 100m
T.C.R.
(×10
–6
/°C)
±200
±100
±100
R < 47m
Ω
: ±300
R
>
47m
Ω
: ±100
Category
Temperature Range
(°C)
–55 to +125
–55 to +125
–55 to +125
–55 to +125
–55 to +125
–55 to +125
–55 to +125
(1) Standard R.V. : 20m
Ω,
22m
Ω,
33m
Ω,
39m
Ω,
47m
Ω,
50m
Ω,
100m
Ω,
Custom R.V. : Each 1m
Ω
within upper range.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
13 Dec. 2016
Thick Film Chip Resistors / Low Resistance Type

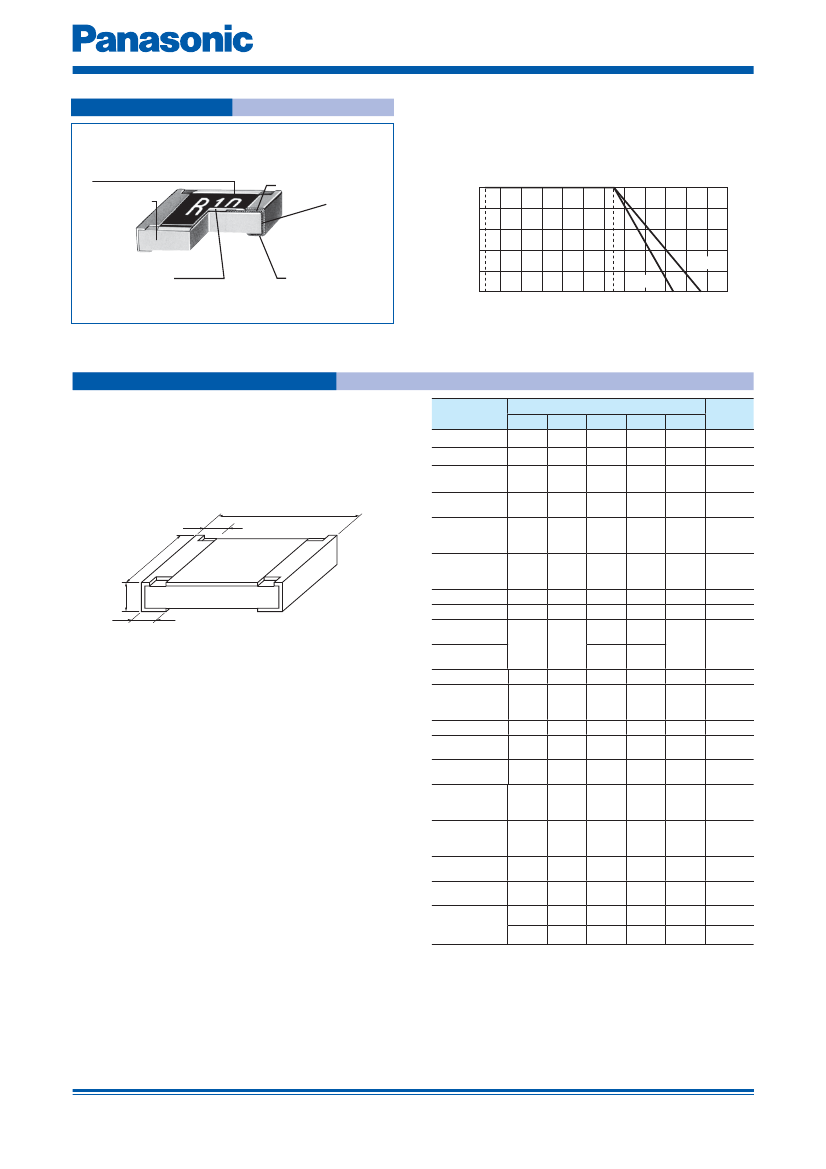

Construction
Power Derating Curve
For resistors operated in ambient temperatures above
70 °C, power rating shall be derated in accordance
with the figure below.
Electrode (Inner)
Rated Load (%)
Alumina
substrate
Electrode
(Between)
–55 °C
100
80
60
40
20
125 °C
0
–60 –40 –20
0
20
40
60
80 100 120 140 160 180
155 °C
70 °C
Protective coating
Thick film
resistive element
Electrode (Outer)
Ambient Temperature (°C)
Dimensions in mm (not to scale)
Part No.
(inch size)
L
±0.10
±0.10
Dimensions (mm)
W
a
b
0.50
0.50
+0.10
–0.05
t
0.40
±0.05
0.35
±0.05
Mass(Weight)
[g/1000 pcs.]
0.8
0.8
0.8
3
3
2
6
6
6
5
5
13
13
13
10
16
27
27
45
79
ERJ2LW
(0402)
1.00
ERJ2BW
(0402)
1.00
0.25
0.24
±0.10
±0.10
0.25
0.24
±0.10
±0.10
+0.10
–0.05
ERJ2BS
(0402)
1.00
±0.10
0.50
+0.10
0.20
±0.10
0.27
±0.10
0.35
±0.05
–0.05
ERJ2BQ
L
a
W
ERJ3LW
(0603)
(5m
Ω)
ERJ3LW
(10m
Ω)
(0603)
ERJ3BW
ERJ3R
ERJ3B
(0603)
ERJL03
ERJ6LW
(0805)
ERJ6CW
(10 to 13m
Ω)
ERJ6CW
(15 to 30m
Ω)
ERJ6D
(0805)
ERJ6R
ERJ6B
(0805)
ERJL06
ERJ8BW
(1206)
ERJ8CW
(10 to 16m
Ω)
ERJ8CW
(18 to 50m
Ω)
ERJ8R
ERJ8B
(1206)
ERJL08
ERJ14R
ERJ14B
(1210)
ERJL14
ERJ12R
(1812)
ERJL12
ERJ12Z
(2010)
ERJL1D
1.60
±0.15
0.80
±0.15
0.50
±0.20
0.50
±0.20
0.55
±010
1.60
±0.15
0.80
±0.15
0.40
±0.20
0.40
±0.20
0.55
±010
1.60
±0.15
0.80
+0.15
0.30
±0.20
0.30
±0.15
0.45
±0.10
–0.05
t
b
2.00
±0.20
1.25
±0.20
0.63
±0.20
0.63
±0.20
0.70
±0.10
ERJ6BW
(0805)
2.00
±0.20
1.25
±0.20
0.55
±0.20
0.55
±0.20
0.65
±0.10
0.60
±0.20
0.60
±0.20
2.05
±0.20
1.30
1.25
±0.20
0.65
±0.10
0.45
±0.20
±0.20
0.45
±0.20
2.00
±0.20
±0.10
0.40
0.55
±0.25
0.60
±0.10
2.00
±0.20
1.25
±0.10
0.40
±0.20
0.40
±0.20
0.60
±0.10
3.20
±0.20
1.60
±0.20
1.00
±0.20
1.00
±0.20
0.65
±0.10
3.20
±0.20
1.60
±0.20
1.10
±0.20
1.10
±0.20
0.65
±0.10
3.20
±0.20
1.60
±0.20
0.60
±0.20
0.60
±0.20
0.65
±0.10
3.20
+0.05
1.60
+0.05
0.50
±0.20
0.50
±0.20
0.60
±0.10
–0.20
–0.15
3.20
±0.20
2.50
±0.20
0.50
±0.20
0.50
±0.20
0.60
±0.10
4.50
±0.20
3.20
±0.20
0.50
±0.20
0.50
±0.20
0.60
±0.10
5.00
±0.20
2.50
±0.20
0.60
±0.20
0.60
±0.20
0.60
±0.10
6.40
±0.20
3.20
±0.20
0.65
±0.20
0.60
±0.20
0.60
±0.10
ERJ1TR
(2512)
ERJL1W
6.40
±0.20
3.20
±0.20
0.65
±0.20
1.30
±0.20
1.10
±0.10
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
13 Dec. 2016
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Panasonic
:
ERJ-12ZQJR68U ERJ-8RQFR82V ERJ-3RSFR10V ERJ-12ZQJR27U ERJ-6RQFR51V ERJ-6RQFR56V ERJ-
3RQF5R1V ERJ-1TRQFR24U ERJ-1TRQF1R2U ERJ-1TRQF1R0U ERJ-8RQJR22V ERJ-6RQJR47V ERJ-
1TRQFR27U ERJ-1TRSJR10U ERJ-8RSJR12V ERJ-1TRQF1R6U ERJ-2BQFR22X ERJ-1TRQJR36U ERJ-
1TRQF2R0U ERJ-2BSFR10X ERJ-L08KJ47MV ERJ-8RQFR68V ERJ-3RQFR82V ERJ-6RQF1R5V ERJ-
8RQF4R7V ERJ-3RQF8R2V ERJ-6RQF3R3V ERJ-12ZQJR43U ERJ-8RSFR10V ERJ-L06KF50MV ERJ-
8RQF2R4V ERJ-1TRQFR30U ERJ-14RQJ1R2U ERJ-3BQF1R5V ERJ-3BQF3R9V ERJ-L03KF10CV ERJ-
L03KF47MV ERJ-L03KF50MV ERJ-L03KJ10CV ERJ-L03KJ47MV ERJ-L03KJ50MV ERJ-L03UF75MV ERJ-
L03UJ75MV ERJ-L08KF10CV ERJ-L08KF47MV ERJ-L08KF50MV ERJ-L08KJ50MV ERJ-L08UF75MV ERJ-
L08UJ75MV ERJ-L1DKF10CU ERJ-L1DKF47MU ERJ-L1DUF75MU ERJ-L1WKF47MU ERJ-L1WKJ47MU ERJ-
14RQJR27U ERJ-14RQJR39U ERJ-14RQJR56U ERJ-14RQJR82U ERJ-14RSJR18U ERJ-2BQFR27X ERJ-
2BWJR047X ERJ-2BWJR051X ERJ-2BWJR056X ERJ-2BWJR062X ERJ-2BWJR068X ERJ-2BWJR075X ERJ-
2BWJR082X ERJ-2BWJR091X ERJ-3RQFR27V ERJ-3RQFR68V ERJ-3RQF1R2V ERJ-3RQF1R5V ERJ-
3RQF1R8V ERJ-3RQF2R2V ERJ-3RQF2R7V ERJ-3RQF3R3V ERJ-3RQF3R9V ERJ-3RQF5R6V ERJ-3RQF6R8V
ERJ-3RQJR27V ERJ-3RQJR39V ERJ-3RQJR47V ERJ-3RQJR56V ERJ-3RQJR68V ERJ-3RQJR82V ERJ-
3RSFR12V ERJ-3RSFR15V ERJ-3RSFR18V ERJ-3RSJR12V ERJ-3RSJR15V ERJ-3RSJR18V ERJ-6RQFR39V
ERJ-6RQJR22V ERJ-6RQJR27V ERJ-6RQJR33V ERJ-6RQJR39V ERJ-6RQJR68V ERJ-6RQJR82V ERJ-
6RSJR18V ERJ-8RQFR27V
京公网安备 11010802033920号
EEWORLD
