SMT inductors
SIMID series, SIMID 2220-A
Series/Type:
Date:
B82442A
October 2012
a~í~=pÜÉÉí
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SMT inductors, SIMID series
SIMID 2220-A
Size 2220 (EIA) or 5650 (IEC)
Rated inductance 1 ... 10000 μH
Rated current 25 ... 1800 mA
Construction
■
Upright ferrite drum core
■
Laser-welded winding
■
Flame-retardant molding
B82442A
Features
■
■
■
■
■
Temperature range up to +150 °C
Current handling capability up to 1.8 A
High inductance ratings
Qualified to AEC-Q200
Suitable for lead-free reflow soldering
as referenced in JEDEC J-STD 020D
■
RoHS-compatible
Applications
■
■
■
■
Filtering of supply voltages, coupling, decoupling
DC/DC converters
Automotive electronics
Telecommunications
(e.g. blocking filter for 12- and 16-kHz counting pulses)
■
Consumer electronics
■
Industrial electronics
Terminals
■
Base material CuSn6
■
Layer composition Cu, Ag, Sn (lead-free)
1)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer, L value (in nH),
tolerance of L value (coded), date of manufacture (YWWD)
■
Minimum data on reel:
Manufacturer, ordering code, L value, quantity, date of packing
Delivery mode and packing unit
■
12-mm blister tape, wound on 330-mm
reel
■
Packing unit: 1500 pcs./reel
1) Ni-barrier-plated terminals on request (B82442A*50).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
10/12
SMT inductors, SIMID series
SIMID 2220-A

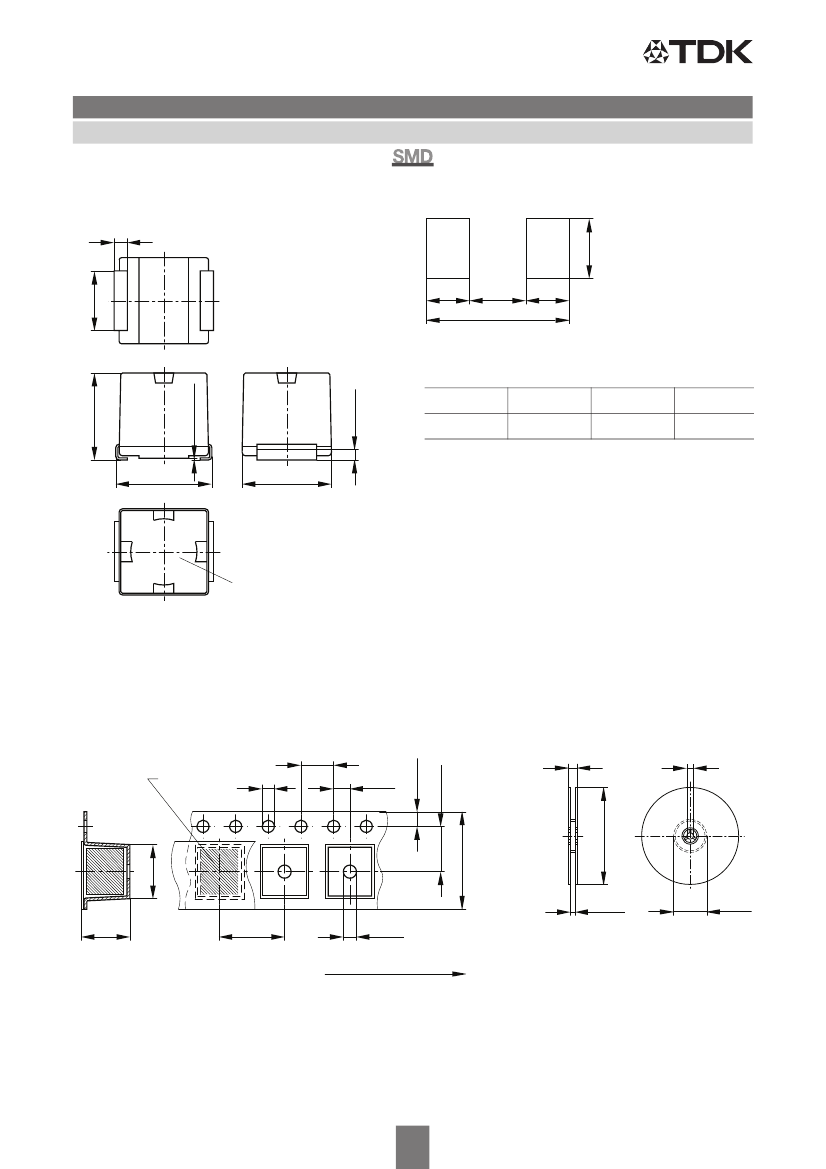

Dimensional drawing and layout recommendation
0.7±0.2
1)
B82442A
3.5±0.1
1)
B
C
D
B
IND0053-6
0.15 max.
0.7 min.
1)
5+0.3
A
4.5
B
2.0
A
C
4.0
D
8.0
5.6+0.3
5+0.3
Marking
1) Soldering area
IND0088-3-E
Dimensions in mm
Taping and packing
Blister tape
1.75±0.1
5.5±0.1
4±0.1
Component
1.5+0.1
2±0.05
Reel
18.4 max.
13±0.2
_
< 7.2
12±0.3
_
0
12.4
+1.5
_
2
330
+0
62±1.5
IND0350-S
_
< 6.0
8±0.1
1.6±0.1
Direction of unreeling
IND0564-H-E
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
10/12
SMT inductors, SIMID series
SIMID 2220-A
Technical data and measuring conditions
Rated inductance L
R
Q factor Q
min
Rated temperature T
R
Rated current I
R
B82442A
Measured with impedance analyzer Agilent 4294A
at frequency f
L
, 0.1 V, +20 °C
Measured with impedance analyzer Agilent 4294A
at frequency f
Q
, +20 °C
+105
qC
Maximum permissible DC with inductance decrease
'L/L
0
d
10% and temperature increase
of
d
20 K at rated temperature
Measured with impedance analyzer Agilent 4294A, +20 °C
Self-resonance frequency f
res,min
DC resistance R
max
Solderability (lead-free)
Measured at +20
qC
Sn95.5Ag3.8Cu0.7: +(245
r5)
°C, (5
r0.3)
s
Wetting of soldering area
t
90%
(based on IEC 60068-2-58)
+260
qC,
40 s (as referenced in JEDEC J-STD 020D)
55/150/56 (to IEC 60068-1)
Mounted: –55 °C … +150 °C
Packaged: –25 °C … +40 °C,
d
75% RH
Approx. 0.4 g
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
10/12
SMT inductors, SIMID series
SIMID 2220-A
Characteristics and ordering codes
L
R
PH
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
r5%
^
B82442A
Tolerance
r10%
^
Q
min
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
f
L
; f
Q
MHz
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
I
R
mA
1800
1700
1600
1400
1300
1200
1120
1050
950
880
810
750
690
630
580
530
480
440
400
370
340
310
290
270
250
230
210
190
R
max
:
0.024
0.028
0.032
0.040
0.048
0.056
0.064
0.072
0.088
0.104
0.120
0.144
0.168
0.20
0.24
0.29
0.35
0.42
0.50
0.58
0.68
0.80
0.96
1.12
1.28
1.52
1.76
2.24
f
res,min
MHz
95
70
55
47
42
37
34
32
29
26
24
22
19
17
16
14
13
11.5
10.5
9.5
8.5
7.8
7.0
6.4
6.0
5.4
4.8
4.4
Ordering code
1)2)
B82442A1102K000
B82442A1122K000
B82442A1152K000
B82442A1182K000
B82442A1222K000
B82442A1272K000
B82442A1332K000
B82442A1392K000
B82442A1472K000
B82442A1562K000
B82442A1682K000
B82442A1822K000
B82442A1103K000
B82442A1123K000
B82442A1153K000
B82442A1183K000
B82442A1223K000
B82442A1273K000
B82442A1333+000
B82442A1393+000
B82442A1473+000
B82442A1563+000
B82442A1683+000
B82442A1823+000
B82442A1104+000
B82442A1124+000
B82442A1154+000
B82442A1184+000
K
J
^
10
K
10
10
10
10
10
20
20
20
20
r10%
Closer tolerances on request.
Higher currents possible at temperatures <T
R
on request.
Sample kit available. Ordering code: B82442X001
For more information refer to chapter “Sample kits”.
1) Replace the + by the code letter for the required inductance tolerance.
2) For Ni-barrier-plated terminals replace the last two digits “00” by “50”.
