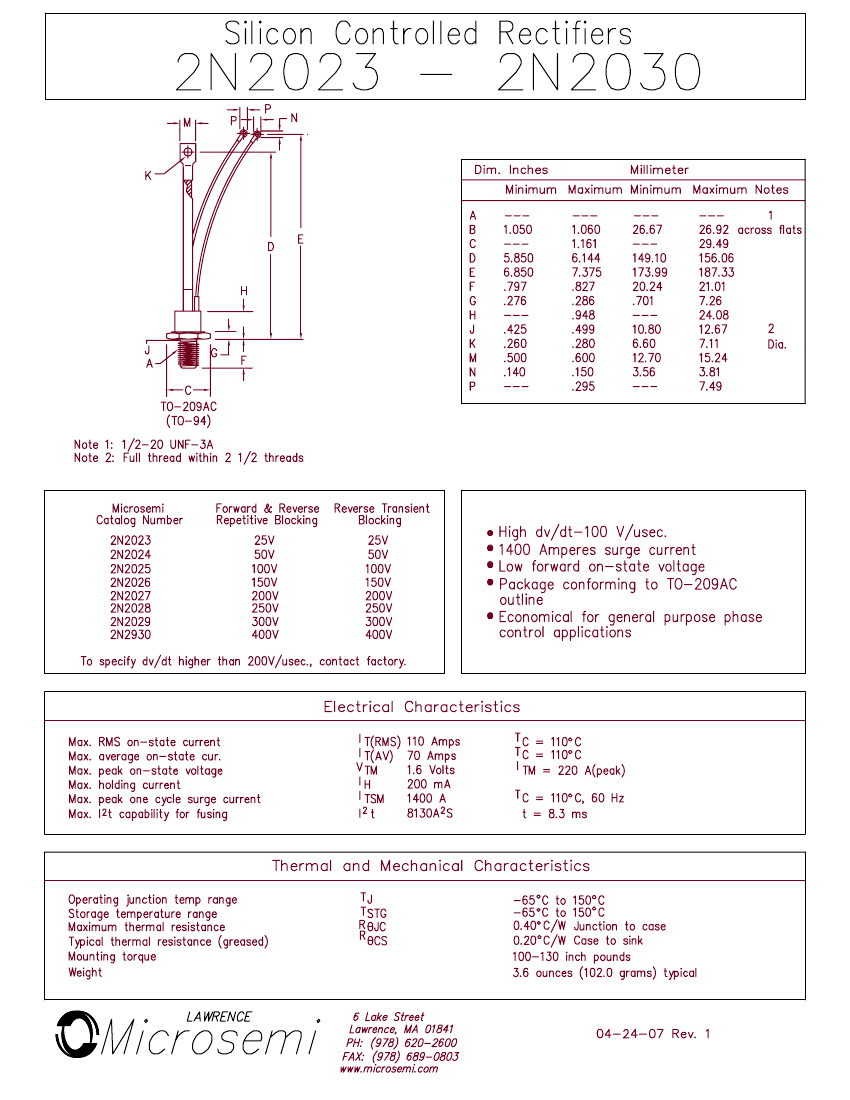

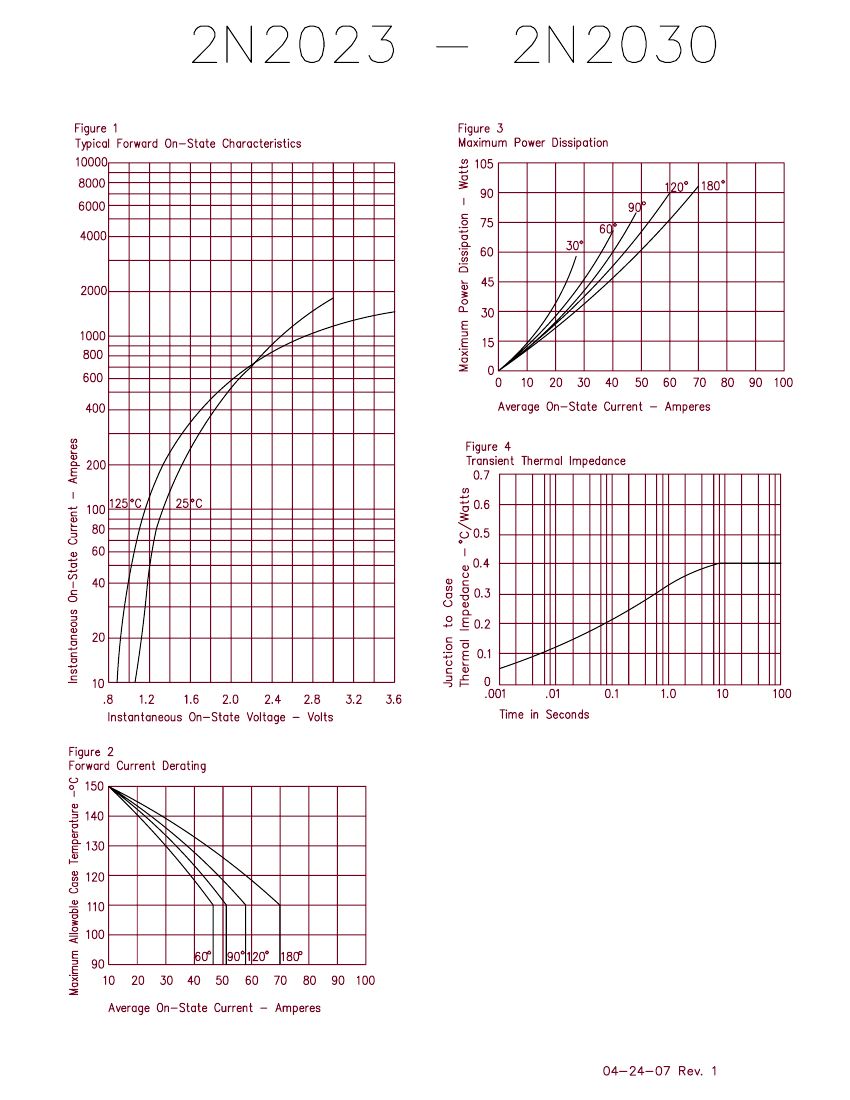

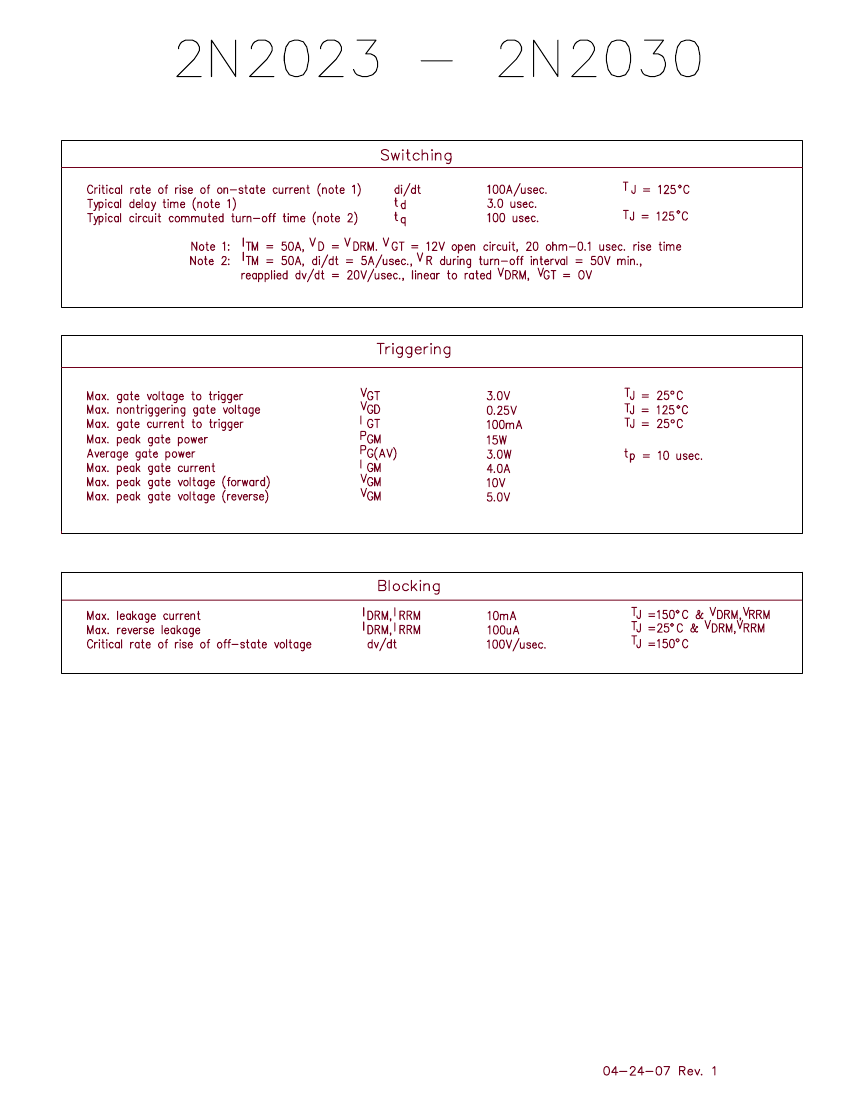

2N2026 datasheet, PDF - EEWORLD Datasheet

2N2026: CategoryAnalog mixed-signal IC Trigger device; File Size153KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Related ProductsFound3parts with similar functions to 2N2026

Download Datasheet Parametric Compare View All

2N2026 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N2026	-	-	View	Buy Now

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TO-94
package instruction	POST/STUD MOUNT, O-MUPM-H3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Maximum DC gate trigger current	100 mA
JEDEC-95 code	TO-209AC
JESD-30 code	O-MUPM-H3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	110 A
Repeated peak reverse voltage	150 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

	2N2026	2N2023	2N2027
Description		SCRs Silicon Controlled Rectifier	SCRs Silicon Controlled Rectifier
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	TO-94	TO-94	TO-94
package instruction	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3
Contacts	3	3	3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	100 mA	100 mA	100 mA
JEDEC-95 code	TO-209AC	TO-209AC	TO-209AC
JESD-30 code	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3
JESD-609 code	e0	e0	e0
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Package body material	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	110 A	110 A	110 A
Repeated peak reverse voltage	150 V	25 V	200 V
surface mount	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR
Base Number Matches	1	1	1

Part Number	Manufacturer	Description
2N2026	International Rectifier （ Infineon ）	Silicon Controlled Rectifier, 110A I(T)RMS, 70000mA I(T), 150V V(DRM), 150V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN
2N2026PBF	International Rectifier （ Infineon ）	Silicon Controlled Rectifier, 110A I(T)RMS, 150V V(DRM), 150V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN
2N2026E3	Microsemi	Silicon Controlled Rectifier, 110A I(T)RMS, 150V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN
