M24C64-WBN6P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> M24C64-WBN6P

M24C64-WBN6P: DescriptionUSB Interface IC USB to Basic Serial UART IC SSOP-16; Categorystorage storage; File Size820KB，54 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M24C64-WBN6P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M24C64-WBN6P	-	-	View	Buy Now

M24C64-WBN6P Overview

USB Interface IC USB to Basic Serial UART IC SSOP-16

M24C64-WBN6P Parametric

Parameter Name	Attribute value
Brand Name	STMicroelectronics
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	3
Samacsys Status	Released
Samacsys PartID	221858
Samacsys Pin Count	8
Samacsys Part Category	Integrated Circuit
Samacsys Package Category	Dual-In-Line Packages
Samacsys Footprint Name	DIP8
Samacsys Released Date	2015-09-17 10:56:35
Is Samacsys	N
Maximum clock frequency (fCLK)	0.4 MHz
Data retention time - minimum	40
Durability	1000000 Write/Erase Cycles
I2C control byte	1010DDDR
JESD-30 code	R-PDIP-T8
JESD-609 code	e3
length	9.27 mm
memory density	65536 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	8192 words
character code	8000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	5.33 mm
Serial bus type	I2C
Maximum standby current	0.000002 A
Maximum slew rate	0.005 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Maximum write cycle time (tWC)	5 ms
write protect	HARDWARE
Base Number Matches	1

Preview

Download Datasheet

View All

M24C64-W M24C64-R

M24C64-F M24C64-DF

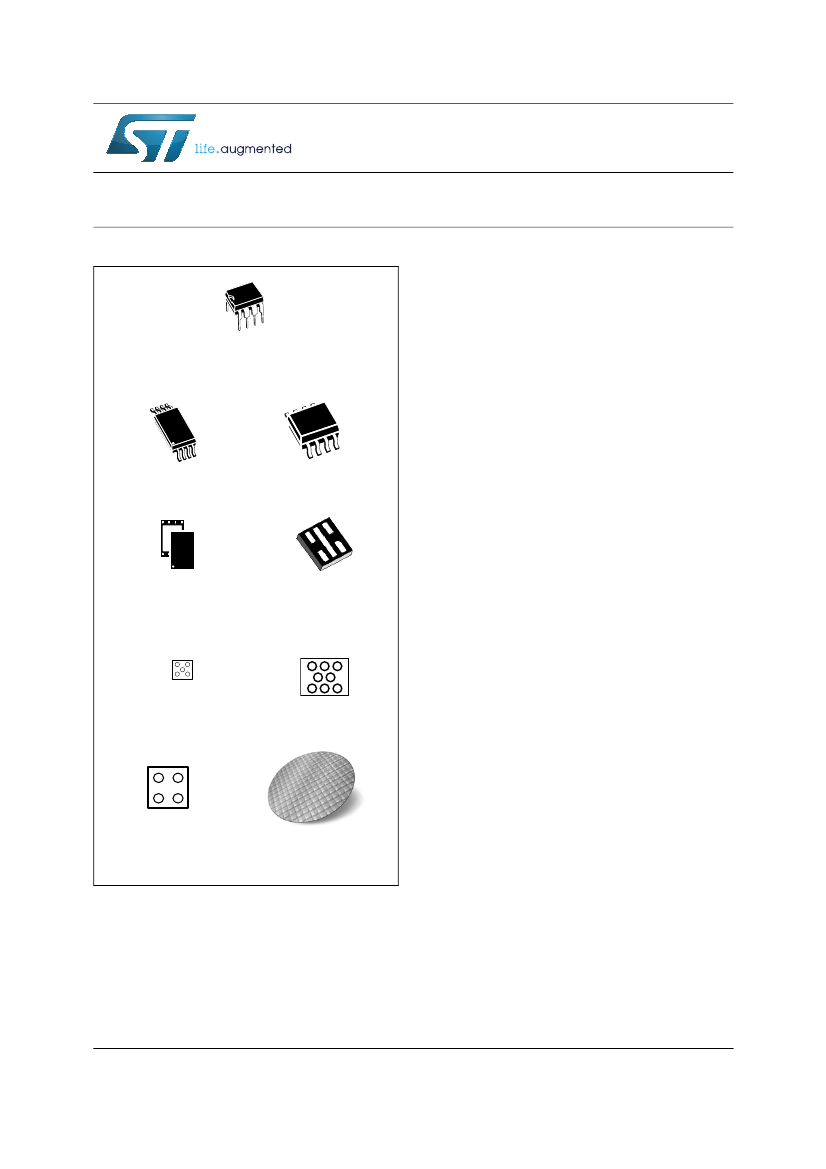

64-Kbit serial I²C bus EEPROM

Datasheet

production data

Features

•

Compatible with all I

C bus modes:

– 1 MHz

– 400 kHz

– 100 kHz

•

Memory array:

– 64 Kbit (8 Kbyte) of EEPROM

– Page size: 32 byte

– Additional Write lockable page (M24C64-D

order codes)

TSSOP8 (DW)

169 mil width

SO8 (MN)

150 mil width

•

Single supply voltage:

– 1.7 V to 5.5 V over –40 °C / +85 °C

– 1.6 V to 5.5 V over 0 °C / +85 °C

•

Write:

– Byte Write within 5 ms

– Page Write within 5 ms

PDIP8 (BN)

UFDFPN8 (MC)

DFN8 - 2x3 mm

UFDFPN5 (MH)

DFN5 -1.7x1.4 mm

•

Random and sequential Read modes

•

Write protect of the whole memory array

•

Enhanced ESD/Latch-Up protection

•

More than 4 million Write cycles

•

More than 200-years data retention

WLCSP (CS)

Thin WLCSP (CT)

Packages

•

PDIP8 ECOPACK2

•

SO8 ECOPACK2

•

TSSOP8 ECOPACK2

•

UFDFPN ECOPACK2

WLCSP

(CU)

Unsawn wafer

•

WLCSP ECOPACK2

•

Unsawn wafer (each die is tested)

November 2017

This is information on a product in full production.

DocID16891 Rev 35

1/54

www.st.com
