2SC5200NS1ES Online Shopping

Suppliers Part Number Price MOQ In stock
2SC5200NS1ES - - View Buy Now

2SC5200NS1ES Parametric

Parameter NameAttribute value
Product CategoryBipolar Transistors - BJT
ManufacturerToshiba Semiconductor
RoHSDetails
Mounting StyleThrough Hole
Package / CaseTO-3P-3
Transistor PolarityNPN
ConfigurationSingle
Collector- Emitter Voltage VCEO Max230 V
Collector- Base Voltage VCBO230 V
Emitter- Base Voltage VEBO5 V
Collector-Emitter Saturation Voltage0.4 V
Maximum DC Collector Current15 A
Gain Bandwidth Product fT30 MHz
Maximum Operating Temperature+ 150 C
Continuous Collector Current15 A
DC Collector/Base Gain hfe Min35
DC Current Gain hFE Max160
Minimum Operating Temperature- 55 C
PackagingReel
Pd - Power Dissipation150 W
Factory Pack Quantity25
Unit Weight0.245577 oz

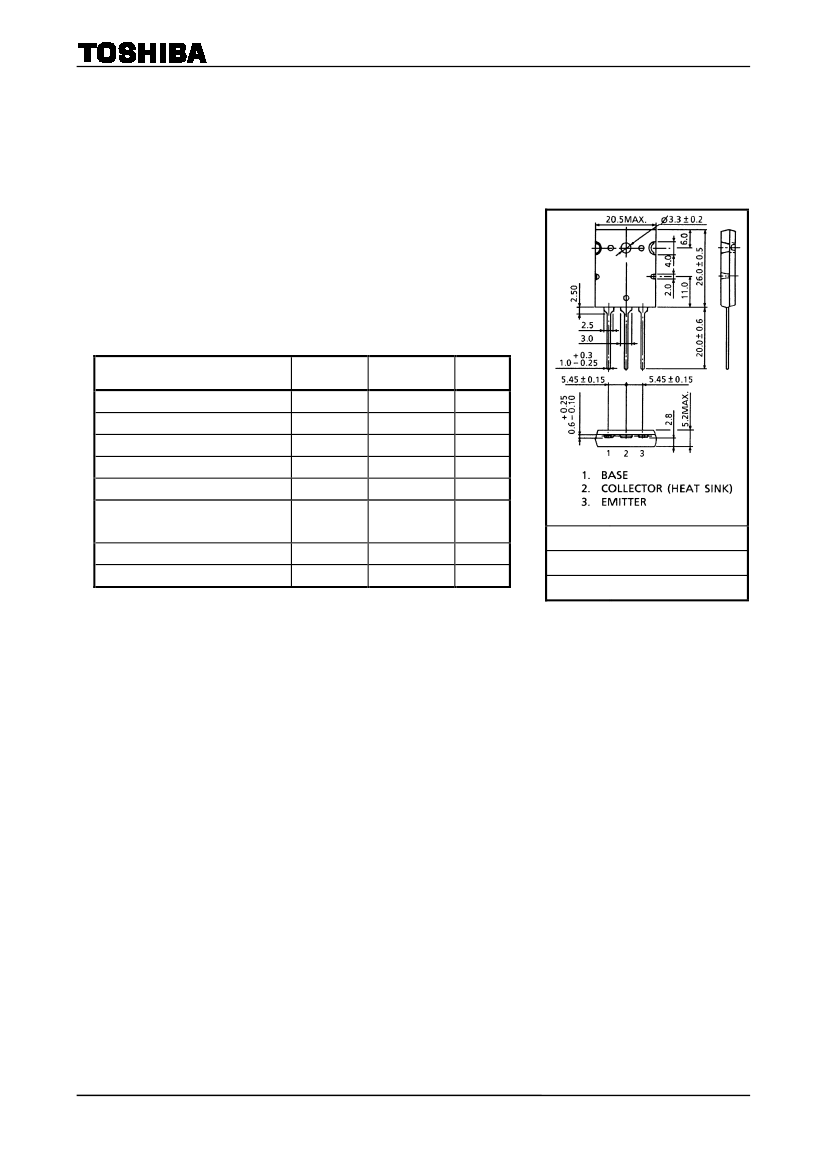

2SC5200
TOSHIBA Transistor Silicon NPN Triple Diffused Type
2SC5200
Power Amplifier Applications
Unit: mm
High breakdown voltage: V
CEO
= 230 V (min)
Complementary to 2SA1943
Suitable for use in 100-W high fidelity audio amplifier’s output stage
Absolute Maximum Ratings
(T
a
= 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
(T
c
= 25°C)
Junction temperature
Storage temperature range
P
C
T
j
T
stg
150
150
−55
to 150
W
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
Rating
230
230
5
15
1.5
Unit
V
V
V
A
A
JEDEC
°C
°C
2-21F1A
JEITA
TOSHIBA
Note: Using continuously under heavy loads (e.g. the application of high
Weight: 9.75 g (typ.)
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are
within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/"Derating Concept and Methods") and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Start of commercial production
1994-09
1
2016-01-07
