VS-MURD620CT-M3
www.vishay.com
Vishay Semiconductors
Ultrafast Rectifier, 2 x 3 A FRED Pt
®
Base
common
cathode
4
FEATURES
• Ultrafast recovery time
• Low forward voltage drop
• Low leakage current
• 175 °C operating junction temperature
TO-252AA (D-PAK)
2
Common
cathode
1
3
Anode
Anode
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESCRIPTION / APPLICATIONS
PRODUCT SUMMARY
Package
I
F(AV)
V
R
V
F
at I
F
t
rr
typ.
T
J
max.
Diode variation
TO-252AA (D-PAK)
2x3A
200 V
0.96 V
See Recovery table
175 °C
Common cathode
VS-MURD620CT-M3 is the state of the art ultrafast recovery
rectifier specifically designed with optimized performance of
forward voltage drop and ultrafast recovery time.
The planar structure and the platinum doped life time
control, guarantee the best overall performance,
ruggedness and reliability characteristics.
These devices are intended for use in the output rectification
stage of SMPS, UPS, DC/DC converters as well as
freewheeling diode in low voltage inverters and chopper
motor drives.
Their extremely optimized stored charge and low recovery
current minimize the switching losses and reduce over
dissipation in the switching element and snubbers.
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Peak repetitive reverse voltage
Average rectified forward current per device
Non-repetitive peak surge current
Peak repetitive forward current per diode
Operating junction and storage temperatures
SYMBOL
V
RRM
I
F(AV)
I
FSM
I
FM
T
J
, T
Stg
Rated V
R
, square wave, 20 kHz, T
C
= 146 °C
Total device, rated V
R
, T
C
= 146 °C
TEST CONDITIONS
MAX.
200
6
50
6
-65 to +175
°C
A
UNITS
V
ELECTRICAL SPECIFICATIONS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
Breakdown voltage,
blocking voltage
SYMBOL
V
BR
,
V
R
I
R
= 100 μA
I
F
= 3 A
Forward voltage
V
F
I
F
= 3 A, T
J
= 125 °C
I
F
= 6 A
I
F
= 6 A, T
J
= 125 °C
Reverse leakage current
Junction capacitance
Series inductance
I
R
C
T
L
S
V
R
= V
R
rated
T
J
= 125 °C, V
R
= V
R
rated
V
R
= 200 V
Measured lead to lead 5 mm from package body
TEST CONDITIONS
MIN.
200
-
-
-
-
-
-
-
-
TYP.
-
-
-
-
-
-
-
12
8.0
MAX.
-
1.0
0.96
1.2
1.13
5
250
-
-
μA
pF
nH
V
UNITS
Revision: 05-Oct-16
Document Number: 93497
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-MURD620CT-M3
www.vishay.com
Vishay Semiconductors
DYNAMIC RECOVERY CHARACTERISTICS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
I
F
= 1.0 A, dI
F
/dt = 50 A/μs, V
R
= 30 V
Reverse recovery time
t
rr
I
F
= 0.5 A, I
R
= 1.0 A, I
REC
= 0.25 A
T
J
= 25 °C
T
J
= 125 °C
Peak recovery current
I
RRM
Q
rr
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
I
F
= 3 A
dI
F
/dt = 200 A/μs
V
R
= 160 V
MIN.
-
-
-
-
-
-
-
-
TYP.
-
-
19
26
3.1
4.6
30
60
MAX.
35
25
-
-
-
-
-
-
A
ns
UNITS
Reverse recovery charge
nC
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and
storage temperature range
Thermal resistance,
junction to case per leg
Thermal resistance,
junction to ambient per leg
Thermal resistance,
case to heatsink
Weight
Mounting torque
Marking device
Case style D-PAK
SYMBOL
T
J
, T
Stg
R
thJC
R
thJA
R
thCS
Mounting surface, flat, smooth, and greased
TEST CONDITIONS
MIN.
-65
-
-
-
-
-
6.0
(5.0)
TYP.
-
-
-
-
0.3
0.01
-
MAX.
175
9.0
80
-
-
-
12
(10)
g
oz.
kgf · cm
(lbf · in)
°C/W
UNITS
°C
MURD620CT
Revision: 05-Oct-16
Document Number: 93497
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-MURD620CT-M3
www.vishay.com
Vishay Semiconductors
100
T
J
= 175 °C
10
T
J
= 150 °C
T
J
= 125 °C
T
J
= 100 °C
0.1
T
J
= 25 °C
I
F
- Instantaneous Forward Current (A)
100
10
I
R
- Reverse Current (µA)
1
1
T
J
= 175 °C
T
J
= 150 °C
T
J
= 25 °C
0.01
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.001
0
50
100
150
200
V
F
- Forward Voltage Drop (V)

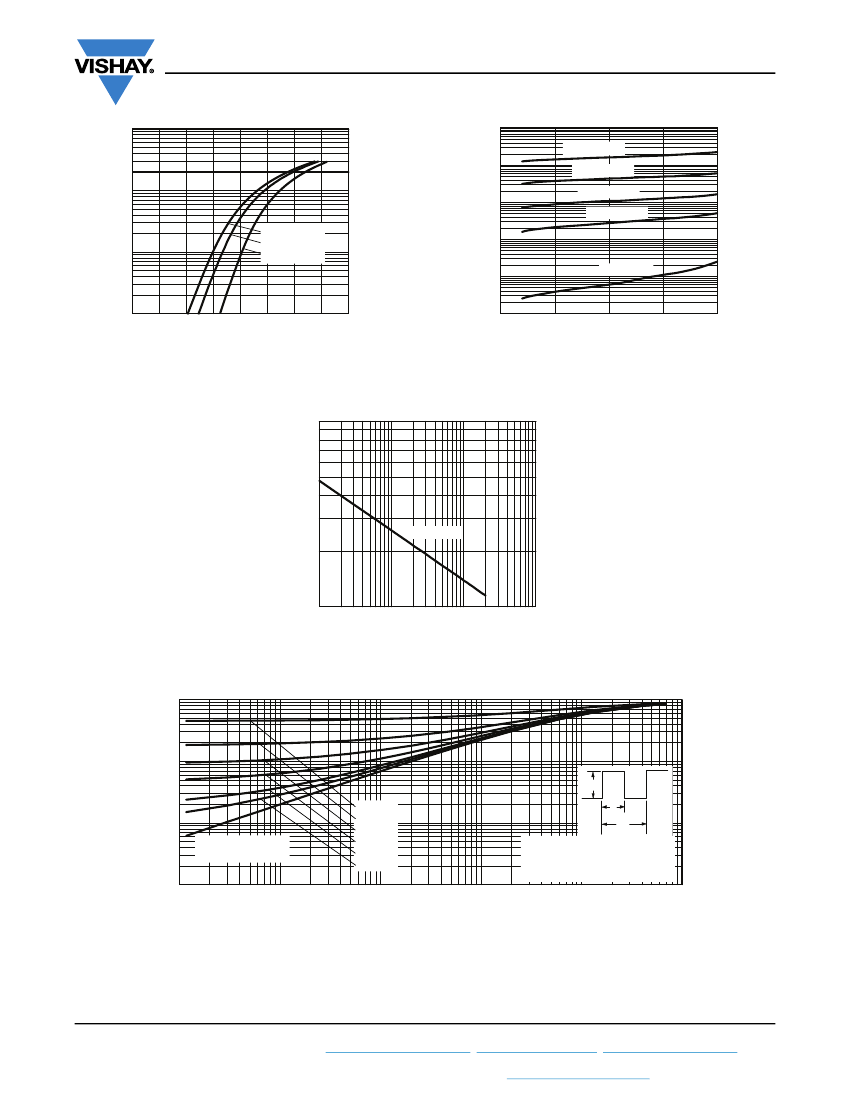

Fig. 1 - Typical Forward Voltage Drop Characteristics
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
100
C
T
- Junction Capacitance (pF)
T
J
= 25 °C
10
1
10
100
1000
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
Z
thJC
- Thermal Impedance (°C/W)
10
1
P
DM
0.1
Single pulse
(thermal resistance)
0.01
0.00001
D = 0.50
D = 0.20
D = 0.10
D = 0.05
D = 0.02
D = 0.01
0.001
0.01
t
1
t
2
Notes:
1. Duty factor D = t
1
/t
2
.
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.1
.
1
0.0001
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
Revision: 05-Oct-16
Document Number: 93497
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-MURD620CT-M3
www.vishay.com
180
50
V
R
= 30 V
T
J
= 125 °C
T
J
= 25 °C
I
F
= 3 A
I
F
= 6 A
30
Vishay Semiconductors
Allowable Case Temperature (°C)
170
40
160
DC
150
140
130
See note (1)
120
0
1
2
3
4
5
10
100
Square wave (D = 0.50)
Rated V
R
applied
t
rr
(ns)
20
1000
I
F(AV)
- Average Forward Current (A)

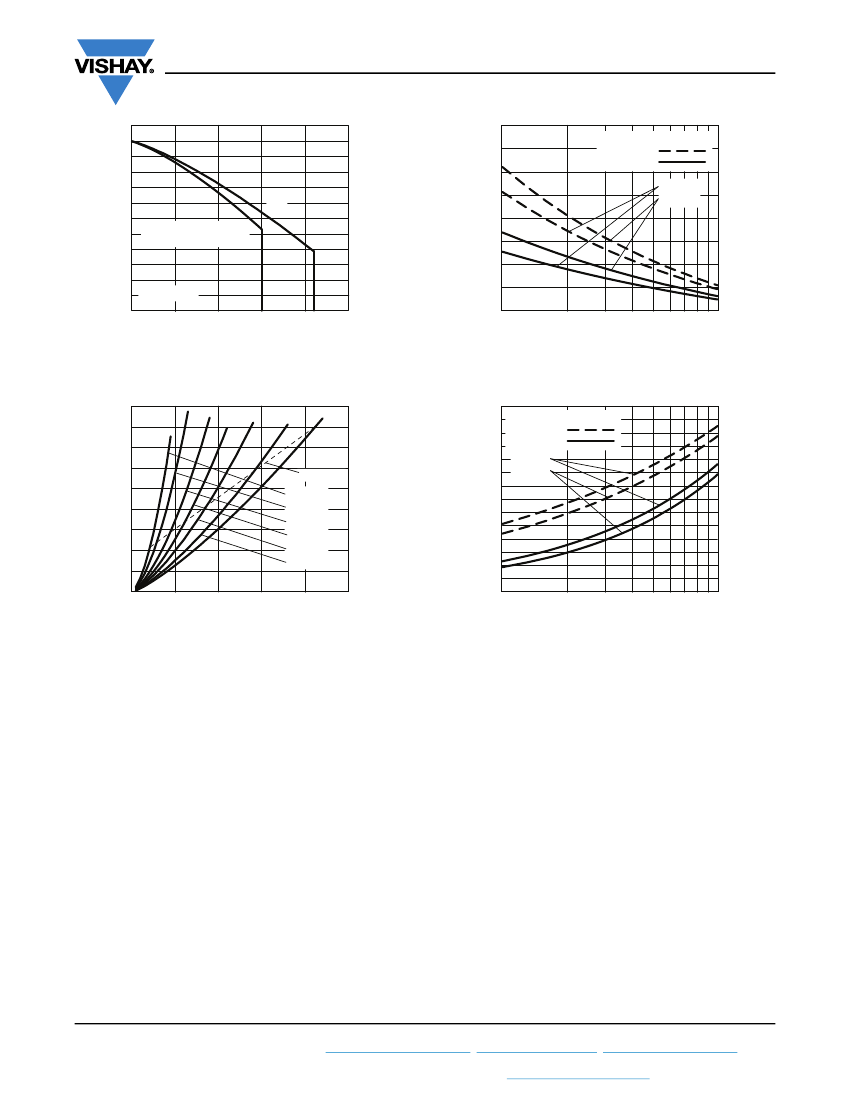

Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
4.5
4.0
dI
F
/dt (A/µs)
Fig. 7 - Typical Reverse Recovery Time vs. dI
F
/dt
140
120
100
V
R
= 30 V
T
J
= 125 °C
T
J
= 25 °C
I
F
= 6 A
I
F
= 3 A
Average Power Loss (W)
3.5
3.0
2.5
2.0
1.5
1.0
DC
0.5
0
0
1
2
3
4
5
RMS limit
D = 0.01
D = 0.02
D = 0.05
D = 0.10
D = 0.20
D = 0.50
Q
rr
(nC)
80
60
40
20
0
100
1000
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
dI
F
/dt (A/µs)
Fig. 8 - Typical Stored Charge vs. dI
F
/dt
Note
(1)
Formula used: T = T - (Pd + Pd
C
J
REV
) x R
thJC
;
Pd = forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= rated V
R
Revision: 05-Oct-16
Document Number: 93497
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-MURD620CT-M3
www.vishay.com
Vishay Semiconductors
V
R
= 200 V
0.01
Ω
L = 70 μH
D.U.T.
dI
F
/dt
adjust
D
G
IRFP250
S
Fig. 9 - Reverse Recovery Parameter Test Circuit
(3)
I
F
0
t
rr
t
a
t
b
Q
rr
(2)
(4)
I
RRM
0.5 I
RRM
dI
(rec)M
/dt
(5)
0.75 I
RRM
(1)
dI
F
/dt
(1) dI
F
/dt - rate of change of current
through zero crossing
(2) I
RRM
- peak reverse recovery current
(3) t
rr
- reverse recovery time measured
from zero crossing point of negative
going I
F
to point where a line passing
through 0.75 I
RRM
and 0.50 I
RRM
extrapolated to zero current.
(4)
Q
rr
- area under curve defined by t
rr
and I
RRM
Q
rr
=
t
rr
x I
RRM
2
(5) dI
(rec)M
/dt - peak rate of change of
current during t
b
portion of t
rr
Fig. 10 - Reverse Recovery Waveform and Definitions
Revision: 05-Oct-16
Document Number: 93497
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
