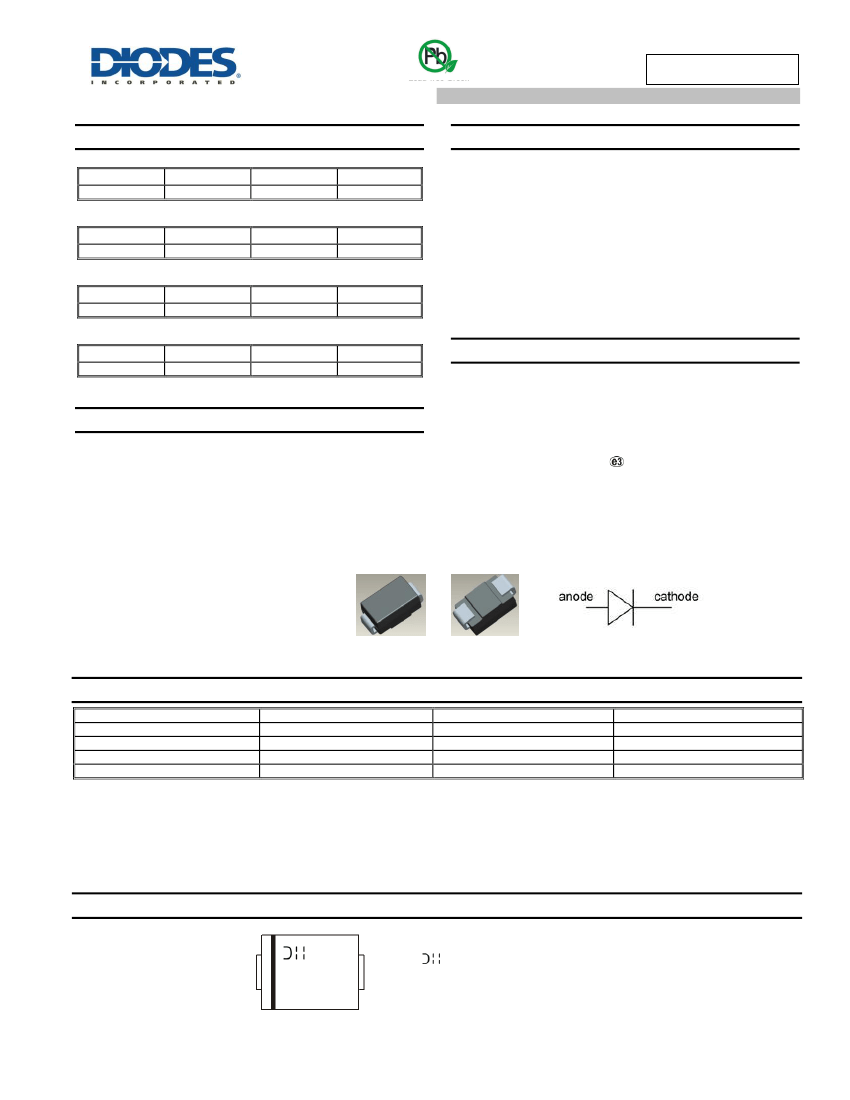

Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
For Use in Low Voltage Drop, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
High Temperature Soldering: +260°
C/10 Second at Terminal
Lead-Free Finish & RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
I
O
(A)
1.0
V
F max
(V)
0.79
I
R max
(mA)
0.5
I
O
(A)
1.0
V
F max
(V)
0.79
I
R max
(mA)
0.5
I
O
(A)
1.0
V
F max
(V)
0.79
I
R max
(mA)
0.5
Mechanical Data
Case: SMA
Case Material: Molded Plastic. "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.064 grams (Approximate)
Applications
Polarity Protection Diode
Re-Circulating Diode
Blocking Diode
DC-DC
AC-DC
SMA
Top View
Bottom View
Ordering Information
(Note 5)
Part Number
B170Q-13-F
B180Q-13-F
B190Q-13-F
B1100Q-13-F
Notes:
Compliance
Automotive
Automotive
Automotive
Automotive
Case
SMA
SMA
SMA
SMA
Packaging
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to https://www.diodes.com/quality/.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
