CZRF52C20-HF Overview

Zener Diodes 0.20W, VR=20V

CZRF52C20-HF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	50 Ω
JESD-609 code	e4
Number of components	1
Maximum operating temperature	125 °C
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.2 W
Nominal reference voltage	20 V
surface mount	YES
Terminal surface	Gold (Au)
Maximum time at peak reflow temperature	30
Maximum voltage tolerance	5%
Working test current	5 mA
Base Number Matches	1

Preview

Download Datasheet

View All

SMD Zener Diode

CZRF52C2-HF Thru. CZRF52C39-HF

Voltage 2 to 39 Volts

Power 350 mWatts

RoHS Device

Halogen Free

Features

- 350mW Power Dissipation.

- High Voltages from 2 ~ 39 V.

- Designed for mounting on small surface.

- Extremely thin/leadless package.

- Pb free product.

0.035(0.90)

0.027(0.70)

0.051(1.30)

0.043(1.10)

1005/SOD-323F

0.102(2.60)

0.095(2.40)

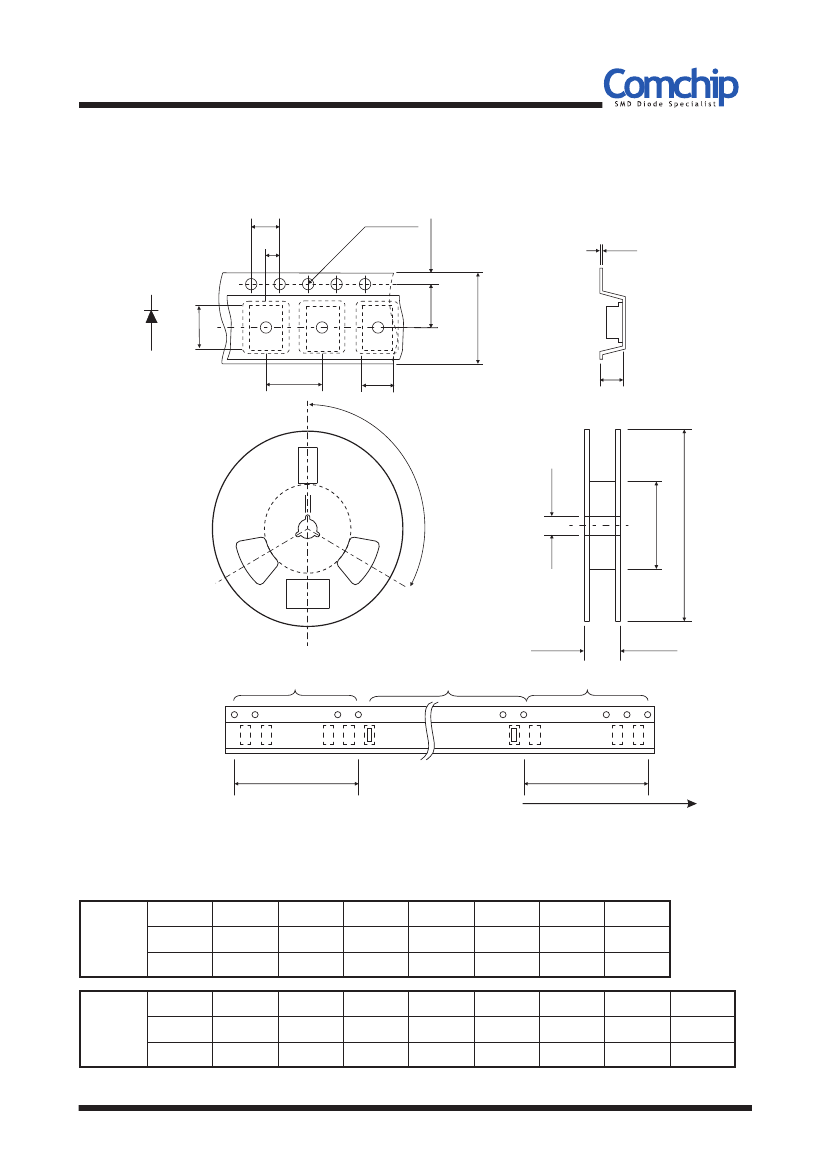

Mechanical data

- Case: 1005/SOD-323F Standard package

Molded plastic.

0.020(0.50) Typ.

0.012 (0.30) Typ.

- Terminals: Gold plated, solderable per

MIL-STD-750,method 2026.

- Polarity: Indicated by cathode band.

0.040(1.00) Typ.

Dimensions in inches and (millimeter)

- Weight: 0.006 gram(approx.).

Circuit Diagram

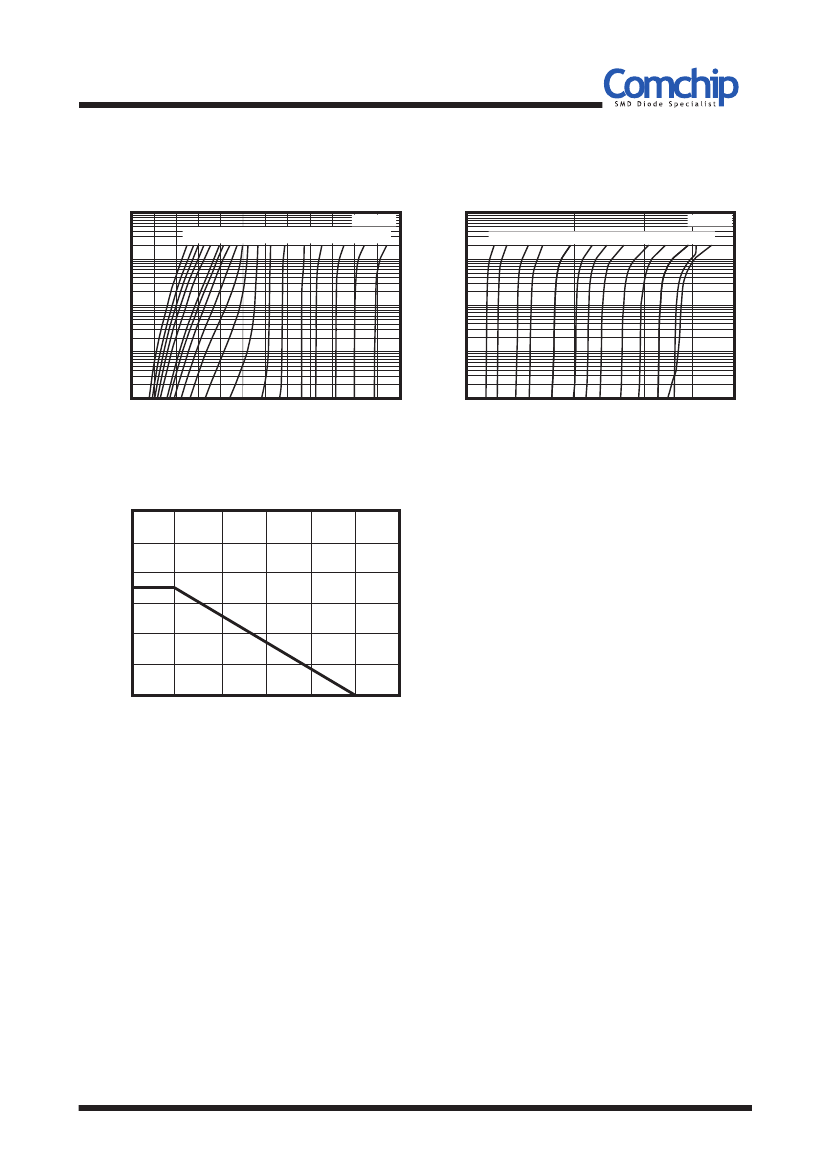

Maximum Rating And Electrical Characteristics

(at TA=25°C unless otherwise noted)

Parameter

Maximum Forward Voltage Drop at I

= 10 mA

Maximum Power Dissipation at 25 °C

Forward current , surge peak

8.3 ms single half sine-wave superimposed

on rate load( JEDEC method )

Peak ESD voltage capability (IEC 61000-4-2)

Operating Junction and Storage Temperature Range

Symbol

Value

0.9

350

Unit

FSM

2.0

-55 to +125

°C

Company reserves the right to improve product design , functions and reliability without notice.

QW-G2004

REV:B

Page 1

Comchip Technology CO., LTD.
