3.3GHz to 3.6GHz 2W POWER AMPLIFIER

Package: QFN, 6mmx6mm

Product Description

RFMD’s SZM-3166Z is a high linearity class AB Heterojunction Bipolar Transistor (HBT) amplifier

housed in a low-cost surface-mountable plastic Q-FlexN multi-chip module package. This HBT

amplifier is made with InGaP on GaAs device technology and fabricated with MOCVD for an

ideal combination of low cost and high reliability. This product is specifically designed for

802.16 customer premises equipment (CPE) terminals in the 3.3GHz to 3.6GHz bands. It can

run from a 3V to 5.2V supply. The external output match and bias adjustability allows load line

optimization for other applications covering 3.5GHz to 3.8GHz. It features an output power

detector, on/off power control and high RF overdrive robustness. A 20dB step attenuator fea-

ture can be utilized by switching the second stage Power up/down control. This product fea-

tures a RoHS compliant and Green package with matte tin finish, designated by the ‘Z’ suffix.

Optimum Technology

Matching® Applied

GaAs HBT

GaAs MESFET

Vcc = 5V

Features



P

1dB

=35dBm at 5.2V

Three Stages of Gain:35dB

802.11g 54Mb/s Class AB Perfor-

mance

P

OUT

=27dBm at 2.5% EVM, V

CC

5.2V, 900mA

Active Bias with Adjustable Current

On-Chip Output Power Detector

Low Thermal Resistance

Power Up/Down Control <1s

Attenuator Step 20dB at V

PC2

=0V

Class 1C ESD Rating





InGaP HBT

SiGe BiCMOS

Si BiCMOS

SiGe HBT

GaAs pHEMT

Si CMOS

Si BJT

GaN HEMT

RF MEMS

Power

Up/Down

Control

Power

Detector

Vbias = 5V

Stage 1

Bias

Stage 2

Bias

Stage 3

Bias

RFIN

RFOUT

Applications



802.16 WiMAX Driver or Output

Stage

Fixed Wireless, WLL

CPE Terminal Applications

Parameter

Frequency of Operation

Output Power at 1dB Compression

Gain

% EVM

Third Order Suppression

Noise Figure

Worst Case Input Return Loss

Worst Case Output Return Loss

Supply voltage rang

Output Voltage Range

Quiescent Current

Power Up Control Current

V

CC

Leakage Current

Min.

3300

32.0

Specification

Typ.

34.5

35.0

2.5

-42

5.0

14.0

9.0

5.2

0.9 to 2.2

800

5.0

Max.

3600

38.0

-37

Unit

MHz

dBm

%

dBc

dB

V

Condition

3.5Ghz

3.5Ghz, P

OUT

=26dBm

3.5GHz, P

OUT

=27dBm, 802.11g 54Mb/s

3.5GHz, P

OUT

=23dBm per tone

3.5GHz

2.3GHz to 3.5GHz

P

OUT

=10dBm to 33dBm

V

CC

=5.2V

V

PC

=5.2V, I

VCP1

+I

VPC2

+I

VPC3

V

CC

=5.2V, V

PC

=0V

junction - lead

11.0

6.0

720

880

0.1

mA



°C/W

Thermal Resistance

12.0

Test Conditions: Z

0

=50, V

CC

=5.2V, I

Q

=800mA, T

BP

=30°C

RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trade-

mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2006, RF Micro Devices, Inc.

DS110620

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical

support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.

1 of 12

SZM-3166Z

Absolute Maximum Ratings

Parameter

VC3 Collector Bias Current (I

VC3

)

VC2 Collector Bias Current (I

VC2

)

VC1 Collector Bias Current (I

VC1

)

**Device Voltage (V

D

)

Power Dissipation (P

DISS

)

Operating Temp Range (T

L

)

*Max RF output Power for 50 con-

tinuous long term operation

Max RF Input Power (CW) for 50

output load

Max RF input Power for 10:1 VSWR

output load

Max Storage Temp

Operating Junction Temperature (T

J

)

ESD Rating - Human Body Model

(HBM)

Rating

1500

600

300

9.0

6

-40 to +85

30

29

5

+150

Class IC

Unit

mA

V

W

°C

dBm

°C

Caution! ESD sensitive device.

Exceeding any one or a combination of the Absolute Maximum Rating conditions may

cause permanent damage to the device. Extended application of Absolute Maximum

Rating conditions to the device may reduce device reliability. Specified typical perfor-

mance or functional operation of the device under Absolute Maximum Rating condi-

tions is not implied.

RoHS status based on EUDirective2002/95/EC (at time of this document revision).

The information in this publication is believed to be accurate and reliable. However, no

responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any

infringement of patents, or other rights of third parties, resulting from its use. No

license is granted by implication or otherwise under any patent or patent rights of

RFMD. RFMD reserves the right to change component circuitry, recommended appli-

cation circuitry and specifications at any time without prior notice.

*With specified application circuit

**No RF Drive

Operation of this device beyond any one of these limits may cause permanent dam-

age. For reliable continuous operation, the device voltage and current must not

exceed the maximum operating values specified in the table on page one.

Bias Conditions should also satisfy the following expression:

I

D

V

D

<(T

J

-T

L

)/R

TH

,

j-l

Typical Performance 3.3GHz to 3.6GHz App Circuit (V

CC

=5.2V, I

CQ

=800mA, *802.11g 54Mb/s 64QAM)

Parameter

Unit

dB

dBm

%

mA

dB

3.3GHz 3.4GHz 3.5GHz 3.6Ghz 3.7GHz 3.8GHz

35

34.0

2.7

930

14.0

9

35

34.5

2.5

930

15.0

10

35

35.0

2.5

920

15.5

10

35

34.5

2.6

893

17.0

9

33

34.0

3.1

910

18.5

8

31.5

33.0

4.0

885

15.5

7

Gain @ P

OUT

=26dBm

P

1dB

% EVM @ P

OUT

=27dBm*

Current @ P

OUT

2.5% EVM*

Input Return Loss

Output Return Loss

Simplified Device Schematic

C2B

VB3B

NC

VC2B

C1B

NC

VBIAS3

NC

31

30

GND

VC1

VBIAS12

NC

RFIN

NC

VPC1

VPC2

GND

40

1

GND

NC

RFOUT

NC

GND

10

11

20

21

NC

VC2A

C1A

C2A

VB3A

NC

VPC3

2 of 12

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical

support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.

VDET

DS110620

SZM-3166Z

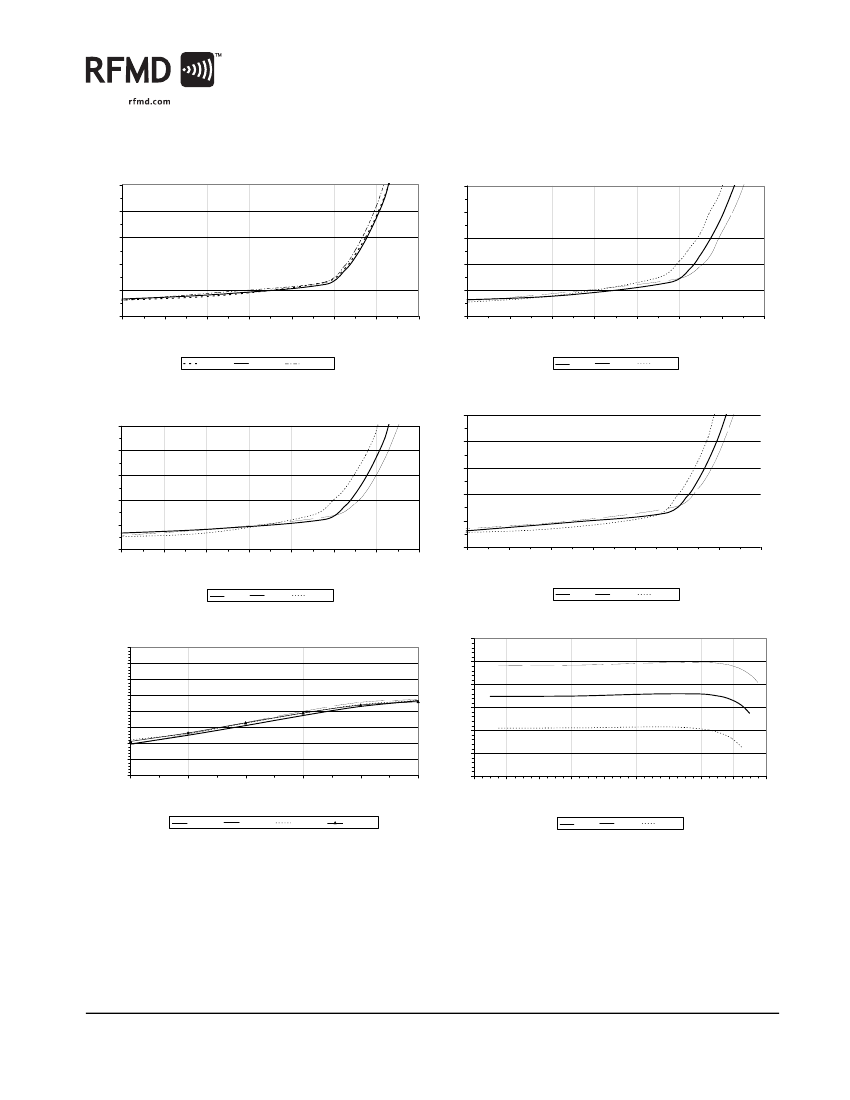

Measured

3.3GHz to 3.6GHz Application Circuit Data (V

CC

=V

PC

=5.2V, I

Q

=800mA, T=25°C)

EVM vs Frequency, T=+25C

802.11g, OFDM 54Mb/s, 64QAM

5

4

EVM(%)

EVM vs Pout, F=3.4GHz

802.11g, OFDM 54Mb/s, 64QAM

5

4

EVM(%)

3

2

1

0

3

2

1

0

16

18

20

22

24

26

28

30

Pout(dBm)

3.4GHz

3.5GHz

3.6GHz

16

18

20

22

24

26

28

30

Pout(dBm)

-40C

+25C

+85C

EVM vs Pout, F=3.5GHz

802.11g, OFDM 54Mb/s, 64QAM

5

EVM vs Pout, F=3.6GHz

802.11g, OFDM 54Mb/s, 64QAM

5

4

EVM(%)

3

2

1

0

16

18

20

22

24

26

28

30

Pout(dBm)

-40C

+25C

+85C

EVM(%)

3

2

1

0

16

18

20

22

24

26

28

30

Pout(dBm)

-40C

+25C

+85C

IM3 vs Pout (2 Tone Avg.), T=+25C

Tone Spacing = 1MHz

-25

-30

-35

IM3(dBc)

-40

-45

-50

-55

-60

-65

18

20

22

Pout(dBm)

3.4GHz

3.5GHz

3.6GHz

3.7GHz

24

26

28

Typical Gain vs Pout, F=3.4GHz

40

38

36

34

32

30

28

18

20

22

24

26

28

30

32

34

36

Pout(dBm)

Gain(dB)

-40C

+25C

+85C

DS110620

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical

support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.

3 of 12

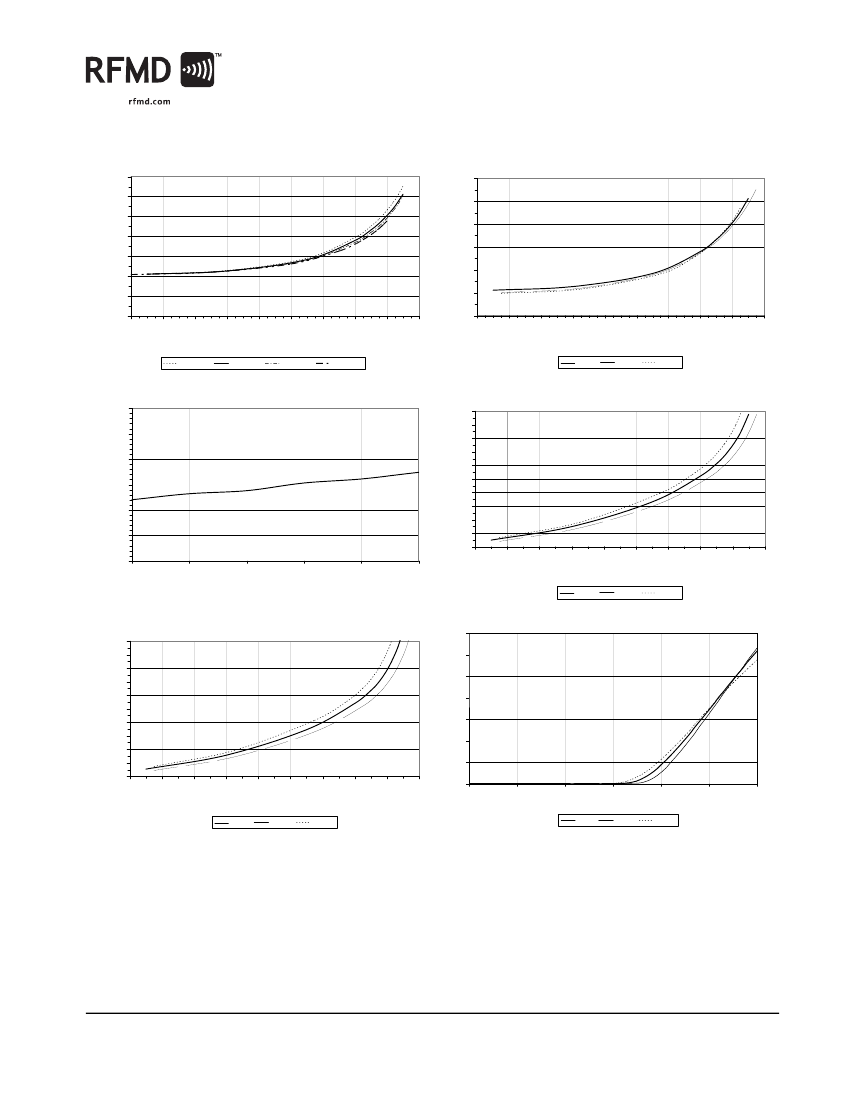

SZM-3166Z

Measured 3.3GHz to 3.6GHz Application Circuit Data (V

CC

=V

PC

=5.2V, I

Q

=800mA, T=25°C)

Typical Gain vs Pout, F=3.5GHz

40

38

Gain(dB)

Typical Gain vs Pout, F=3.6GHz

40

38

Gain(dB)

36

34

32

30

28

36

34

32

30

28

18

20

22

24

26

28

30

32

34

36

Pout(dBm)

-40C

+25C

+85C

18

20

22

24

26

28

30

32

34

36

Pout(dBm)

-40C

+25C

+85C

Narrowband S11 - Input Return Loss

-5

50

45

-10

40

S11(dB)

S21(dB)

-15

35

30

-20

25

-25

3.3

3.4

3.5

3.6

3.7

3.8

Frequency(GHz)

-40C

+25C

+85C

20

3.3

Narrowband S21 - Forward Gain

3.4

3.5

3.6

3.7

3.8

Frequency(GHz)

-40C

+25C

+85C

Narrowband S12 - Reverse Isolation

-40

-50

S12(dB)

-60

-70

-80

-90

3.3

3.4

3.5

3.6

3.7

3.8

Frequency(GHz)

-40C

+25C

+85C

Narrowband S22 - Output Return Loss

0

-5

S22(dB)

-10

-15

-20

3.3

3.4

3.5

3.6

3.7

3.8

Frequency(GHz)

-40C

+25C

+85C

4 of 12

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical

support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.

DS110620

SZM-3166Z

Measured 3.3GHz to 3.6GHz Application Circuit Data (V

CC

=V

PC

=5.2V, I

Q

=800mA, T=25°C)

DC Supply Current vs Pout, T=+25C

1.8

1.6

1.4

Idc(A)

1.2

1

0.8

0.6

0.4

18

20

22

24

26

28

30

32

34

36

Pout(dBm)

3.4GHz

3.5GHz

3.6GHz

3.7GHz

-40C

1.8

1.6

1.4

1.2

1

0.8

0.6

18

20

22

24

26

28

30

32

34

36

Pout(dBm)

+25C

+85C

DC Supply Current vs Pout, F=3.5GHz

Noise Figure vs Frequency, T=+25C

6.5

6

5.5

NF(dB)

5

4.5

4

3.5

3.3

3.4

3.5

3.6

3.7

3.8

Frequency(GHz)

RF Power Detector (Vdet) vs Pout, F=3.5GHz

3

2.8

2.6

2.4

Vdet(V)

2.2

2

1.8

1.6

1.4

1.2

1

18

20

22

24

26

28

30

32

34

36

Pout(dBm)

-40C

+25C

+85C

RF Power Detector (Vdet) vs Pout, F=3.6GHz

1.4

Icq vs Vpc, Vcc=5.2V, swept Vpc

3

2.8

2.6

2.4

Vdet(V)

2

1.8

1.6

1.4

1.2

1

18

20

22

24

26

28

30

32

34

36

Pout(dBm)

-40C

+25C

+85C

0.2

0

1

2

3

Vpc(V)

4

5

6

Icq(A)

1.2

1

0.8

0.6

0.4

2.2

-40c

+25c

+85c

DS110620

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical

support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.

5 of 12

Parameter Name	Attribute value
Product Category	RF Amplifier
Manufacturer	Qorvo
RoHS	Details
Type	Wi-Fi Power Amplifier
Operating Frequency	3.3 GHz to 3.6 GHz
Gain	35 dB
NF - Noise Figure	5 dB
P1dB - Compression Point	34.5 dBm
Test Frequency	3.5 GHz
Operating Supply Voltage	5.2 V
Operating Supply Current	800 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	QFN-40
Packaging	Reel
Development Kit	SZM3166ZPCK-EVB1
Frequency Range	3.3 GHz to 3.6 GHz
Input Return Loss	14 dB
Pd - Power Dissipation	6 W
Factory Pack Quantity	1000
Technology	GaAs InGaP

SZM3166Z
