BYG22A-M3/HM3, BYG22B-M3/HM3, BYG22D-M3/HM3
www.vishay.com
Vishay General Semiconductor
Ultrafast Avalanche SMD Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated junction
• Low reverse current
• Low forward voltage
• Soft recovery characteristic
• Ultra fast reverse recovery time
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912

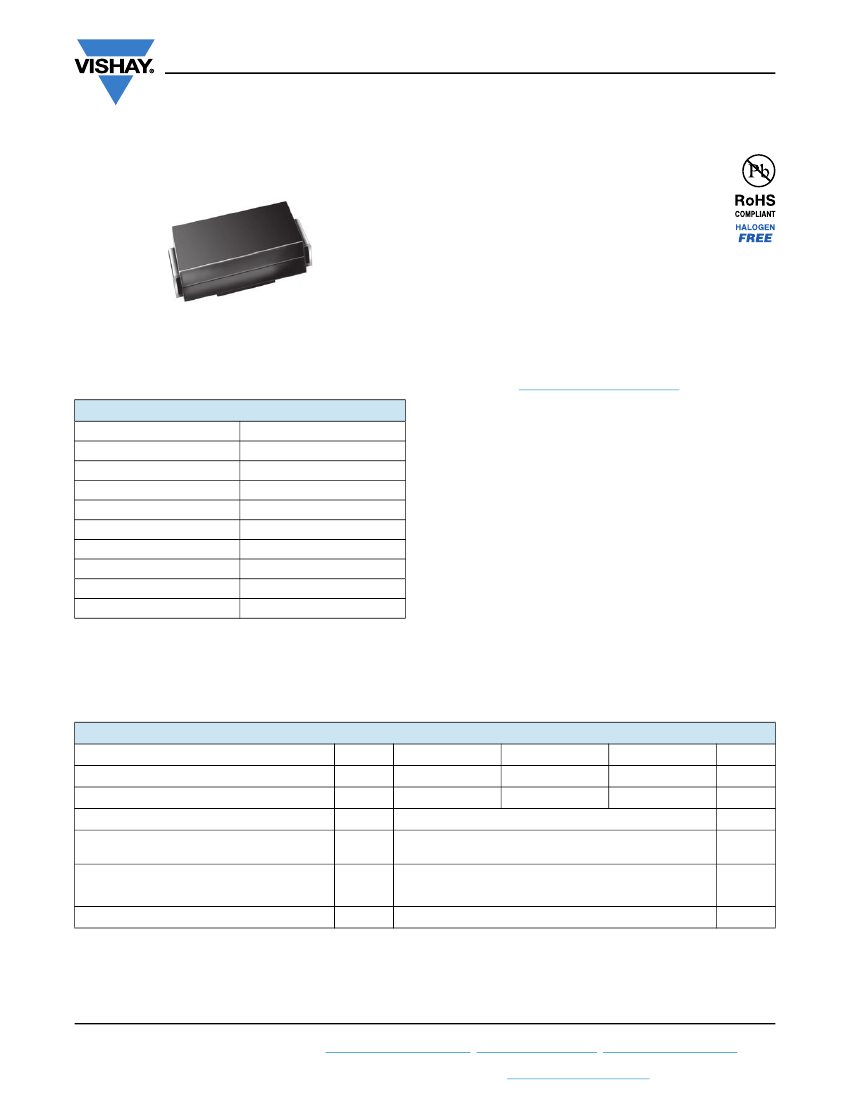

DO-214AC (SMA)
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
I
R
V
F
t
rr
E
R
T
J
max.
Package
Diode variations
2.0 A
50 V, 100 V, 200 V
35 A
1.0 μA
1.1 V
25 ns
20 mJ
150 °C
DO-214AC (SMA)
Single die
TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, automotive and telecommunication.
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
Polarity:
Color band denotes the cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Average forward current
Peak forward surge current 10 ms single half
sine-wave superimposed on rated load
Pulse energy in avalanche mode,
non repetitive (inductive load switch off)
I
(BR)R
= 1 A, T
J
= 25 °C
Operating junction and storage temperature range
V
RRM
I
F(AV)
I
FSM
E
R
T
J
, T
STG
SYMBOL
BYG22A
BYG22A
50
BYG22B
BYG22B
100
2.0
35
BYG22D
BYG22D
200
V
A
A
UNIT
20
-55 to +150
mJ
°C
Revision: 20-May-14
Document Number: 89474
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYG22A-M3/HM3, BYG22B-M3/HM3, BYG22D-M3/HM3
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
Maximum reverse current
Maximum reverse recovery time
TEST CONDITIONS
I
F
= 1.0 A
I
F
= 2.0 A
V
R
= V
RRM
T
J
= 25 °C
T
J
= 25 °C
T
J
= 100 °C
SYMBOL
V
F (1)
BYG22A
BYG22B
1.0
1.1
1
10
25
BYG22D
UNIT
V
I
R
t
rr
µA
ns
I
F
= 0.5 A, I
R
= 1.0 A, I
rr
= 0.25 A
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum thermal resistance, junction to lead, T
L
= const.
SYMBOL
R
JL
R
JA
(1)
Maximum thermal resistance, junction to ambient
R
JA
(2)
R
JA
(3)
Notes
Mounted on epoxy-glass hard tissue
(2)
Mounted on epoxy-glass hard tissue, 50 mm
2
35 μm Cu
(3)
Mounted on Al-oxide-ceramic (Al O ), 50 mm
2
35 μm Cu
2 3
(1)
BYG22A
BYG22B
25
150
125
100
BYG22D
UNIT
°C/W
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
BYG22A-M3/TR
BYG22A-M3/TR3
BYG22AHM3/TR
(1)
BYG22AHM3/TR3
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.064
0.064
0.064
0.064
PREFERRED PACKAGE CODE
TR
TR3
TR
TR3
BASE QUANTITY
1800
7500
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel

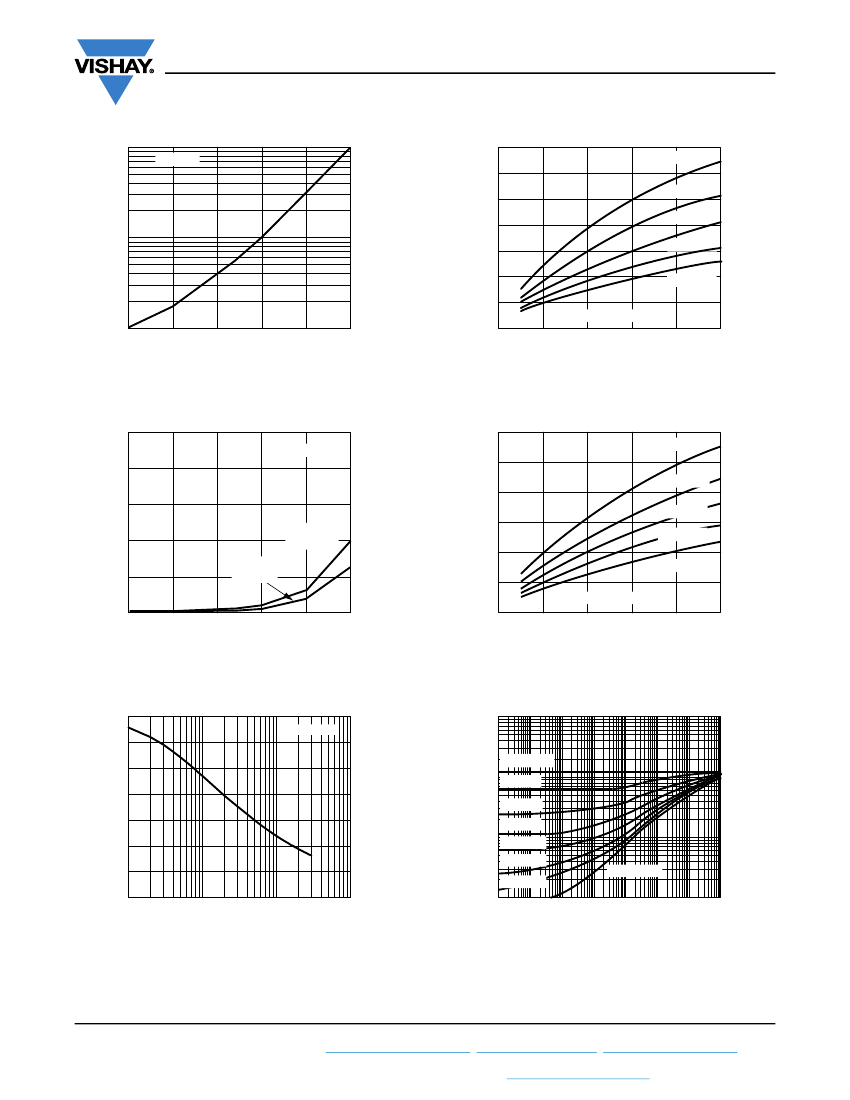

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
10
2.5
V
R
=
V
RRM
Half Sine-Wave
2.0
R
θJA
≤
25 K/W
1.5
Forward Current (A)
1
T
J
= 150 °C
T
J
= 25 °C
0.1
Average Forward Current (A)
1.0
R
θJA
≤
125 K/W
0.01
0.5
R
θJA
≤
150 K/W
0.001
0.0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0
20
40
60
80
100
120
140
160
Forward
Voltage
(V)
Ambient Temperature (°C)
Fig. 1 - Forward Current vs. Forward Voltage
Fig. 2 - Max. Average Forward Current vs. Ambient Temperature
Revision: 20-May-14
Document Number: 89474
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYG22A-M3/HM3, BYG22B-M3/HM3, BYG22D-M3/HM3
www.vishay.com
Vishay General Semiconductor
140
100
V
R
=
V
RRM
T
A
= 125 °C
Reverse Recovery Time (ns)
120
100
80
60
40
20
I
R
= 0.5 A, i
R
= 0.125 A
0
T
A
= 100 °C
T
A
= 75 °C
T
A
= 50 °C
Reverse Current (µA)
10
T
A
= 25 °C
1
25
50
75
100
125
150
0
0.2
0.4
0.6
0.8
1.0
Junction Temperature (°C)
Forward Current (A)
Fig. 3 - Reverse Current vs. Junction Temperature
Fig. 6 - Max. Reverse Recovery Time vs. Forward Current
50
60
Reverse Power Dissipation (mW)
Reverse Recovery Charge (nC)
V
R
=
V
RRM
40
T
A
= 125 °C
50
T
A
= 100 °C
40
T
A
= 75 °C
30
T
A
= 50 °C
20
T
A
= 25 °C
10
I
R
= 0.5 A, i
R
= 0.125 A
30
P
R
- Limit
at 100 %
V
R
P
R
- Limit
at
80
%
V
R
20
10
0
25
50
75
100
125
150
0
0
0.2
0.4
0.6
0.8
1.0
Junction Temperature (°C)
Forward Current (A)
Fig. 4 - Max. Reverse Power Dissipation vs. Junction Temperature
Fig. 7 - Max. Reverse Recovery Charge vs. Forward Current
70
f = 1 MHz
60
Thermal Resistance for Pulse Cond. (K/W)
1000
Diode Capacitance (pF)
50
40
30
20
10
0
0.1
1
10
100
125 K/W DC
100
t
p
/T = 0.5
t
p
/T = 0.2
t
p
/T = 0.1
10
t
p
/T = 0.05
t
p
/T = 0.02
Single Pulse
t
p
/T = 0.01
1
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
Reverse
Voltage
(V)
Pulse Length (s)
Fig. 5 - Diode Capacitance vs. Reverse Voltage
Fig. 8 - Thermal Response
Revision: 20-May-14
Document Number: 89474
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYG22A-M3/HM3, BYG22B-M3/HM3, BYG22D-M3/HM3
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AC (SMA)
Cathode Band
Vishay General Semiconductor
Mounting Pad Layout
0.066 (1.68)
MIN.
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 20-May-14
Document Number: 89474
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
