NB2308AI4DTG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> NB2308AI4DTG

NB2308AI4DTG: Categorylogic logic; File Size187KB，12 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric View All

NB2308AI4DTG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NB2308AI4DTG	-	-	View	Buy Now

NB2308AI4DTG Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	TSSOP
package instruction	LEAD FREE, TSSOP-16
Contacts	16
Manufacturer packaging code	948F-01
Reach Compliance Code	compliant
Is Samacsys	N
series	2308
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	5 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER
MaximumI(ol)	0.008 A
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs
Number of terminals	16
Actual output times	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3.3 V
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.2 ns
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	4.4 mm
minfmax	15 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

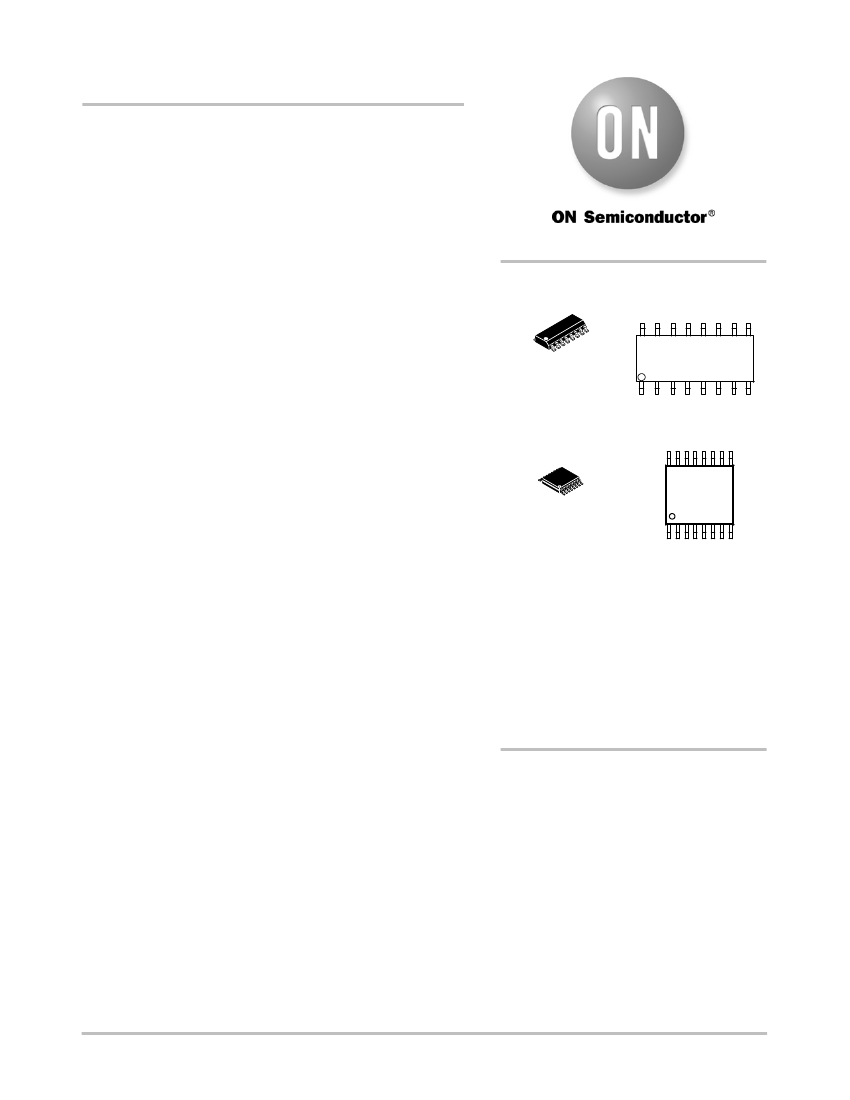

NB2308A

3.3 V Zero Delay

Clock Buffer

The NB2308A is a versatile, 3.3 V zero delay buffer designed to

distribute high-

-speed clocks. It is available in a 16 pin package. The

part has an on-

-chip PLL which locks to an input clock presented on

the REF pin. The PLL feedback is required to be driven to FBK pin,

and can be obtained from one of the outputs. The input- -output

-to-

propagation delay is guaranteed to be less than 250 ps, and the

output- -output skew is guaranteed to be less than 200 ps.

-to-

The NB2308A has two banks of four outputs each, which can be

controlled by the select inputs as shown in the Select Input Decoding

Table. If all the output clocks are not required, Bank B can be

three-

-stated. The select input also allows the input clock to be directly

applied to the outputs for chip and system testing purposes.

Multiple NB2308A devices can accept the same input clock and

distribute it. In this case the skew between the outputs of the two

devices is guaranteed to be less than 700 ps.

The NB2308A is available in five different configurations (Refer to

NB2308A Configurations Table). The NB2308AI1 is the base part,

where the output frequencies equal the reference if there is no counter

in the feedback path. The NB2308AI1H is the high-

-drive version of

the - and the rise and fall times on this device are much faster.

-1

The NB2308AI2 allows the user to obtain 2X and 1X frequencies on

each output bank. The exact configuration and output frequencies

depends on which output drives the feedback pin. The NB2308AI3

allows the user to obtain 4X and 2X frequencies on the outputs.

The NB2308AI4 enables the user to obtain 2X clocks on all outputs.

Thus, the part is extremely versatile, and can be used in a variety of

applications.

The NB2308AI5H is a high-

-drive version with REF/2 on both

banks.

Features

http://onsemi.com

MARKING

DIAGRAMS*

SOIC-

-16

D SUFFIX

CASE 751B

XXXXXXXXXG

AWLYWW

TSSOP-

-16

DT SUFFIX

CASE 948F

XXXX

ALYWG

XXXX = Device Code

= Assembly Location

WL, L = Wafer Lot

= Year

WW, W = Work Week

G or

= Pb--Free Package

(Note: Microdot may be in either location)

*For additional marking information, refer to

Application Note AND8002/D.



Zero Input -- Output Propagation Delay, Adjustable by Capacitive



Load on FBK Input

Multiple Configurations - Refer to NB2308A Configurations Table

Input Frequency Range: 15 MHz to 133 MHz

Multiple Low-

-Skew Outputs

Output-

-Output Skew Less than 200 ps

Device-

-Device Skew Less than 700 ps

Two banks of four outputs, three-

-stateable by two select inputs

Less than 200 ps Cycle- -Cycle Jitter

-to-

Available in 16-

-pin SOIC and TSSOP Packages

3.3 V Operation

Guaranteed Across Commercial and Industrial Temperature Ranges

Advanced 0.35

CMOS Technology

These are Pb-

-Free Devices

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 9 of this data sheet.



Semiconductor Components Industries, LLC, 2010

October, 2010 - Rev. 8

Publication Order Number:

NB2308A/D
