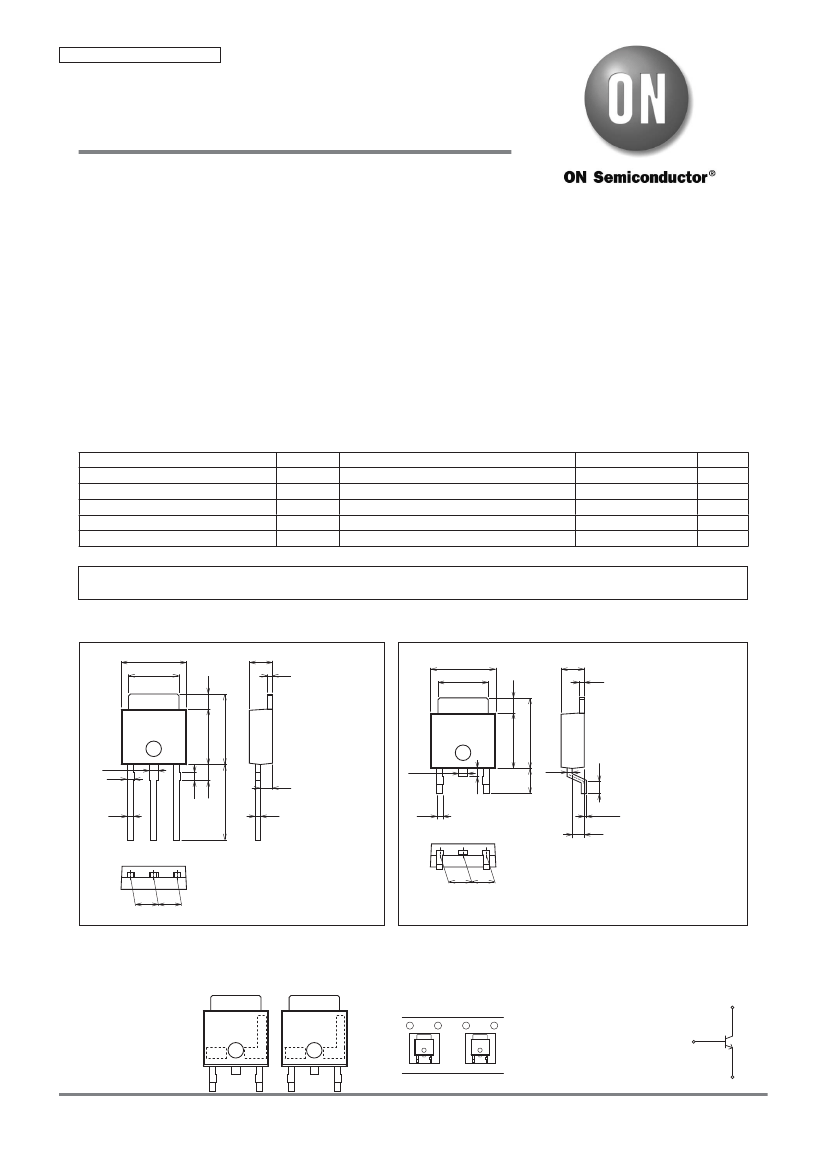

(–)50V, (–)3A, Low VCE(sat) (PNP)NPN Single TP/TP-FA
Applicaitons
•
http://onsemi.com
Voltage regulators, relay drivers, lamp drivers, electrical equipment
Features
•
•
•
•
Large current capacitance and wide ASO
Adoption of FBET and MBIT processes
•
Fast switching speed
Low collector to emitter saturation voltage
Small and slim package making it easy to make 2SB1202/2SD1802-used sets smaller
Specifications
( ): 2SB1202
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector to Base Voltage
Collector to Emitter Voltage
Emitter to Base Voltage
Collector Current
Collector Current (Pulse)
Symbol
VCBO
VCEO
VEBO
IC
ICP
Conditions
Ratings
(-
-)60
(--)50
(-
-)6
(--)3
(-
-)6
Unit
V
V
V
A
A
Continued on next page.
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
