19S103-400L5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 19S103-400L5

Preview

19S103-400L5: CategoryThe connector The connector; File Size217KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric View All

19S103-400L5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	19S103-400L5	-	-	View	Buy Now

19S103-400L5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-STD-202; CAPTIVE CENTER CONTACT
body width	0.236 inch
subject depth	0.161 inch
body length	0.236 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMP CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
Contact resistance	6 mΩ
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	44.9248 N
Insertion loss	0.26 dB
Insulation resistance	5000000000 Ω
insulator material	LCP/PEEK/PTFE
JESD-609 code	e4
MIL compliance	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	26.5 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	1.2 A
Terminal length	0.098 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.22
Evacuation force-minimum value	8.896 N
Base Number Matches	1

Preview

Download Datasheet

View All

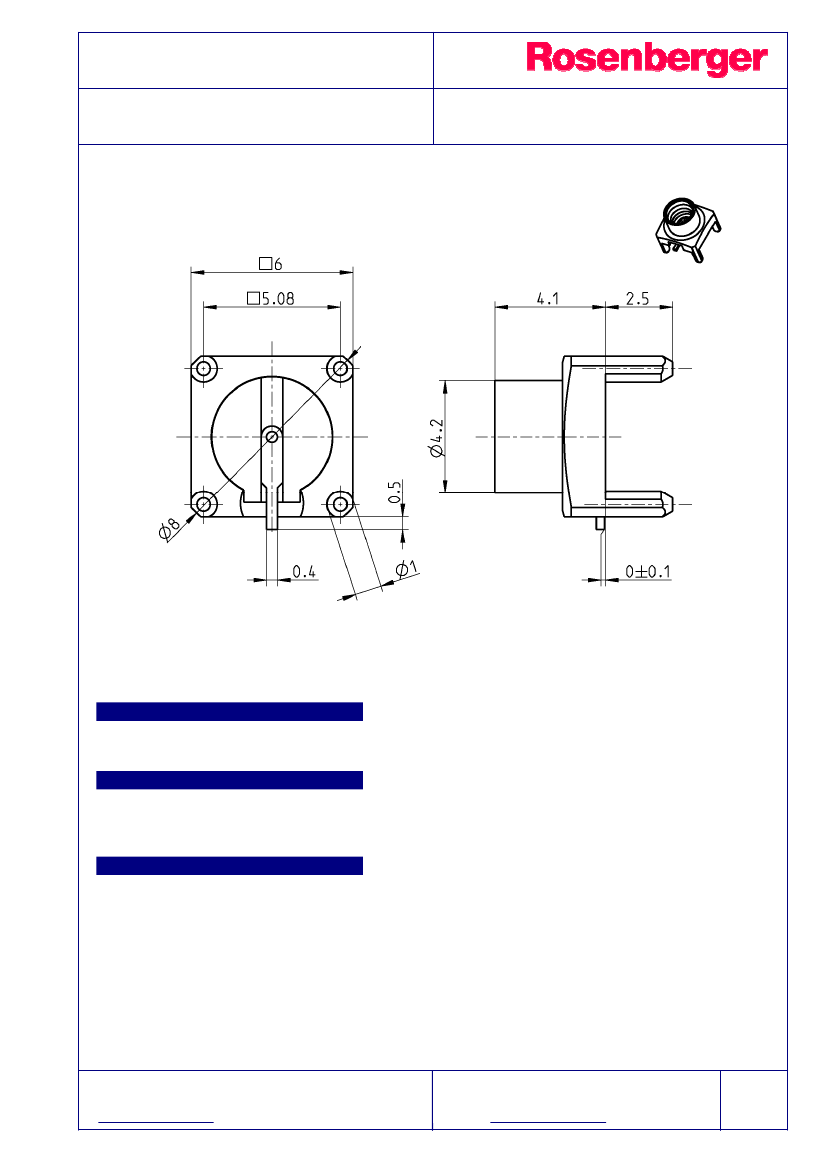

TECHNICAL DATA SHEET

SMP

STRAIGHT PLUG PCB

LIMITED DETENT

19S103-400L5

All dimensions are in mm; tolerances acc. to ISO 2768 m-H

Interface

According to

MIL-STD-348

Documents

PCB layout

Tape & reel packaging

B 122

VG276.84000

Material and Plating

Connector parts

Center contact

Outer contact

Dielectric

Material

Brass

LCP

Plating

AuroDur, gold plated

RF_35/08.06/4.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

email: info@rosenberger.de

Page

1/2
