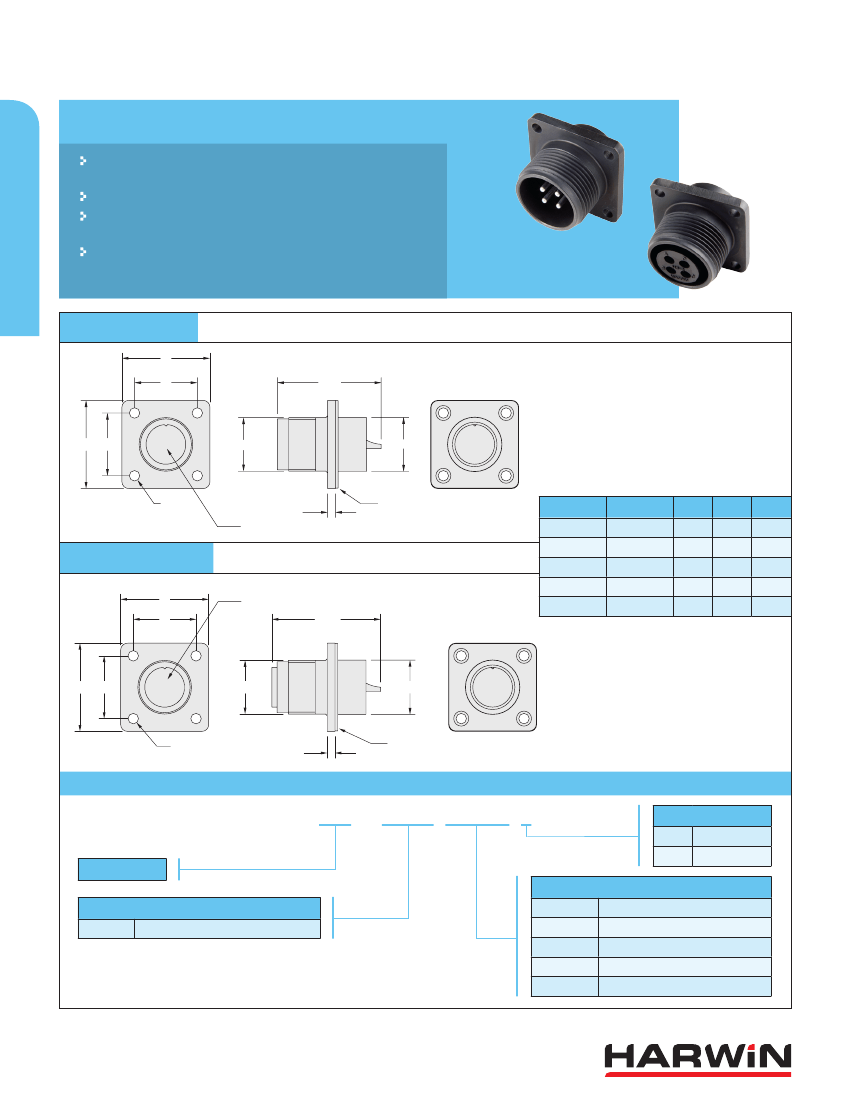

Circular Connectors
Panel Mount Connector, Receptacle Style
Male & female circular connectors intermateable with
MIL-DTL-5015.
Features screw holes for panel mounting.
Gaskets provide panel mount sealing, and can be used either
side of the flange.
Mates with C90-3106F Straight Plug connectors shown
on previous page.
CIRCULAR
A
A
MALE CONTACT
A
B
30.18
B
Thread
ØC
Ø3.05
2.25
Gasket
SHELL SIZE
10SL-3
10SL-4
12S-3
14S-2
THREAD
5/8-24UNEF
5/8-24UNEF
3/4-20UNEF
7/8-20UNEF
7/8-20UNEF
A
25.65
25.65
28.02
30.40
30.40
B
18.25
18.25
20.62
23.02
23.02
ØC
15.75
15.75
17.17
18.92
18.92
For contact layout, see Specification page
FEMALE CONTACT
A
B
For contact layout, see Specification page
30.18
14S-6
B
Thread
ØC
Ø3.05
2.25
Gasket
HOW TO ORDER
C90 - 3102R XXXX-X X
SERIES CODE
SHELL SIZE
TYPE
3102R
Panel mount connector with gasket
CONTACT GENDER
P
S
Male
Female
10SL-3
10SL-4
12S-3
14S-2
14S-6
Thread 5/8-24UNEF, 3 contacts
Thread 5/8-24UNEF, 2 contacts
Thread 3/4-20UNEF, 2 contacts
Thread 7/8-20UNEF, 4 contacts
Thread 7/8-20UNEF, 6 contacts
All dimensions in mm.
www.harwin.com
231
