10126363-12JLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 10126363-12JLF

10126363-12JLF: DescriptionHigh Speed / Modular Connectors 581-5QCF-4 PAIR RIGHT ANGLE RECEPACLE; CategoryThe connector; File Size387KB，15 Pages; ManufacturerFCI [First Components International]

Download Datasheet Parametric View All

10126363-12JLF Overview

High Speed / Modular Connectors 581-5QCF-4 PAIR RIGHT ANGLE RECEPACLE

10126363-12JLF Parametric

Parameter Name	Attribute value
Product Category	High Speed / Modular Connectors
Manufacturer	FCI [First Components International]

Preview

Download Datasheet

View All

NUMBER

TYPE

GS-12-1096

TITLE

PRODUCT SPECIFICATION

PAGE

REVISION

1 of 15

DATE

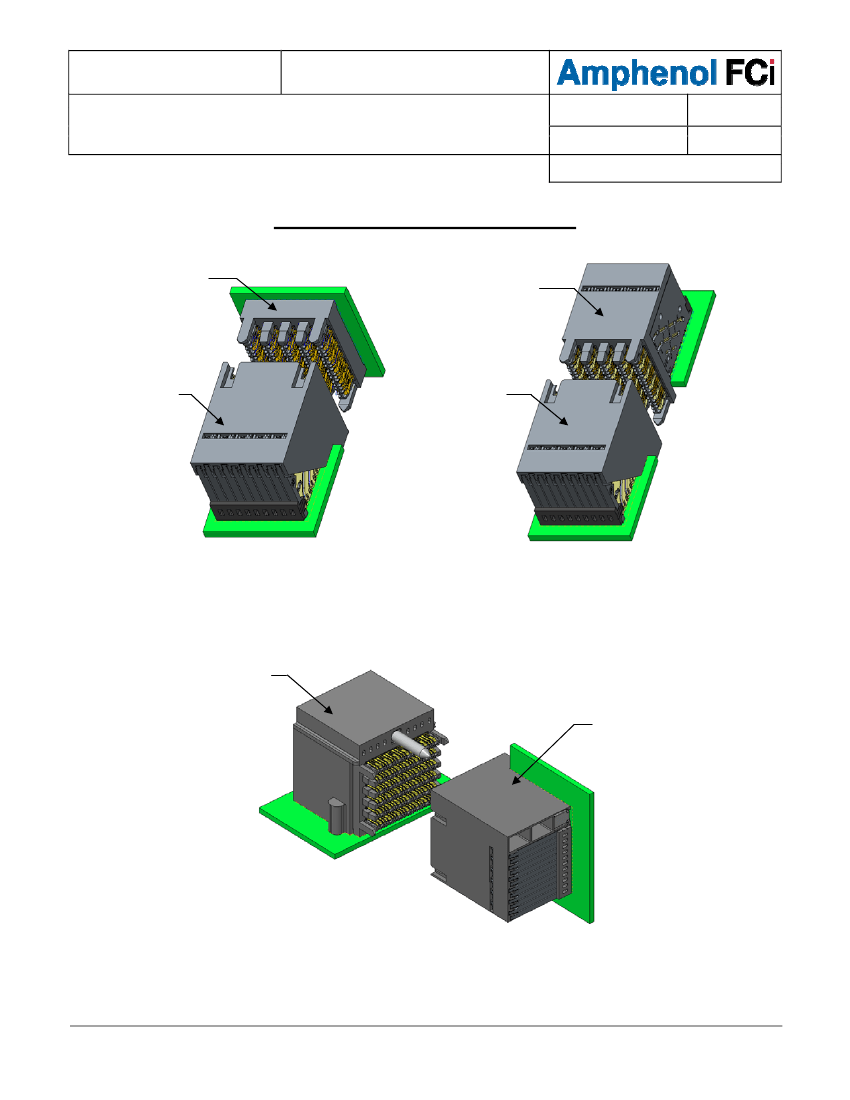

ExaMAX

Connector System

AUTHORIZED BY

Justin Chen

CLASSIFICATION

2016-11-16

UNRESTRICTED

ExaMAX

Connector System

ExaMAX VH

ExaMAX RAH

ExaMAX RAR

BACKPLANE RIGHT ANGLE RECEPTACLE (RAR)

AND VERTICAL HEADER (VH)

COPLANAR RIGHT ANGLE RECEPTACLE (RAR)

AND RIGHT ANGLE HEADER (RAH)

(4-Pair, 10-Column Configuration Shown)

ExaMAX RAOH

ExaMAX RAR

RIGHT ANGLE ORTHOGONAL HEADER (RAOH) WITH RIGHT ANGLE RECEPTACLE (RAR)

(6-Pair, 12-Column Configuration with Guides Shown)

Form E-3701 – Revision D

GS-01-029

PDS: Rev :J

STATUS:Released

Printed: Nov 17, 2016

NUMBER

TYPE

GS-12-1096

TITLE

PRODUCT SPECIFICATION

PAGE

REVISION

2 of 15

DATE

ExaMAX

Connector System

AUTHORIZED BY

Justin Chen

CLASSIFICATION

2016-11-16

UNRESTRICTED

1.0

2.0

3.0

4.0

4.1

4.2

4.3

4.4

4.5

5.0

5.1

5.2

5.3

5.4

6.0

6.1

6.2

6.3

6.4

7.0

7.1

7.2

7.3

7.4

7.5

8.0

8.1

8.2

8.3

8.4

8.5

8.6

8.7

8.8

8.9

8.10

9.0

9.1

9.2

9.3

9.4

9.5

9.6

9.7

OBJECTIVE ........................................................................................................................................................................................ 3

SCOPE .................................................................................................................................................................................................. 3

RATINGS ............................................................................................................................................................................................. 3

APPLICABLE DOCUMENTS ........................................................................................................................................................... 3

FCI S

PECIFICATIONS

........................................................................................................................................................................... 3

NDUSTRY OR

RADE

SSOCIATION STANDARDS

.................................................................................................................................. 3

ATIONAL OR

NTERNATIONAL

TANDARDS

........................................................................................................................................ 3

FCI Q

UALIFICATION

EPORT

............................................................................................................................................................... 4

AFETY

GENCY

PPROVALS

............................................................................................................................................................. 4

REQUIREMENTS ................................................................................................................................................................................ 4

UALIFICATION

................................................................................................................................................................................... 4

ATERIAL

.......................................................................................................................................................................................... 4

INISH

................................................................................................................................................................................................. 4

ESIGN AND

ONSTRUCTION

............................................................................................................................................................... 4

ELECTRICAL CHARACTERISTICS ............................................................................................................................................... 5

ONTACT

ESISTANCE

, L

EVEL

(LLCR) ...................................................................................................................................... 5

NSULATION

ESISTANCE

................................................................................................................................................................... 5

IELECTRIC

ITHSTANDING

OLTAGE

............................................................................................................................................... 5

URRENT

ATING

................................................................................................................................................................................ 6

MECHANICAL CHARACTERISTICS ............................................................................................................................................. 8

ATING

MATING

ORCE

.............................................................................................................................................................. 8

OMPLIANT

NSERTION

ORCE

..................................................................................................................................................... 8

OMPLIANT

ETENTION

ORCE

.................................................................................................................................................... 9

PCB H

OLE

EFORMATION

ADIUS AND

EMAINING

LATING

HICKNESS

..................................................................................... 9

PCB H

OLE

ALL

AMAGE

................................................................................................................................................................ 9

ENVIRONMENTAL CONDITIONS ................................................................................................................................................ 10

HERMAL

HOCK

. ............................................................................................................................................................................ 10

YCLICAL

UMIDITY AND

EMPERATURE

........................................................................................................................................ 10

EMPERATURE

IFE

.......................................................................................................................................................................... 10

IXED

LOWING

AS CORROSION

(MFG) ........................................................................................................................................ 10

ALT

PRAY

..................................................................................................................................................................................... 11

IBRATION

....................................................................................................................................................................................... 11

ECHANICAL

HOCK

........................................................................................................................................................................ 11

URABILITY

..................................................................................................................................................................................... 11

UST

............................................................................................................................................................................................... 11

ISTURB

- ........................................................................................................................................................................................ 11

QUALITY ASSURANCE PROVISIONS ......................................................................................................................................... 12

QUIPMENT

ALIBRATION

................................................................................................................................................................. 12

NSPECTION

ONDITIONS

................................................................................................................................................................... 12

AMPLE

UANTITY AND

ESCRIPTION

.............................................................................................................................................. 12

CCEPTANCE

.................................................................................................................................................................................... 12

UALIFICATION

ESTING

.................................................................................................................................................................. 12

-Q

UALIFICATION

ESTING

............................................................................................................................................................. 12

UALIFICATION

EST

ABLES

........................................................................................................................................................... 13

REVISION RECORD…..……………………………………………….…………………….….………………………………………….. 15

Form E-3701 – Revision D

GS-01-029

PDS: Rev :J

STATUS:Released

Printed: Nov 17, 2016

NUMBER

TYPE

GS-12-1096

TITLE

PRODUCT SPECIFICATION

PAGE

REVISION

3 of 15

DATE

ExaMAX

Connector System

AUTHORIZED BY

Justin Chen

CLASSIFICATION

2016-11-16

UNRESTRICTED

1.0

Objective

This specification defines the performance, test, quality and reliability requirements of the ExaMAX press-fit

connector system.

2.0

Scope

This specification is applicable to the ExaMAX press-fit family of products, which provides a high speed

board-to-board interconnect for differential pairs and single-ended lines. Connectors include 2-pair, 3-pair,

4-pair, 6-pair and 8-pair Right Angle Receptacle (RAR) , Vertical Receptacle (VR), Right Angle Header

(RAH),Vertical Header (VH), and 6-pair Right Angle Orthogonal Header (RAOH) connectors. The test

sequences defined in this specification meet the intent of Telcordia GR-1217-CORE requirements.

Ratings

3.1

Operating Voltage Rating:

- Agency Voltage Rating < 30 VAC RMS / DC

- Non-Agency Voltage Rating = 150 VAC RMS / DC Maximum

3.2

3.3

Operating Current Rating: See section 6.4

Operating Temperature Range = -55° C to +85° C

3.0

4.0

Applicable Documents

4.1

FCI Specifications

4.1.1 Engineering drawings

- FCI product customer drawings (Various)

- FCI customer drawing 10119933 (Recommended Via Drill Sizes and Plating)

4.1.2 Process drawings

- FCI product inspection drawings (Various)

4.1.3 Application specification

- GS-20-0361 (ExaMAX Connector System, press-fit products)

4.1.4 Power design guide specification

-GS-20-0456 (ExaMAX ExaMEZZ Power Design Guide)

4.2

Industry or Trade Association standards

Telcordia GR-1217-CORE (Separable Electrical Connectors Used in Telecommunications Hardware)

4.3

National or International Standards

4.3.1 Flammability: UL94V-0 or similar applicable specification

4.3.2 EIA 364: Electrical Connector/Socket Test Procedures Including Environmental Classifications.

4.3.3 IEC 60512: Connectors for Electronic Equipment – Tests and Measurement

Form E-3701 – Revision D

GS-01-029

PDS: Rev :J

STATUS:Released

Printed: Nov 17, 2016

NUMBER

TYPE

GS-12-1096

TITLE

PRODUCT SPECIFICATION

PAGE

REVISION

4 of 15

DATE

ExaMAX

Connector System

AUTHORIZED BY

Justin Chen

CLASSIFICATION

2016-11-16

UNRESTRICTED

4.4

FCI Qualification Report and Supporting Data

- EL-2014-01-014, EL-2014-01-037

- EL-2013-12-014 and EL-2015-01-044A additional current rating test to support values in section 6.4

4.5

Safety Agency Approvals

- UL File Number: E66906

5.0

Requirements

5.1

Qualification

Connectors furnished under this specification shall be capable of meeting the qualification test

requirements specified herein.

5.2

Material

The material for each component shall be as specified herein or equivalent.

- Contacts: Copper alloy

- Housings and IMLAs: High temperature thermoplastic; UL 94V-0 compliant

5.3

Finish

The finish for applicable components shall be as specified herein or equivalent.

- Contact Areas: Performance-based plating, qualified to meet the requirements of this specification,

including Telcordia GR-1217-CORE (November 1995) Central Office test sequence

- Press-Fit Tails: Tin over Nickel

5.4

Design and Construction

Connectors shall be of the design, construction, and physical dimensions specified on the applicable

product drawing. There shall be no cracks, burrs, or other physical defects that may impair

performance.

Form E-3701 – Revision D

GS-01-029

PDS: Rev :J

STATUS:Released

Printed: Nov 17, 2016

NUMBER

TYPE

GS-12-1096

TITLE

PRODUCT SPECIFICATION

PAGE

REVISION

5 of 15

DATE

ExaMAX

Connector System

AUTHORIZED BY

Justin Chen

CLASSIFICATION

2016-11-16

UNRESTRICTED

6.0

Electrical Characteristics

6.1

Contact Resistance, Low Level (LLCR) – EIA 364-23

The low level contact resistance shall not initially exceed 60 milliohms (Backplane) or 100 milliohms

(Coplanar and RAOH to RAR). The low level contact resistance shall also not exceed 10 milliohms

increase in resistance (from the initial measurement) after any treatment and/or environmental

exposure. Note: grounds within each IMLA/column shall be measured or calculated in parallel.

The following details shall apply:

a. Test Voltage - 20 milli-volts DC max open circuit.

b. Test Current - Not to exceed 100 milli-amperes.

Number of readings: 500 minimum

6.2

Insulation Resistance – EIA 364-21

The insulation resistance of mated connectors shall not be less than 1000 M-ohms.

The following details shall apply:

a. Test Voltage - 500 volts DC

b. Electrification Time – 60 seconds.

Points of Measurement – Between signal-to-signal and signal-to-ground within same IMLA.

d. Number of readings: 40 (10 readings per loose-piece connector set).

6.3

Dielectric Withstanding Voltage – EIA 364-20

There shall be no evidence of arc-over, insulation breakdown, or excessive leakage current > 0.5 mA.

The following details shall apply:

a. Test Voltage – 500 volts DC.

b. Test Duration - 60 seconds.

Test Condition - 1 (760 Torr - sea level).

d. Points of Measurement – Between signal-to-signal and signal-to-ground within same IMLA.

e. Number of readings: 40 (10 readings per loose-piece connector set).

Form E-3701 – Revision D

GS-01-029

PDS: Rev :J

STATUS:Released

Printed: Nov 17, 2016

Recommended Resources

non-diode rectifier

Touch-type interlocking program-controlled power supply schematic diagram

Leakage protection circuit

Single-phase AC motor switching control circuit

bell simulator

Aihua J303g charger electrical schematic diagram (dual 1.2V fast charger circuit)

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

SIT1602BC-12-25N-10.000000G
FMP24-R45B
S5C2-3-5
PTH902-035S-204A6
RF058-05SR2-SING-0100
7107P3HV2QES
SS8A-01-1432-DBPB
PTN0805H2102BGTP
5.0SMCJ180A_R2_00001
1N5225C_R2_10001
A2541HWV-S-29P-A
A1008H-9P-OR
