TB400-07 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> TB400-07

Preview

TB400-07: DescriptionStandoffs u0026 Spacers 3/4 LNGTH 4-40 ML/FML HEX STANDOFF; CategoryThe connector terminals; File Size239KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

TB400-07 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TB400-07	-	-	View	Buy Now

TB400-07 Overview

Standoffs u0026 Spacers 3/4 LNGTH 4-40 ML/FML HEX STANDOFF

TB400-07 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	94V-0, THERMOPLASTIC
Fastening method	SCREW
Number of layers	1
Rows	2
Number of channels	14
Rated current	75 A
Rated voltage	600 V
safety certificate	UL; CSA; CE; IEC
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	6 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

INDEX

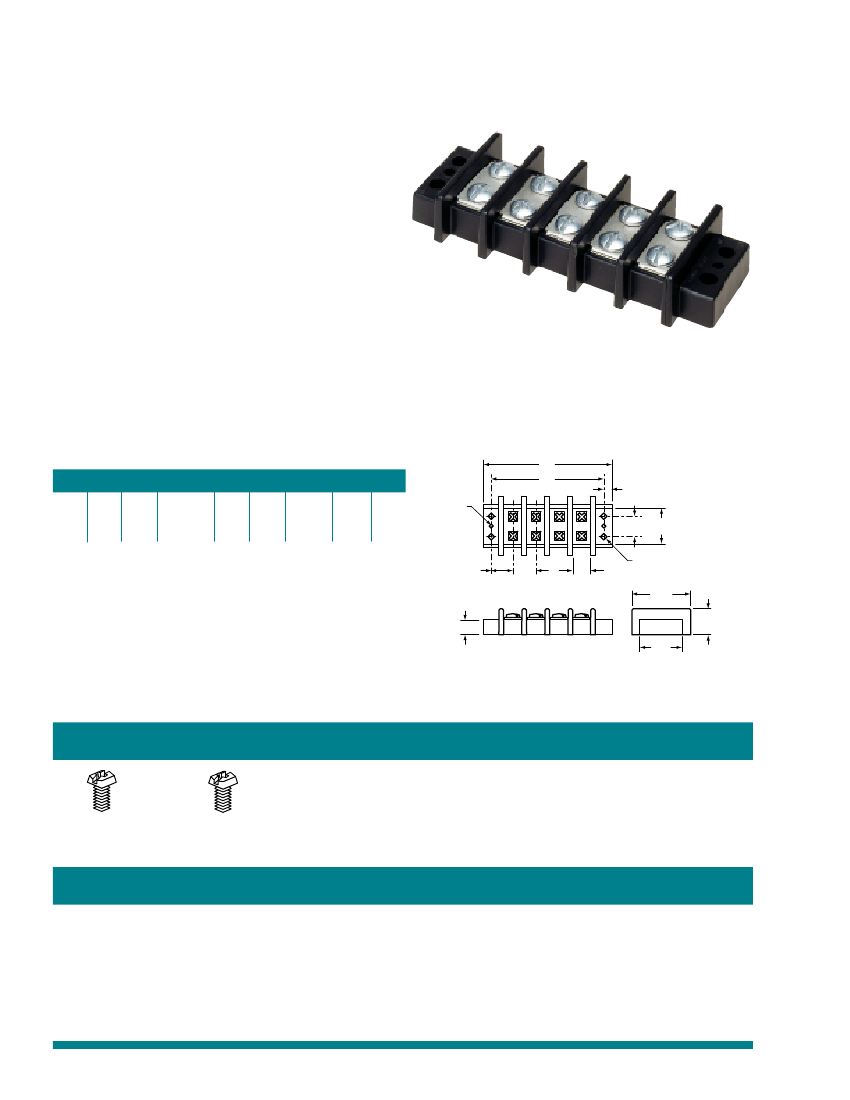

Series TB400

Double Row Terminal Blocks

SPECIFICATIONS

Rating: 75A, 600V*

* 75A max. with pressure terminal connector and #4 AWG;

30A max. with #10 AWG;

Center Spacing: .687” or 11/16” (17.45 mm)

Wire Size: #10-14 AWG CU

Screw Size: #10-32 philslot screws

Torque Rating: 20 in-lb.

Distance Between Barriers: .56” (14.3 mm)

Mounting: #10 screws

Material: Molded base: Black, UL rated 94VO thermoplastic

Terminal plating: Tin over brass; Screws: Zinc plated steel

Operating Temperature: 130°C (260°F) max., -40°C (-40°F) min.

Breakdown Voltage: 7500V rms

Approvals: UL E62622; CSA LR15364; IEC Compliance;

CE Certified

TB400

A

TB400-05

Inches (mm)

Poles

02

03

04

05

A

2.51

3.20

3.89

4.58

B

2.06

2.75

3.44

4.13

Poles

06

07

08

09

A

5.26

5.95

6.64

7.33

B

4.81

5.50

6.19

6.88

Poles

10

11

12

A

8.01

8.70

9.39

B

7.56

8.25

8.94

.15 dia.

(3.8)

B

.22

(5.6)

.625

(15.9)

1.12

(28.4)

* Dimensions in inches. To convert to millimeters, multiply by 25.4.

.22 dia. (5.6)

.687

(17.4)

.687

(17.4)

.562

(14.3)

1.81

(46.0)

.76

(19.3)

1.34

(34.0)

.46 (11.7)

Screw Options

B

Brass Philslot

Nickel Plated

ST

Stainless Steel

Philslot

Part Numbering System

Series

Poles

Screw Options

Marking

Hardware Options

T B 4 0 0

nnnnn

–

nn

02 to 12

nn

Blank - std. screws

00 - screws shipped bulk

B - brass philslot, nickel plated

ST - stainless steel, philslot

Not available

Cooper Bussmann

l

7300 W. Wilson Ave

l

Chicago, IL 60656-4708

l

Fax: 708-867-2211

l

Phone: 708-867-4600

Website: http://www.busscc.com

31
