803-43-006-30-001000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 803-43-006-30-001000

803-43-006-30-001000: CategoryThe connector socket; File Size424KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

803-43-006-30-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	803-43-006-30-001000	-	-	View	Buy Now

803-43-006-30-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	DIP6
Shell material	BRASS
JESD-609 code	e3
Number of contacts	6

Preview

Download Datasheet

View All

INTERCONNECTS

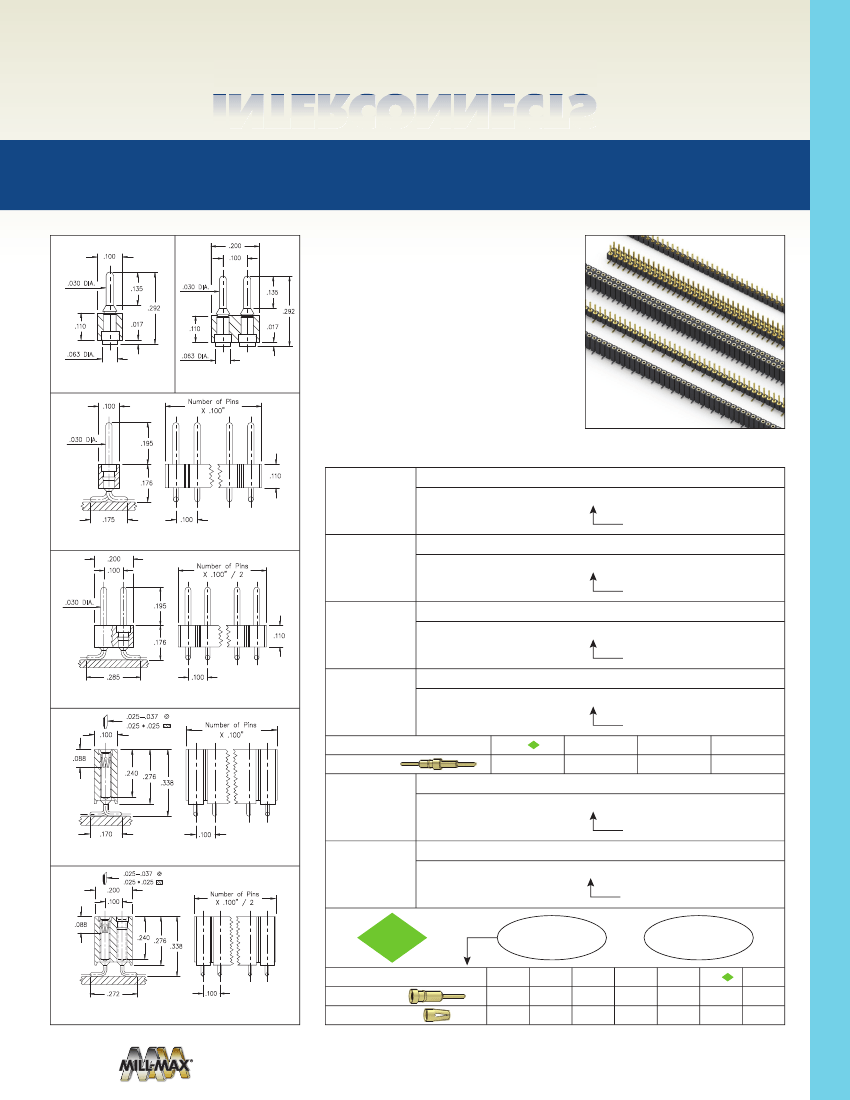

SERIES 349, 449, 800, 801, 802, 803 • .100” GRID (.030” DIA. PINS),

SURFACE MOUNT HEADERS & SOCKETS • SINGLE AND DOUBLE ROW STRIPS

.200

•

Series 349 & 449 use MM #4956-1 pins. See

page 218 for details

215 for details

.100

.030 DIA.

.135

.292

.030 DIA.

•

Series 800 & 802 use MM #7007 pins. See page

.135

.292

•

Series 801 & 803 use MM #1304 receptacles

•

Receptacles use Hi-Rel, 6- nger BeCu #47

.110

.017

.110

.017

and accept pin diameters from .025”-.037” and

.025” square pins. See page 177 for details

contact rated at 4.5 amps. See page 256 for

details

suitable for all soldering operations

.063 DIA.

FIG. 1

.100

FIG. 2

Number of Pins

X .100"

•

Insulators are high temperature thermoplastic,

.030 DIA.

.195

ORDERING INFORMATION

.110

.176

Series 349...560

.175

.100

FIG. 3

.200

.100

Coplanarity .005”.

For pin counts >10

positions, consult

Technical Support.

Number of Pins

X .100" / 2

FIG. 1

Series 449...560

Single Row Surface Mount Header

349 10 1_ _ 00 560000

02-64

Specify number of pins

FIG. 2

Series 800...001

.110

Double Row Surface Mount Header

449 10 2_ _ 00 560000

04-64

Specify number of pins

.030 DIA.

.195

.176

FIG. 3

Series 802...001

Single Row Surface Mount Header

800 10 0_ _ 30 001000

03-64

Specify number of pins

.285

.100

FIG. 4

.025-.037

.100

.025 * .025

Coplanarity .005”.

For pin counts >20

positions, consult

Technical Support.

Number of Pins

X .100"

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

Double Row Surface Mount Header

802 10 0_ _ 30 001000

04-72

Specify number of pins

µ”

.088

.240

.276

.338

Series 801...001

FIG. 5

.170

.100

Single Row Surface Mount Socket

801 43 0_ _ 30 001000

03-50

.200

.100

.025-.037

.025 * .025

FIG. 6

Number of Pins

X .100" / 2

Specify number of pins

RoHS - 2

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.088

.240

.276

.338

2011/65/EU

XX=Plating Code

See Below

200

µ”

Sn/Pb

.272

.100

FIG. 6

Coplanarity .005”.

For pin counts >20

positions, consult

Technical Support.

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 59 | INTERCONNECTS

FIG. 5

Coplanarity .005”.

For pin counts >10

positions, consult

Technical Support.

Specify number of pins

Series 803...001

Double Row Surface Mount Socket

803 XX _ _ _ 30 001000

803-43-006-30-001000 Related Products

	803-43-006-30-001000	803-93-100-30-001000	BLU1206P-20R8-BT25Q	BLU1206P-4373-CB25W	803-43-008-30-001000	FP50-2183-BB50	803-43-004-30-001000
Description		Headers u0026 Wire Housings 100P DOUBLE ROW SMT SOCKET	Fixed Resistor, Thin Film, 0.25W, 20.8ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, 1206	Fixed Resistor, Thin Film, 0.25W, 437000ohm, 150V, 0.25% +/-Tol, 25ppm/Cel, 1206	Headers u0026 Wire Housings 8P 4.5A SMT SOCKET DOUBLE ROW GULL WING	Fixed Resistor, Metal Film, 0.125W, 218000ohm, 200V, 0.1% +/-Tol, 50ppm/Cel,	Headers u0026 Wire Housings 4P 4.5A SMT SOCKET DOUBLE ROW GULL WING
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is it Rohs certified?	conform to	-	incompatible	conform to	conform to	-	conform to
Maker	Mill-Max	Mill-Max	-	-	Mill-Max	-	Mill-Max
JESD-609 code	e3	-	e0	e3	e3	-	e3
