Self-Locking or Non-Self-Locking
CONNECTOR DESIGNATOR:
Dash No.
Table I
Page 62-34
Finish
Table II
Page 62-34
AS85049/126

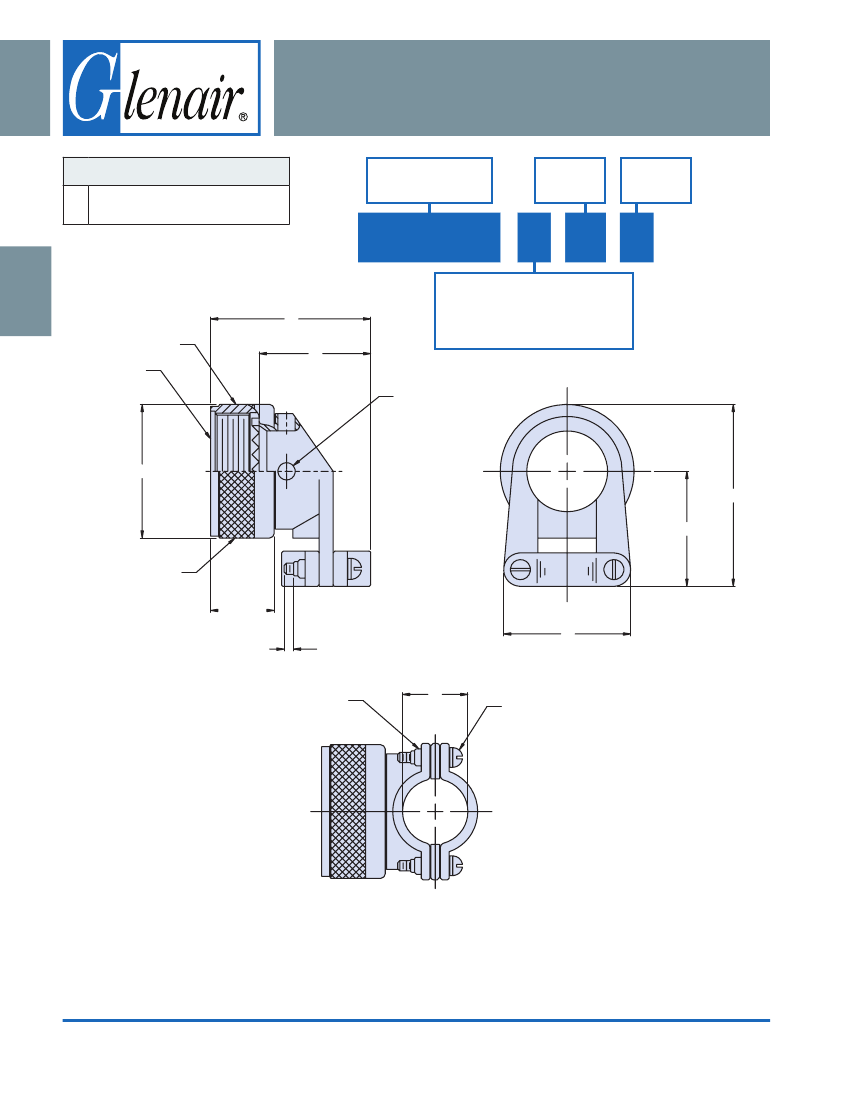

90° Strain Relief
B
Coupling Nut
A Thread
AS85049
H
MIL-DTL-38999 Series III & IV
EN3645
Product Series and
Basic Part Number
M85049/126
E
D
Ø.125 (3.2) Drain Holes
3 Min, Equally Spaced
S
09
W
S
=
Detented Self-Locking
N
= Non-Detented Self-Locking
Use Dash (–) for Non-Self-Locking
(See Note 5)
B
G
F
Knurl Style
Optional
.660
(16.8)
Max
.060/.380
(1.52/9.65)
Screw
Extension
Captive
Self-locking Nut
-typ-
C
See Note 4
Screw
H
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-134
E-Mail: sales@glenair.com
Self-Locking or Non-Self-Locking
TABLE I: Dash Number, Shell Size, Thread and Dimensions
Dash Screw Shell Size
No.
Size Code (Ref)
09
11
13
15
17
19
21
23
25
4-40
4-40
4-40
4-40
4-40
6-32
6-32
6-32
8-32
A
B
C
D
E
F
G
H
J
A Thread
ISO Metric
M12 x 1 - 6H
M15 x 1 - 6H
M18 x 1 - 6H
M22 x 1 - 6H
M25 x 1 - 6H
M28 x 1 - 6H
M31 x 1 - 6H
M34 x 1 - 6H
M37 x 1 - 6H
B Dia
Max
.858 (21.8)
.984 (25.0)
1.157 (29.4)
1.297 (32.5)
1.406 (35.7)
1.516 (38.5)
1.642 (41.7)
1.768 (44.9)
1.869 (47.5)
C Dim
D
± .031 (0.79)
Max
See Note 4
.219 (5.6) .86 (21.8)
.264 (6.7) .94 (23.9)
.344 (8.7) 1.14 (29.0)
.460 (11.7) 1.20 (30.5)
.545 (13.8) 1.34 (34.0)
.615 (15.6) 1.46 (37.1)
.698 (17.7) 1.58 (40.1)
.780 (19.8) 1.71 (43.4)
.850 (21.6) 1.83 (46.5)
E Max
Length
1.14 (29.0)
1.22 (31.0)
1.42 (36.1)
1.48 (37.6)
1.62 (41.1)
1.74 (44.2)
1.86 (47.2)
1.99 (50.5)
2.11 (53.6)
F
Max
.81 (20.6)
.87 (22.1)
.93 (23.6)
.99 (25.1)
1.09 (27.7)
1.23 (31.2)
1.30 (33.0)
1.36 (34.5)
1.42 (36.1)
G
Max
1.24 (31.5)
1.36 (34.5)
1.51 (38.4)
1.63 (41.4)
1.76 (44.7)
1.99 (50.5)
2.12 (53.8)
2.24 (56.9)
2.35 (59.7)
H
Max
.88 (22.4)
.94 (23.9)
1.12 (28.4)
1.19 (30.2)
1.44 (36.6)
1.56 (39.6)
1.69 (42.9)
1.75 (44.5)
1.88 (47.8)
B
TABLE II: Material and Finish
Symbol
A
N
W
X
Y
Z
S
300 Series SST
Material
Finish
Black Anodize
Electroless Nickel
Cadmium, Olive Drab
Nickel Fluorocarbon Polymer
Pure Dense Electrodeposited
Aluminum
Zinc Nickel
Passivated
Aluminum Alloy
APPLICATION NOTES
1.
2.
3.
4.
5.
6.
Captive
Assembly to be identified with manufacturer’s name and part number, space permitting.
C
Self-locking Nut
Screw
See Note 4
-typ-
Glenair Series 600 Backshell Assembly Tools are recommended for assembly and
installation.
Metric equivalents in parentheses (mm) are given for general information only and are
based on 1.000 inch = 25.4 mm.
Cable entry is measured with saddle bars closed and bottomed on clamp ears.
Detented self-locking has a positive audible detented coupling.
Material/Finish:
Clamp body, coupling nut, saddles - Al alloy or 300 Series SST/See Table II.
Clamp screws and lock nuts - CRES/Passivated, Silver plate optional.
Anti-rotation device - Corrosion resistant material
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-135
E-Mail: sales@glenair.com
AS85049
AS85049/126
90° Strain Relief
