AMPMODU Interconnection System
AMPMODU System 50 Connectors
(Page 52)
(Page 44)
(Page 38)
(Page 40)
(Page 39)
AMPMODU System 50
(Page 31)
(Page 45)
(Page 29)
(Page 33)
(Page 34)
Double Row, .025
Ribbon Cable
Mount Receptacle
(Page 56)
(Page 30)
(Page 50)
3
(Page 28)
(Page 37)
(Page 32)
(Page 27)
(Page 50)

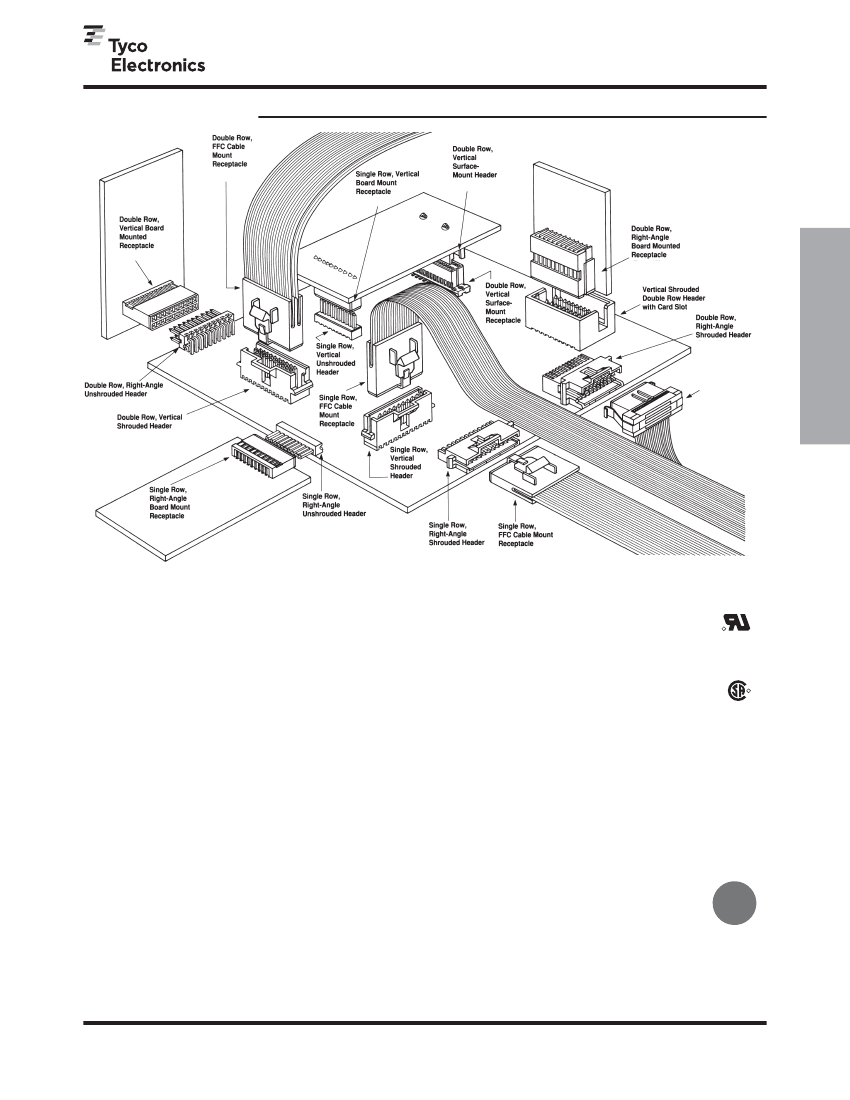

The AMPMODU System 50
connector family includes a
wide variety of high density
board-to-board (thru-hole
and surface-mount) and
cable-to-board connectors.
AMPMODU System 50 is
composed of one- and two-
row receptacles and post
headers on .050 x .100
[1.27 x 2.54] spacing
between contacts for
extreme density and
efficient use of printed
circuit board area.
AMPMODU System 50
receptacles and header
assemblies can be
categorized in three groups:
board-mount headers,
board-mount receptacles
and cable-to-board
receptacles. Receptacle
contacts and mating .015
[0.38] square posts are
formed from high
conductivity copper alloy
and are selectively plated
with gold to promote higher
performance and reliability.
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Board-mounted thru-hole
post headers and
receptacle connectors are
available for right-angle
and vertical mating
configurations. Surface-
mounted connectors are
available in vertical, double
row styles for parallel
stacking applications.
Shrouded post headers
provide polarization to
mating cable receptacles
and aid alignment of mating
connectors. Unshrouded
headers allow close
stacking of daughter cards.
Vertical stacking connectors
space parallel mated
boards as shown in the
illustration on page 63.
Housings on all board-
mount assemblies are made
of high temperature tolerant
materials and incorporate
stand-offs for free drainage
of flux cleaning solutions.
Cable-to-board connectors
have integral latches for
positive locking to shrouded
mating headers (thru-hole or
surface-mount). Ribbon
cable connectors mass
terminate 30 AWG [0.05
mm
2
] solid and 32 AWG
[0.03 mm
2
] stranded, .025
[0.64] centerline ribbon
cable with PVC or Teflon
®
insulation.
Connectors for mass
termination to FFC cable or
flexible etched circuitry
have dual beam contacts;
options include shielded
cable and solder tabs. Both
types of cable connectors
are available as component
parts and as completed
assemblies.
The variety of components
and application possibilities,
combined with small size
and outstanding quality,
make AMPMODU
System 50 suitable for high
density systems.
■
Recognized under the
Component Program of
Underwriters
Laboratories Inc.
File No. E28476
■
Certified by
Canadian Standards
Association*,
File No. LR 7189
R
R
*CSA certification pending on certain products,
as noted.
Dimensioning:
Dimensions are in inches and millimeters.
Values in brackets are metric equivalents. Metric
symbols used are:
mm (millimeter)
cm (centimeter)
m (meter)
mm
2
(square millimeter)
C (Celsius)
N (newton)
kg (kilogram)
■
Produced under a
Quality Management
System certified
to ISO 9001
1
ISO900
ed
A copy of the
ifi
t
certificate is available
upon request.
r
Ce
Teflon
®
is a trademark of E.I. du Pont de
Nemours and Company.
25
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208

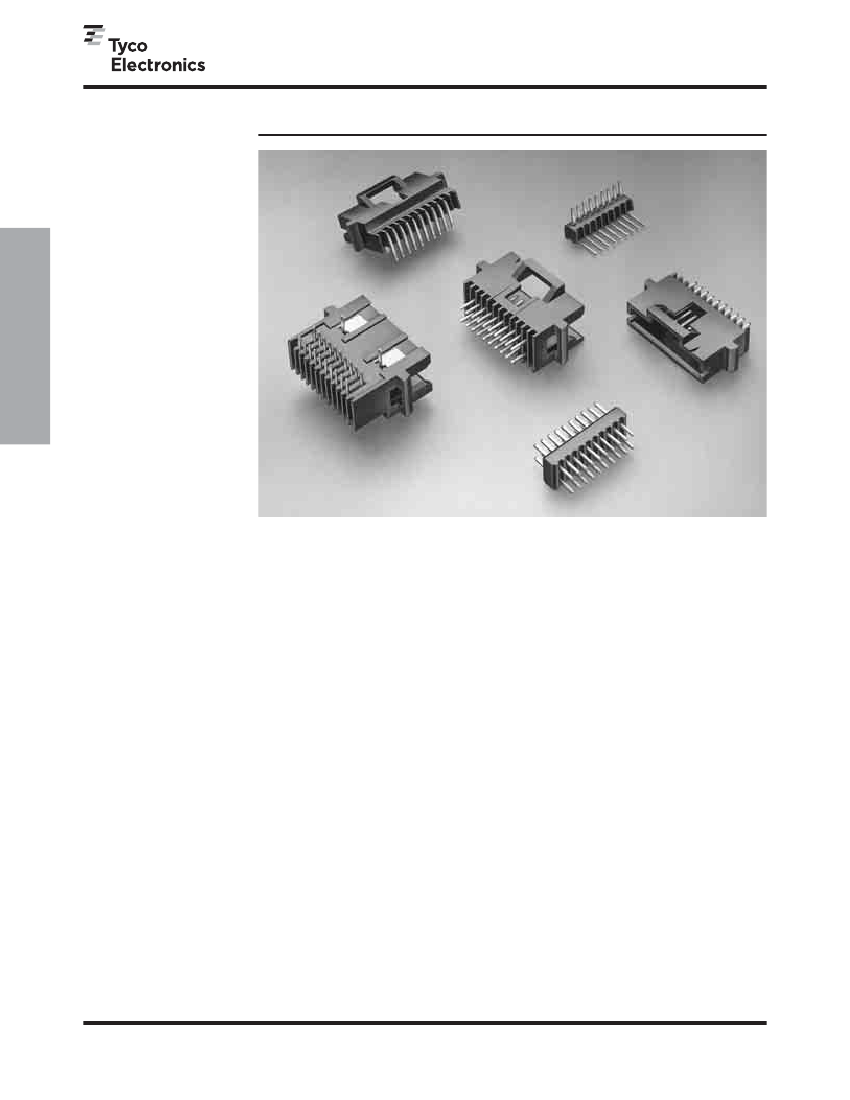

AMPMODU Interconnection System
Thru-Hole Headers––Shrouded, .050 x .100 [1.27 x 2.54] Centerline,
Board-to-Board
Product Facts
■
High density; contacts
spaced on .050 x .100
[1.27 x 2.54] centers
Single row; select sizes 4
thru 50 positions
Double row; select sizes 10
thru 100 positions
Stand-offs for ease of
cleaning
High temperature tolerant
thermoplastic housings
Shrouded and unshrouded
headers available in single
and double row, vertical
and right-angle
configurations
■
Board-to-Board Connectors,
Thru-Hole
■
■
■
■
3
The AMPMODU System 50
interconnection system is
designed to better meet
industry’s need for a high
density interconnect
system. The Board
Mounted Thru-Hole
Headers are available in
shrouded and unshrouded
versions. They are
composed of single and
double row post headers
with .050 x .100
[1.27 x 2.54] spacing
between contacts for
extreme density and
efficient use of printed
circuit board area. The
headers are available in
4 through 50 positions, in
a single row configuration,
and 10 through 100
positions, in a double row
design.
Board mounted post
headers are available in
right-angle and vertical
configurations. Shrouded
post headers provide
polarization and alignment
features for mating printed
circuit boards and cable
connectors, while
unshrouded headers allow
close stacking of daughter
cards. Housings for the
headers are made of black
thermoplastic material with
a 94V-0 rating. The
housings have stand-offs
for free drainage of flux
cleaning solutions.
26
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMPMODU Interconnection System
Thru-Hole Headers––Shrouded, .050 x .100 [1.27 x 2.54] Centerline,
Board-to-Board
(Continued)

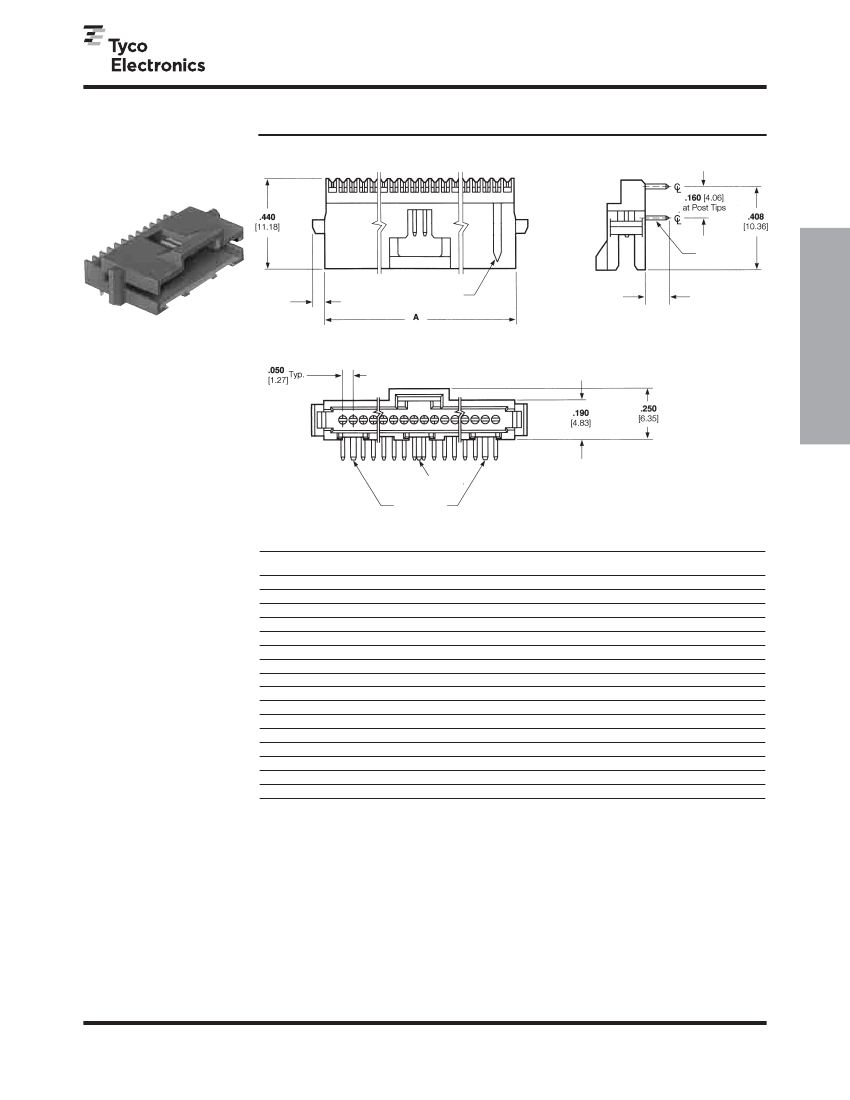

Single Row, Right-Angle
with Solder Clips
Solder
Clip
Headers, Shrouded and
Unshrouded
.060
[1.52]
2 Plc.
Circuit Identification
Feature*
.100
[2.54]
Material and Finish
Housing
— Glass-filled thermoplastic,
black, 94V-0 rated
Contacts
— Copper alloy; duplex
plated .000030 [0.00076] gold in
mating area, .000150 [0.00381] tin
on solder posts, with entire contact
underplated .000050 [0.00127] nickel
3
See Note 2.
See Note 1.
Related Product Data
Performance Characteristics
—
page 63
Mateable Connectors
— pages 38,
49 & 50
PC Board Hole Layout
— page 41
Technical Documents
— page 64
Product Specification
108-1093
Application Specification
114-25031
No. of
Pos.
4
5
6
8
10
12
15
20
22
25
28
30
36
40
45
50
Dimension
A
.330
[8.38]
.380
[9.65]
.430
[10.92]
.530
[13.46]
.630
[16.00]
.730
[18.54]
.880
[22.35]
1.130
[28.70]
1.230
[31.24]
1.380
[35.05]
1.530
[38.86]
1.630
[41.40]
1.930
[49.02]
2.130
[54.10]
2.380
[60.45]
2.630
[66.80]
Part Numbers
5-104074-7
5-104074-2
5-104074-8
6-104074-0
5-104074-1
6-104074-1
5-104074-3
5-104074-4
6-104074-4
5-104074-5
7-104074-0
5-104074-6
6-104074-6
6-104074-7
6-104074-8
6-104074-9
*Circuit identification feature omitted on 4, 5 and 6 position headers.
Notes:
1. Solder Clips located as shown for 10 through 30 position headers.
2. Solder Clips located as shown for 4 through 8 and 36 through 50 position headers.
Note:
All part numbers are RoHS compliant.
27
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMPMODU Interconnection System
Thru-Hole Headers––Shrouded, .050 x .100 [1.27 x 2.54] Centerline,
Board-to-Board
(Continued)

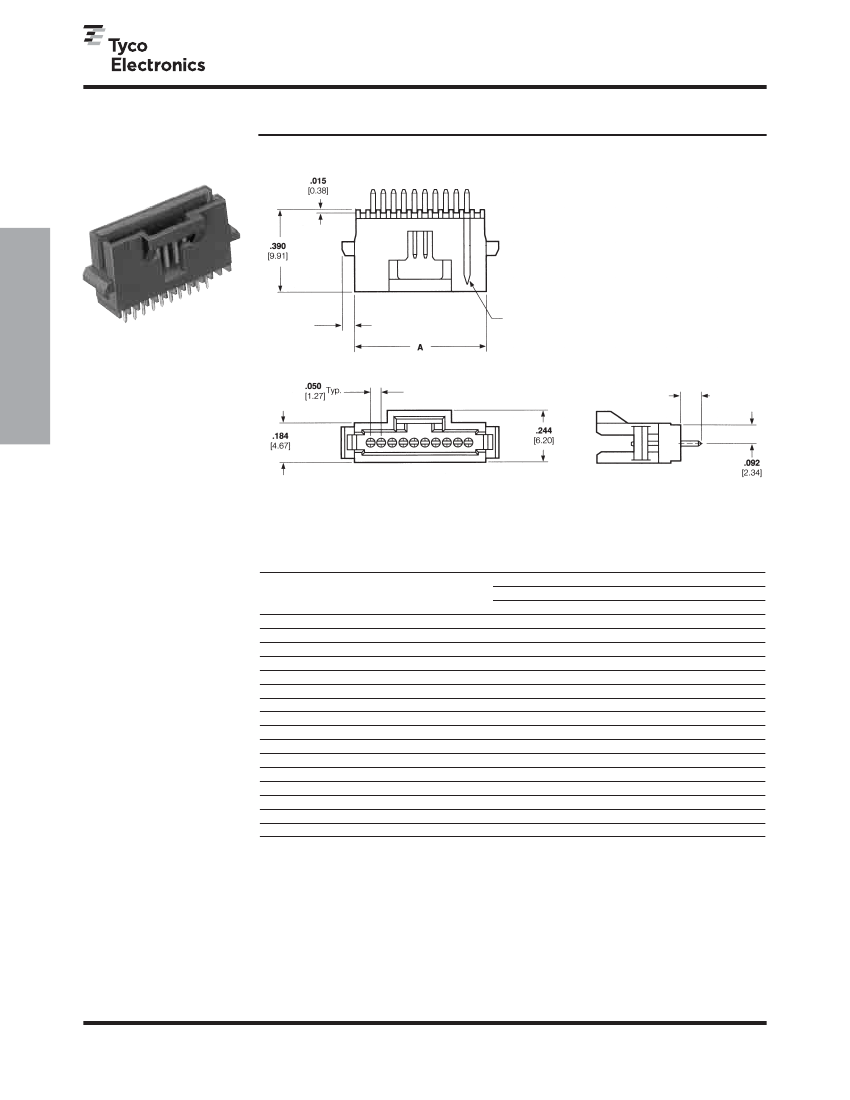

Single Row, Vertical
Headers, Shrouded and
Unshrouded
.060
[1.52]
2 Plc.
Circuit Identification
Feature*
Material and Finish
Housing
— Glass-filled thermoplastic,
black, 94V-0 rated
Contacts
— Copper alloy; duplex
plated .000030 [0.00076] gold in
mating area, .000150 [0.00381] tin
on solder posts, with entire contact
underplated .00050 [0.00127] nickel
Post Length
(See chart
below)
3
Related Product Data
Performance Characteristics
—
page 63
Mateable Connectors
— pages 38,
49 & 50
Board-to-Board Spacing
— page 63
PC Board Hole Layout
— page 41
No. of
Pos.
4
5
6
8
10
12
13
15
17
20
22
25
30
36
40
50
Dimension
A
.330
[8.38]
.380
[9.65]
.430
[10.92]
.530
[13.46]
.630
[16.00]
.730
[18.54]
.780
[19.81]
.880
[22.35]
.980
[24.89]
1.130
[28.70]
1.230
[31.24]
1.380
[35.05]
1.630
[41.40]
1.930
[49.02]
2.130
[54.10]
2.630
[66.80]
Part Numbers
Post Length
.100 [2.54]
5-104071-7
5-104071-2
5-104071-8
6-104071-0
5-104071-1
6-104071-1
6-104071-2
5-104071-3
6-104071-3
5-104071-4
6-104071-4
5-104071-5
5-104071-6
6-104071-6
6-104071-7
6-104071-9
.145 [3.68]
—
—
—
—
—
5-104804-3
—
5-104804-2
—
—
—
—
—
—
—
—
Technical Documents
—
page 64
Product Specification
108-1093
Application Specification
114-25031
*Circuit identification feature omitted on 4, 5, and 6 position headers.
Note:
All part numbers are RoHS compliant.
28
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMPMODU Interconnection System
Thru-Hole Headers––Shrouded, .050 x .100 [1.27 x 2.54] Centerline,
Board-to-Board
(Continued)

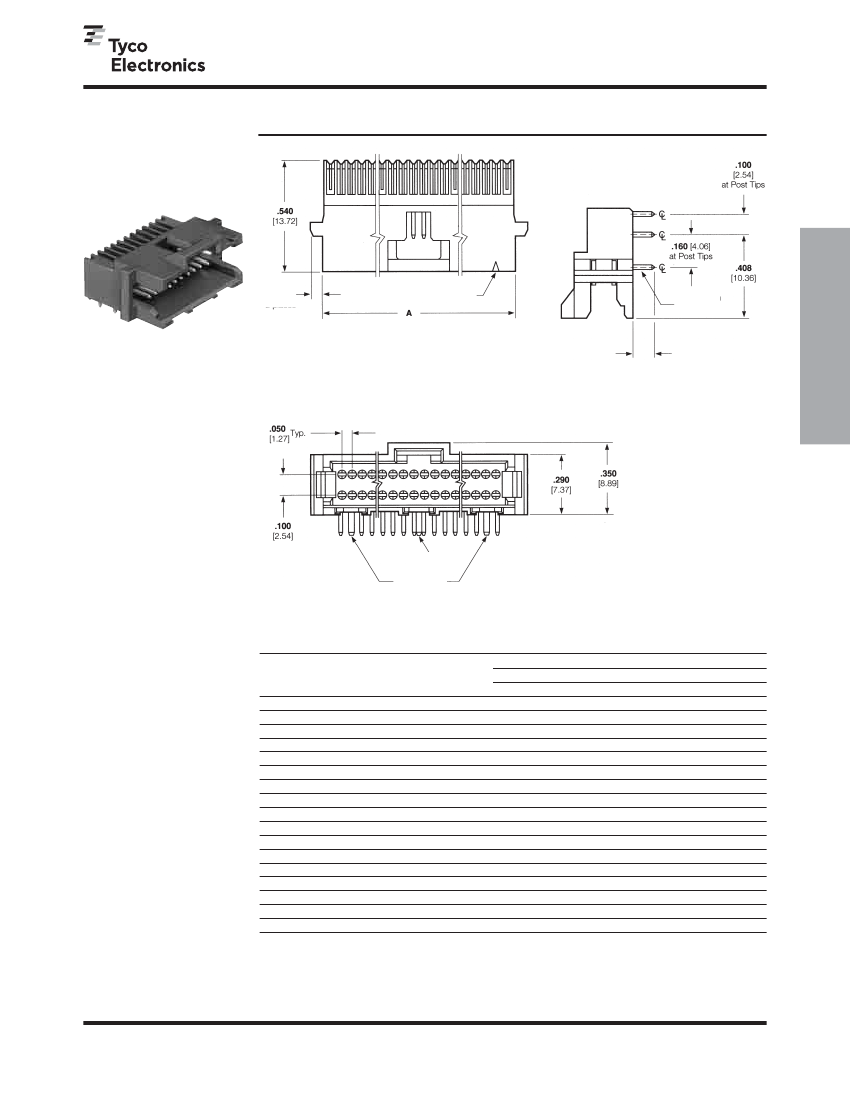

Double Row, Right-Angle
with Solder Clips
Headers, Shrouded and
Unshrouded
.060
[1.52]
2 Plc.
Circuit Identification
Feature*
Solder
Clip
Material and Finish
Housing
— Glass-filled thermoplastic,
black, 94V-0 rated
Contacts
— Copper alloy; duplex
plated .000030 [0.00076] gold in
mating area, .000150 [0.00381] tin
on solder posts, with entire contact
underplated .000050 [0.00127] nickel
Post Length
(See chart
below)
3
See Note 2.
See Note 1.
Related Product Data
Performance Characteristics
—
page 63
Mateable Connectors
— pages 40,
45, 51, 52, & 56
PC Board Hole Layout
— page 41
Technical Documents
—
page 64
Product Specification
108-1093
Application Specification
114-25031
No. of
Pos.
8
10
12
14
16
20
24
26
30
34
40
50
60
68
72
80
100
Dimension
A
.330
[8.32]
.380
[9.65]
.430
[10.92]
.480
[12.19]
.530
[13.46]
.630
[16.00]
.730
[18.54]
.780
[19.81]
.880
[22.35]
.980
[24.89]
1.130
[28.70]
1.380
[35.05]
1.630
[41.40]
1.830
[46.48]
1.930
[49.02]
2.130
[54.10]
2.630
[66.80]
Part Numbers
Post Length
.100 [2.54]
5-104069-8
5-104069-4
—
6-104069-0
6-104069-1
5-104069-1
6-104069-2
6-104069-3
5-104069-5
6-104069-4
5-104069-6
5-104069-2
5-104069-7
6-104069-8
6-104069-6
5-104069-3
6-104069-7
.145 [3.68]
—
6-104477-2
5-104477-8
—
—
5-104477-2
6-104477-0
—
5-104477-3
—
5-104477-4
5-104477-5
5-104477-9
—
5-104477-1
5-104477-6
5-104477-7
*Circuit identification feature omitted on 8, 10 and 12 position headers.
Notes:
1. Solder Clips located as shown for 16 through 100 position headers.
2. Solder Clips located as shown for 8 through 12 and 60 through 100 position headers.
Note:
All part numbers are RoHS compliant.
29
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
