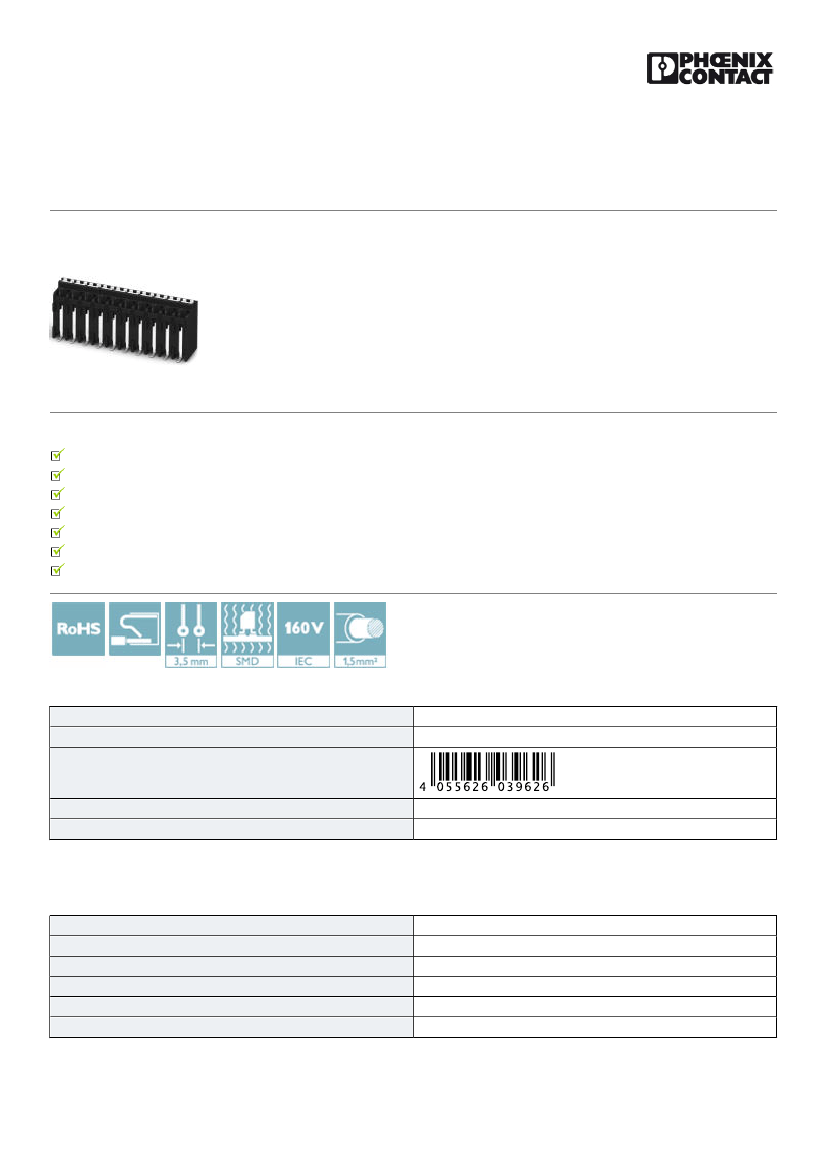

Sample set - SAMPLE SPT-SMD 1,5/ 5-V-3,5 - 1838416
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions:
5, Connection method: Push-in spring connection, Mounting: SMD soldering, Conductor/PCB connection
direction: 90 °, Color: black
The illustration shows the 10-
position version
Why buy this product
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Designed for integration into the SMT soldering process
Operation and conductor connection from one direction enable integration into front of device
Quick and convenient testing using integrated test option
Two soldering spots per position reduce the mechanical strain on the soldering spots
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
4055626039626
85369010
5 STK
5 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Width
Height
Pin dimensions
7.7 mm
3.50 mm
14 mm
18 mm
13.6 mm
0,7 x 0,3
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1838416
Sample set - SAMPLE SPT-SMD 1,5/ 5-V-3,5 - 1838416
Technical data
Dimensions
Pin spacing
Hole diameter
7 mm
1.1 mm
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Insulating material
Solder pin surface
Flammability rating according to UL 94
Stripping length
Number of positions
IIIa
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
320 V
EN-VDE
13.5 A
1.5 mm²
LCP
Sn
V0
8 mm
5
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
0.2 mm²
0.75 mm²
24
16
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1838416
Sample set - SAMPLE SPT-SMD 1,5/ 5-V-3,5 - 1838416
Drilling diagram
1,6
Dimensional drawing
7,7
a+4
a
1,75
4
11,4
a
3,5
(3,81)
2
10
2
3,5
(3,81)
Diagram
27
24
21
18
15
12
9
6
3
0
0
Operating current [A]
1,5 mm
10
20
2
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC B.01742
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
