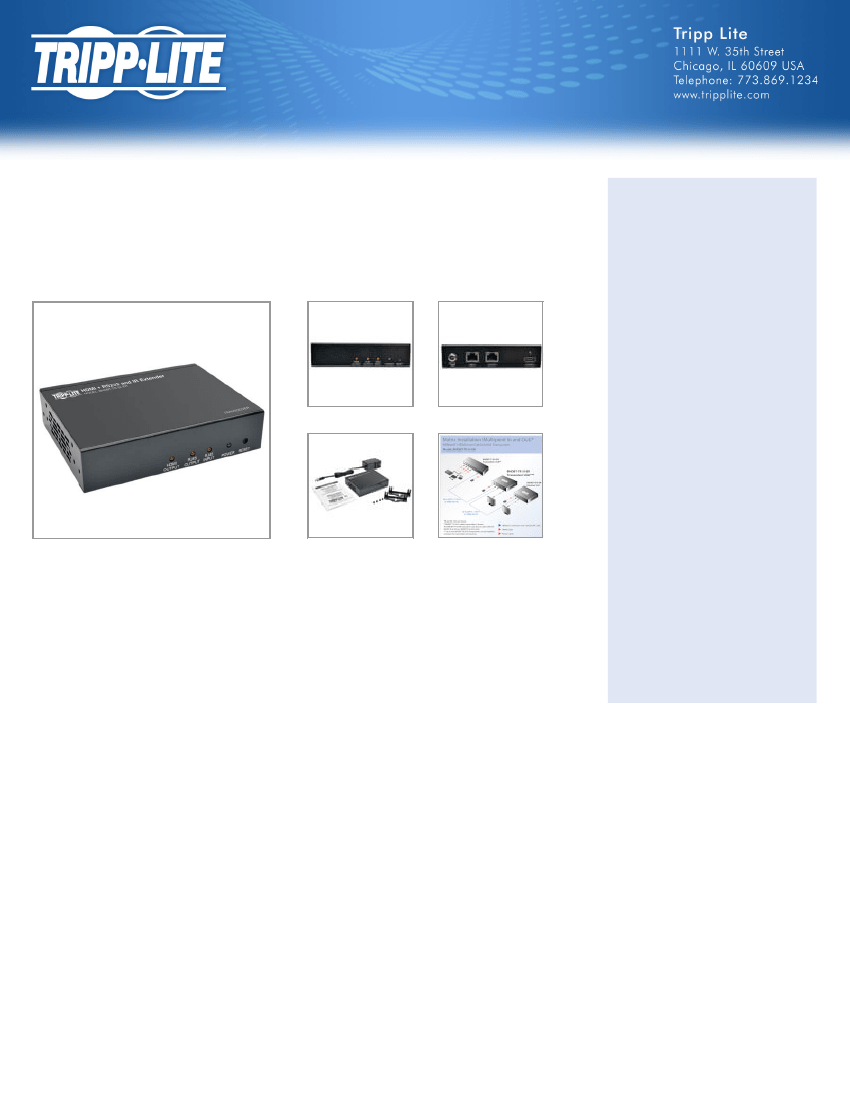

HDBaseT HDMI over Cat5e/6/6a Extender
Transceiver, Serial and IR Passthrough, 1080p,
Up to 500 ft. (150 m)
MODEL NUMBER:
BHDBT-TR-SI-ER
Highlights
q
Extends and expands your Tripp
Lite HDBaseT installation
q
Connects multiple monitors at
different links in a chain
q
Extends a 1080p @ 60 Hz
signal up to 500 feet (150 m)
q
Supports 7.1-channel surround
sound, DTS-HD and Dolby
TrueHD
q
Mounts easily to wall, rack or
pole
Package Includes
q
BHDBT-TR-SI-ER HDBaseT
HDMI over Cat5e/6/6a Extender
Transceiver
Transmits uncompressed HDMI video and audio, RS-232 serial and IR remote control signals over a
single Cat5e/6/6a cable up to 500 feet to projectors, monitors or televisions in a chain.
q
External Power Supply with
NEMA 1-15P Plug (Input:
100–240V, 50/60 Hz, 0.5A;
Output: 5V, 3A)
Description
Insert the BHDBT-TR-SI-ER HDBaseT HDMI over Cat5e/6/6a Extender Transceiver between the
transmitter and receiver units in your Tripp Lite HDBaseT installation to extend the range of your signal.
Connect its HDMI port to a projector, monitor or television to expand your installation.
q
Mounting hardware
Owner’s Manual
q
Using a single Cat5e/6/6a cable, the BHDBT-TR-SI-ER transmits uncompressed HDMI audio and video,
RS-232 serial and IR control signals up to 500 feet (150 m) from the previous unit in the chain (either the
transmitter or another transceiver), including 1920 x 1080 (1080p) signals @ 60 Hz. Add up to five
BHDBT-TR-SI-ER Extender Transceivers to the chain for a total range up to 3,000 feet (900 m) with a
monitor connected to each transceiver.
RS-232 serial signals and IR remote control signals (@ 39 KHz) also pass through the transceiver, so
your HDBaseT installation can control such RS-232 devices as scanners and touchscreen displays at
baud rates up to 115 Kbps. You can also operate a Blu-ray player using its remote when at the remote
monitor and vice versa. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK High-Speed
HDMI cables with locking connectors) prevent cables from coming loose or undone, ensuring an intact
signal. Attach the BHDBT-TR-SI-ER to a wall, rack or pole using the included hardware.
Features
Extends and Expands Your HDBaseT Installation
q
Extends a High Definition 1920 x 1080 (1080p) @ 60 Hz signal up to 500 feet (150 m)
Connects to next link in the chain with just one Cat5e/6/6a cable
Add up to 5 transceivers to further expand the range of your installation up to 3,000 feet (900 m) with a
1/3
q
q
monitor attached to each transceiver
q
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
Supports 36-bit Deep Color (12 bits per channel), CEC passthrough, 3D video, EDID and HDCP
q
Allows RS-232 and IR Control Passthrough
q
Passes through RS-232 serial signals at 115 Kbps full-duplex baud rates for devices such as scanners
and touchscreen monitors
q
Passes through IR remote control signals so you can operate your Blu-ray player with its remote while
standing at the remote monitor (and vice versa)
Easy to Set Up and Use
q
Plug-and-play engineering means no software or drivers to download and install
Inserts quickly between transmitter and receiver in Tripp Lite HDBaseT installation
Included mounting hardware lets you install each unit on a wall, rack or pole
Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK HDMI cables) prevent cables from
coming loose or disconnected, ensuring an intact signal
q
q
q
TAA-Compliant
q
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
UPC Code
AC Adapter
037332187048
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 3A
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Included Mounting Accessories
Color
Unit Weight Details
2.20 x 8.40 x 6.50
5.59 x 21.34 x 16.51
1.34
0.61
1.2 x 5 x 4
Y
Black
1lb.
ENVIRONMENTAL
Operating Temperature Range
0 to 40 C (32 to 104 F)
2/3
Storage Temperature Range
Relative Humidity
-20 to 60 C (-4 to 140 F)
20 to 90%
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
500
500
500
500
500
500
500
500
500
500
CONNECTIONS
Ports
Side A - Connector 1
Side B - Connector 1
0
HDMI (FEMALE)
(2) RJ45 (FEMALE)
FEATURES & SPECIFICATIONS
IR Remote Extension Support
RS-232 Serial Extension Support
10/100 Ethernet Extension Support
Technology
Yes
Yes
No
HDBaseT; HDMI; Serial (RS232); IR
CERTIFICATIONS
Approvals
CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period
(Worldwide)
1-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
3/3
