Flush-type connector - SACCBP-FSD-4CON-M16/5,0-933SCO - 1402474
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Flush-type socket, shielded, 4-pos., M12, D-coded, rear/screw mounting with M16 thread, with 5 m cable, 4 x
0.34 mm²
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356616669
85444290
Made to Order (non-returnable)
1 STK
Technical data
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

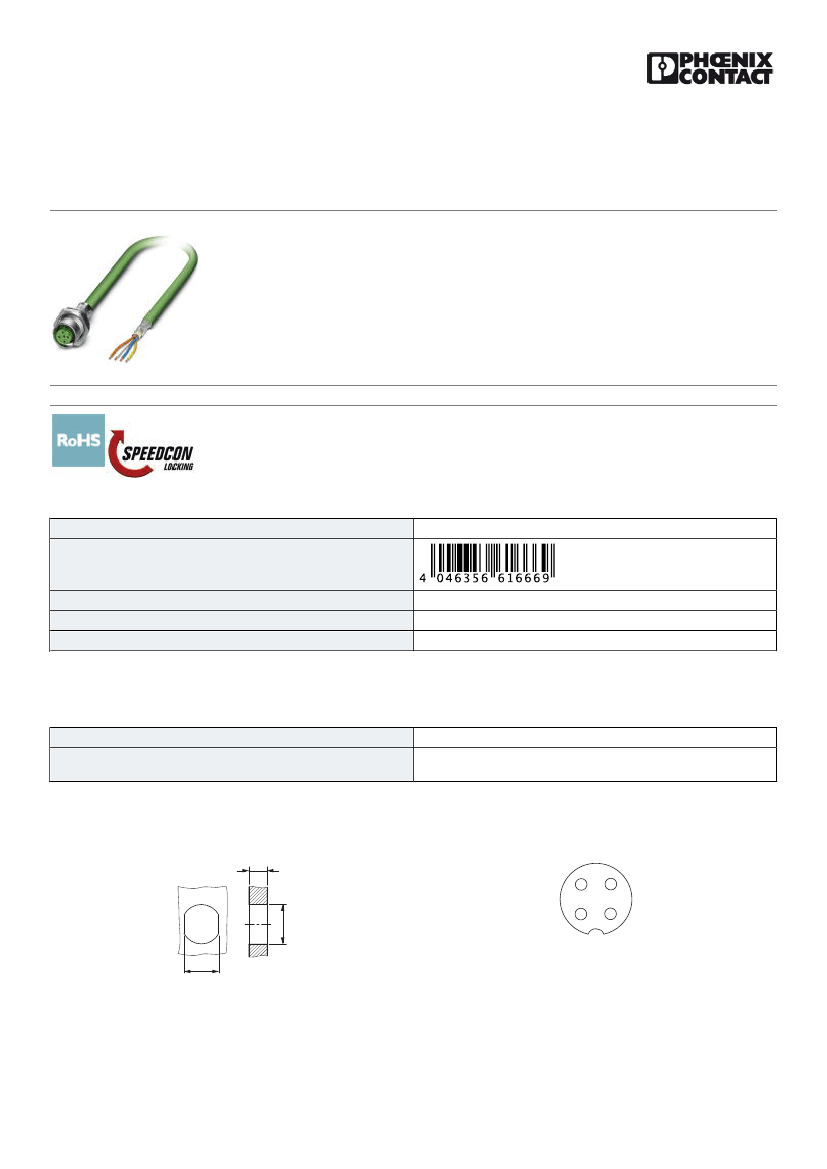

Drawings
Dimensional drawing
4,5
Schematic diagram
3
4
Ø15,9
⁺⁰¹
2
1
13,5
⁺⁰¹
Pin assignment M12 socket, 4-pos., D-coded, female side
Housing cutout for M16 fastening thread, mounting panel with feed-
through hole (alternatively with surface as protection against rotation)
11/13/2016 Page 1 / 2
https://www.phoenixcontact.com/hq/products/1402474
Flush-type connector - SACCBP-FSD-4CON-M16/5,0-933SCO - 1402474

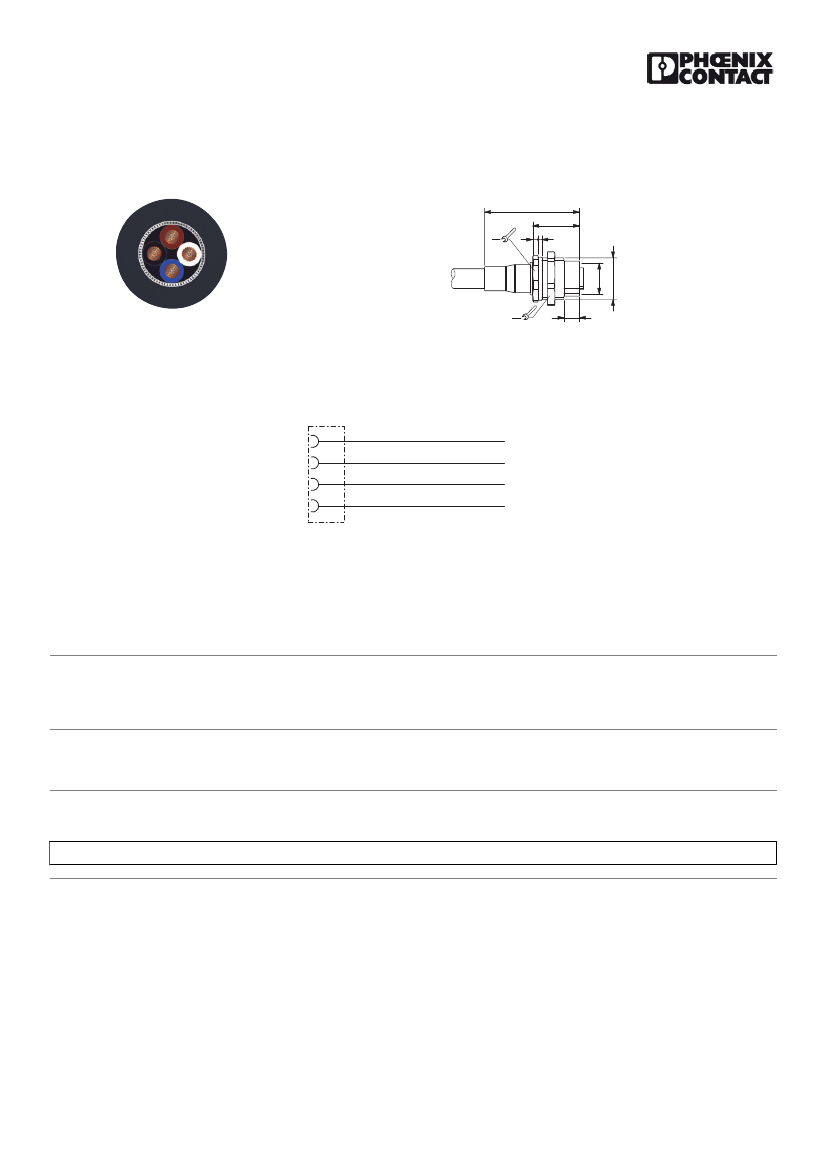

Cable cross section
Dimensional drawing
36,5
18
17
2
1,5
19
6
PUR halogen-free black [PUR]
M12 flush-type connector
Circuit diagram
1
2
4
3
BN
WH
BK
BU
Contact assignment of the M12 socket
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC B.00767
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
M16x1,5
M12
