PFL2510-332MTC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PFL2510-332MTC

PFL2510-332MTC: DescriptionGeneral Purpose Inductor, 3.3uH, 20%, 1109; CategoryPassive components inductor; File Size97KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

PFL2510-332MTC Overview

General Purpose Inductor, 3.3uH, 20%, 1109

PFL2510-332MTC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	1109
Reach Compliance Code	compliant
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

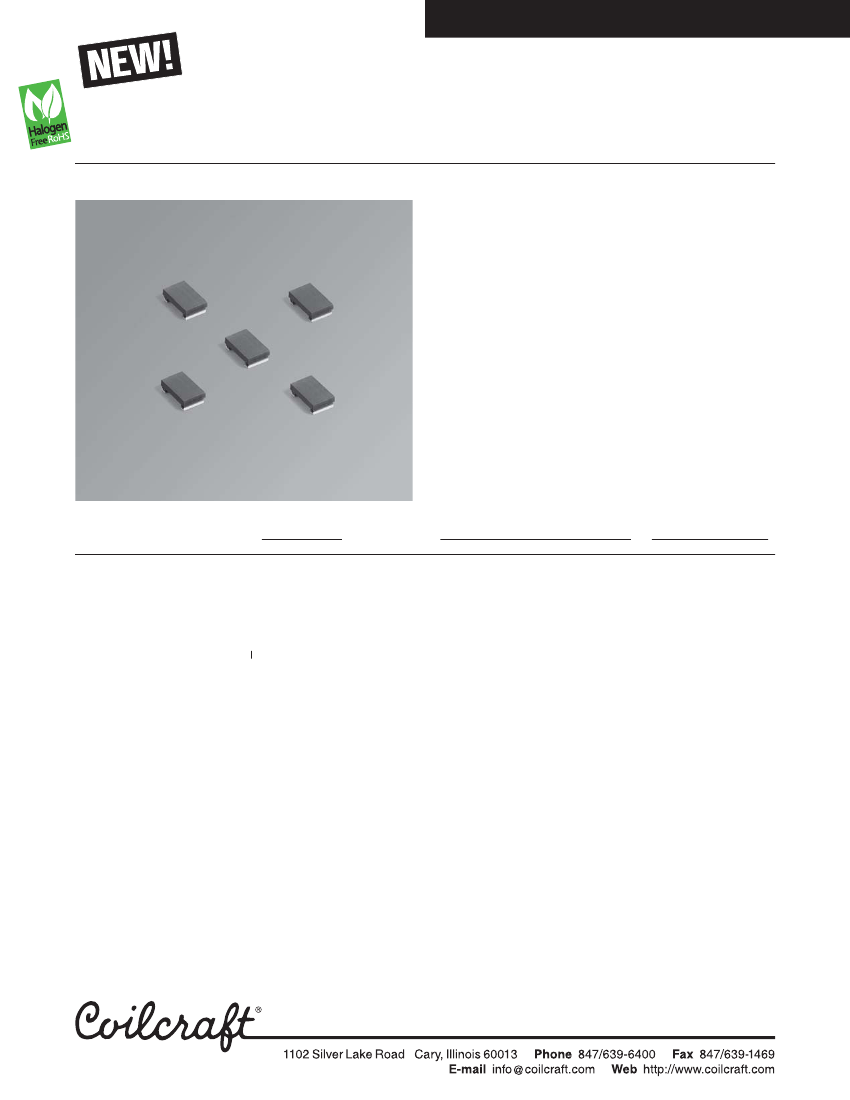

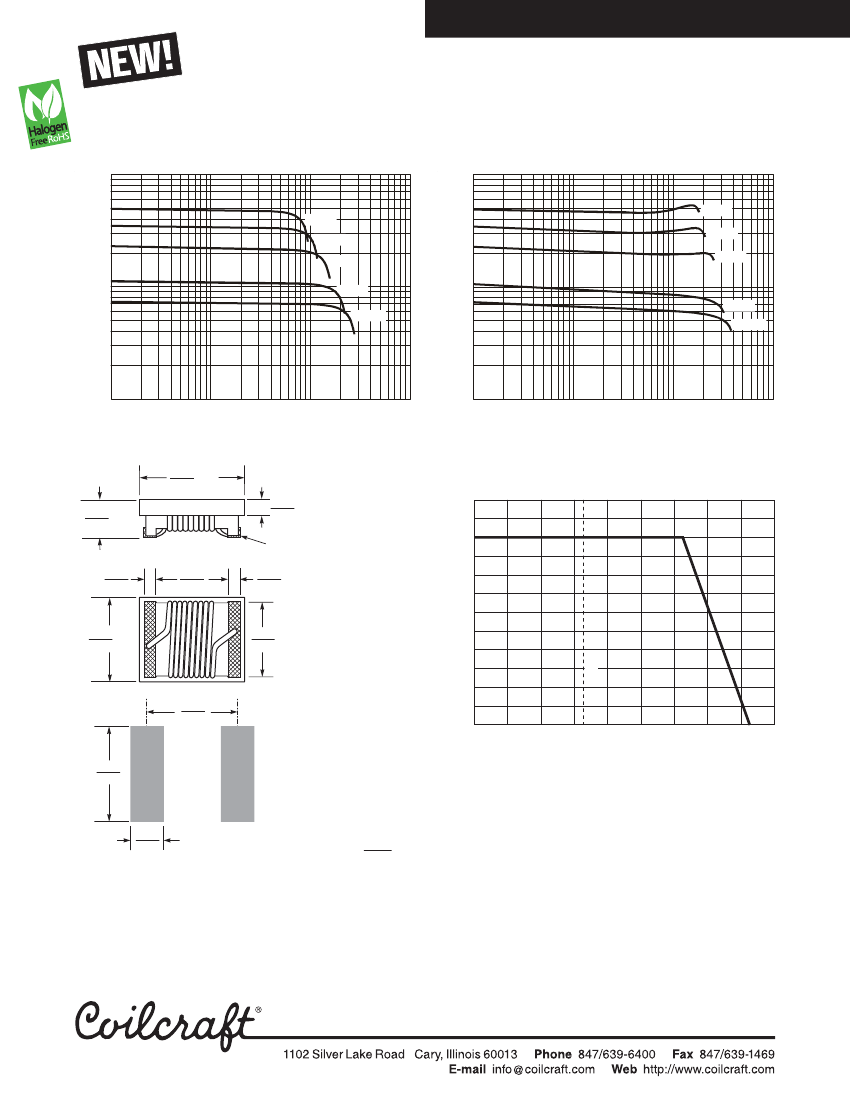

Document 829-1

Shielded Power Inductors – PFL2510

• Low cost, low profile 1008 size power inductor

• Provides the current handling of much larger inductors;

up to 2300 mA

Environmental

RoHS compliant, halogen free

Core material

Composite

Terminations

RoHS compliant matte tin over nickel over silver-

platinum-glass frit. Other terminations available at additional cost.

Weight

17.7 mg

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

2000/7″ reel; 7500/13″ reel. Plastic tape: 8 mm wide,

0.23 mm thick, 4 mm pocket spacing, 1.14 mm pocket depth

PCB washing

Only pure water or alcohol recommended

Part number

PFL2510-681ME_

PFL2510-102ME_

PFL2510-222ME_

PFL2510-332ME_

PFL2510-472ME_

Inductance

±20% (µH)

0.68

1.0

2.2

3.3

4.7

DCR (mOhms)

typ

max

195

490

760

240

590

900

SRF typ

(MHz)

500

375

310

245

175

10% drop

1300

850

700

660

Isat

(mA)

20% drop

1900

1600

1100

890

830

30% drop

2300

1800

1300

990

890

Irms

(mA)

20°C rise 40°C rise

1400

830

530

430

1800

1900

1100

710

580

1. When ordering, please specify

packaging

codes:

PFL2510-472MEC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel).

= Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).

2. Inductance tested at 7.9 MHz, 0.1 Vrms using a Coilcraft SMD-A test fixture with an Agilent/HP 4286 impedance analyzer and Coilcraft-provided

correlation pieces.

3. DCR measured using a micro-ohmmeter.

4. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.

5. DC current that causes the specified inductance drop from its value without current.

6. Current that causes the specified temperature rise from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Specifications subject to change without notice.

Please check our website for latest information.

Document 829-1

Revised 08/23/10
