76155-1318 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 76155-1318

76155-1318: DescriptionHigh Speed / Modular Connectors Impact BP 4x6 LW Sn; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

76155-1318 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76155-1318	-	-	View	Buy Now

76155-1318 Overview

High Speed / Modular Connectors Impact BP 4x6 LW Sn

76155-1318 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Factory Lead Time	11 weeks
body width	0.819 inch
subject depth	0.47 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
maximum insertion force	.3336 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	76155
Plug contact pitch	0.075 inch
Match contact row spacing	0.053 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	12
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.055 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	72
Evacuation force-minimum value	.14734 N

Preview

Download Datasheet

View All

This document was generated on 10/10/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

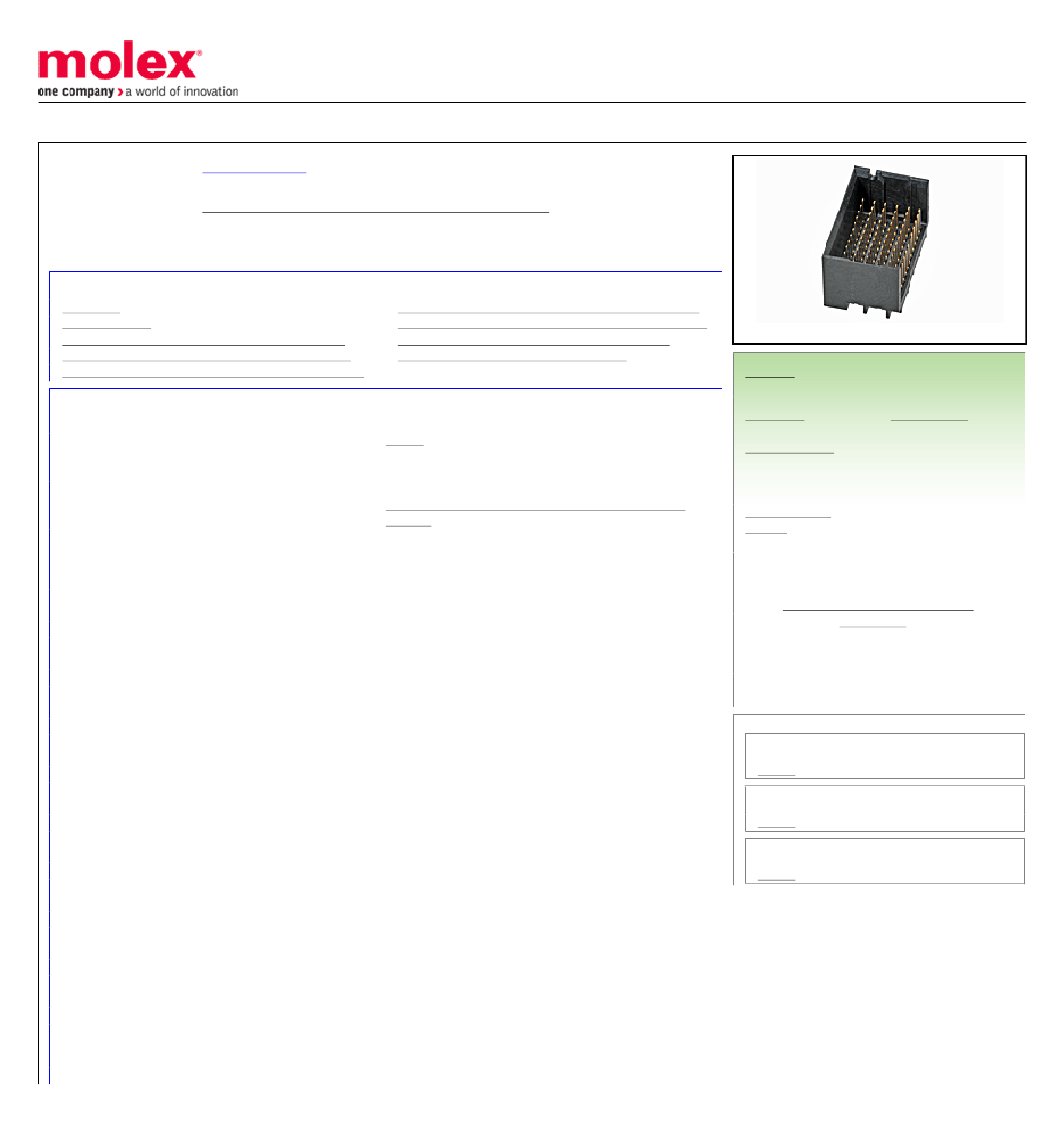

0761551318

Active

Impact Backplane Connector and Cable Assembly System

Impact 100 Ohm 4 Pair Vertical Backplane Header, Unguided, Left Endwall, 6

Columns, 72 Circuits, Pin Length 5.50mm, Plated Through Hole Dimension 0.39mm,

Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-76060-999-001 (PDF)

Product Specification TS-76160-0001-001 (PDF)

Application Specification AS-76060-990-001 (PDF)

General

Product Family

Series

Application

Application Tooling Documents

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Application Specification AS-76060-994-001 (PDF)

Application Specification AS-76060-9999-001 (PDF)

Packaging Specification PK-70873-757 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

Backplane Connectors

76155

Conventional

TM-622018799

PCB Header

Impact Backplane Connector and Cable Assembly

System

Impact

884982747920

Black

200

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

2.024/g

Vertical

1.40mm

None

1.00mm

Tray

1.90mm

0.762µm

-55°C to +85°C

Through Hole - Compliant Pin

0.75A

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

76155 Series

Mates With

76160 Impact 100 Ohm Daughtercard

Use With
