22-01-2095 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 22-01-2095

Preview

22-01-2095: DescriptionHeaders u0026 Wire Housings CRIMP TERM 22-30 TIN; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

22-01-2095 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22-01-2095	-	-	View	Buy Now

22-01-2095 Overview

Headers u0026 Wire Housings CRIMP TERM 22-30 TIN

22-01-2095 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks
Samacsys Description	Molex KK 254 Female Connector Housing, 2.54mm Pitch, 9 Way, 1 Row
Other features	KK, POLARISED
body width	0.19 inch
subject depth	0.5 inch
body length	0.918 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON66
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
polarization key	POLARIZED RIB(S)
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

This document was generated on 11/17/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0022012095

Active

KK® Interconnect System - Molex

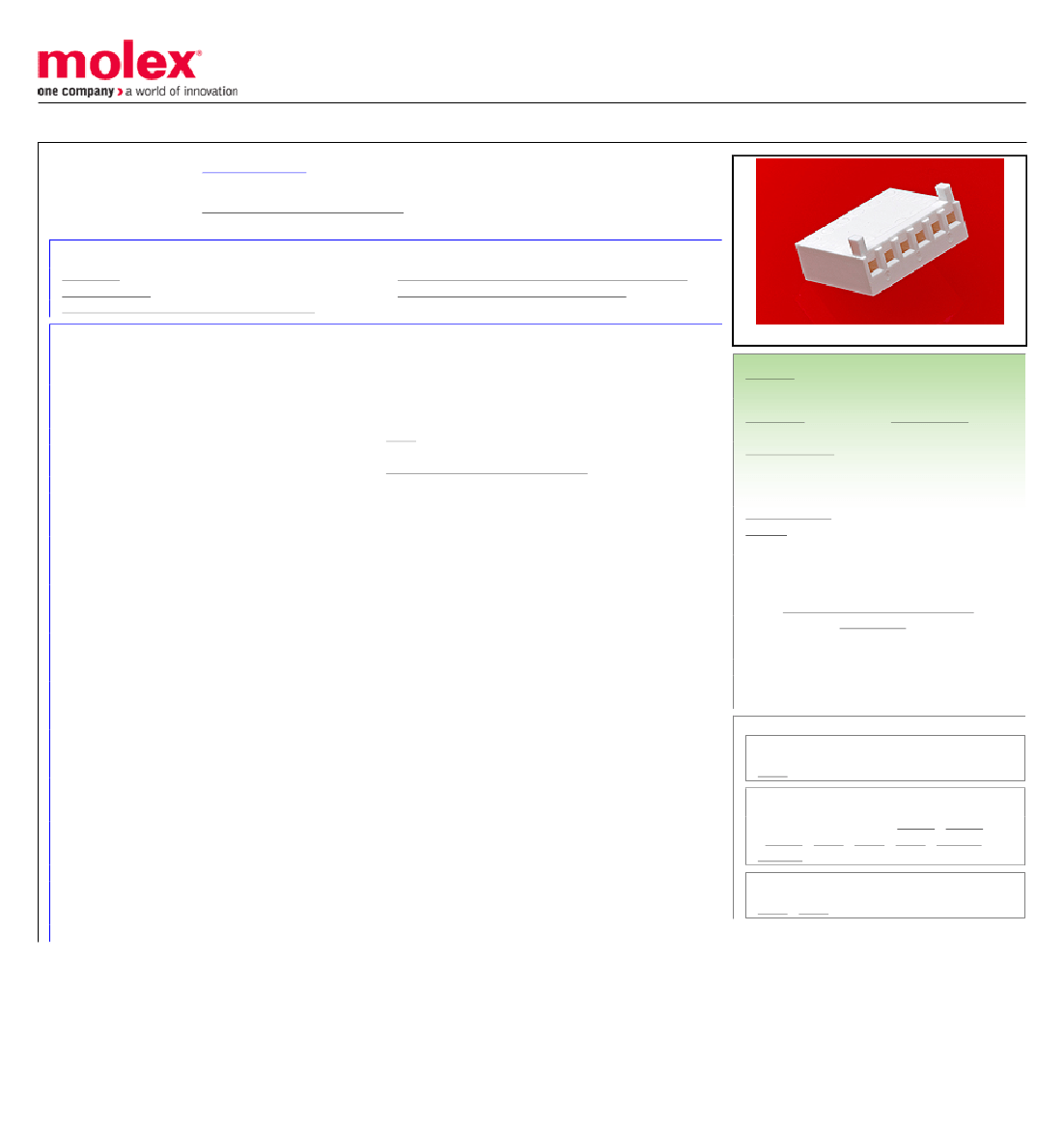

KK® 254 Crimp Housing, Friction Ramp, 9 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-10-07-001 (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-99020-0088-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19880

E29179

Crimp Housings

6471

Signal, Wire-to-Board

KK® Interconnect System - Molex

KK® 254

800753741119

9

Natural (White)

94V-0

Female

No

Yes

Nylon

0.919/g

1

Bag

No

2.54mm

Yes

No

See Product Specification

WAVE

6471-09(I)

PS-10-07-001, PS-99020-0088-001

SD-6471-N*-**

Use With

2759 , 4809 KK® Crimp terminal

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/21/2016 (20 June

2016)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

6471 Series

Mates With

KK®254 PCB Headers 42375 , 42377

, 42376 , 4030 , 6373 , 6410 , 171856 ,

171857

This document was generated on 11/17/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
