800-013-07Z19-19PN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 800-013-07Z19-19PN

800-013-07Z19-19PN: DescriptionCircular MIL Spec Connector MM UN MATING HERM JAM NUT PIN SLDR CUP; CategoryThe connector The connector; File Size208KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

800-013-07Z19-19PN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800-013-07Z19-19PN	-	-	View	Buy Now

800-013-07Z19-19PN Overview

Circular MIL Spec Connector MM UN MATING HERM JAM NUT PIN SLDR CUP

800-013-07Z19-19PN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	17 weeks 1 day
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell material	STAINLESS STEEL
Housing size	9
Termination type	SOLDER
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

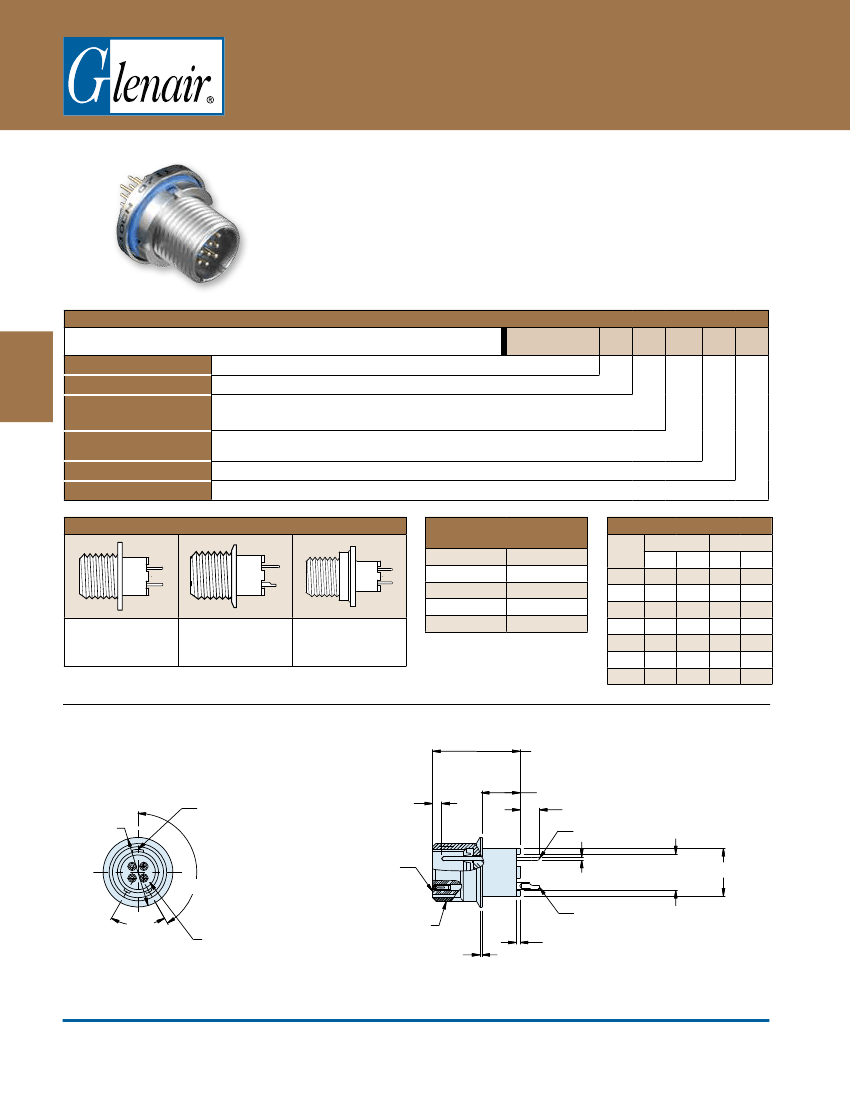

Series 800 Mighty Mouse Hermetic UN Mating Thread

Hermetic Receptacle

800-013 Ordering Information

Compact, Rugged Series 800

hermetic receptacles feature 304L stainless steel

shells and vitreous glass insulators. Contacts are gold-plated iron alloy. UN mating

thread. Available with male pin contacts (contact Glenair for hermetic connectors

with female socket contacts). 100% helium leak tested to meet 1 x 10-7 cc/second

maximum leak rate. 1000 psi open face (unmated) pressure rating. Contacts are

factory-installed and are non-removable. Terminate to wires with solder cup

versions, or choose PC tail versions for thru-hole soldering to rigid or flexible circuit

boards. Available in all contact and insert arrangements between size 5 and 12.

How To Order

Sample Part Number

800-013

Hermetic Receptacle

= Square Flange

= Solder Mount

= Jam NutSee Shell

= Stainless Steel / Passivated RoHS Compliant

= Stainless Steel / Nickel Plated

See Contact Arrangements page C-2

= Pin, Solder Cup

= Normal

= Socket, Solder Cup

= Pos. Y

= Pin, PC Tail

= Socket, PC Tail

Series 800

Series

Shell Style (See Table I)

Shell Material and Finish

Shell Size - Insert

Arrangement

Contact Type

Shell Key Position

-02

Square Flange

ØM

150°

60°

-02

6-7

= Pos. X

= Pos. Z See page C-3

Table I: Shell Style

Table II: Contact

Dimensions

Contact Size

Ø EE

.022/.018

.028/.024

.064/.060

.096/.092

Table III: CC and DD Dia.

Shell

Size

Ø CC O.D.

in.

.290

.330

.380

.450

.500

.575

.660

mm.

7.37

8.38

9.65

11.43

12.70

14.61

16.76

Ø DD O.D.

in.

.197

.256

.325

.390

.452

.520

.610

mm.

5.00

6.50

8.26

9.91

11.48

13.21

15.49

-03

Solder Mount

-07

Jam Nut

Solder mount receptacle - shell style 03 - shell size 5 and 6

.575 (14.61) MAX PIN

.675 (17.15) MAX SOCKET

.060 (1.52)

PIN CONTACT

LOCATION

.180 (4.57)

.125 (3.18) MIN

PC TAIL

SOCKET

INSERT

ø DD*

ø CC*

MASTER

KEYWAY REF

See Table II

SOLDER CUP

INSERT

ARRANGEMENT

FOR REFERENCE

ONLY

N THREAD

.013 (0.33)

* See Table III

.025 (0.64) HEIGHT

4X .080 WIDTH

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

C-20

E-Mail: sales@glenair.com

800-013-07Z19-19PN Related Products

	800-013-07Z19-19PN	800-013-07Z16-7PN	800-013-07P9-19PN
Description	Circular MIL Spec Connector MM UN MATING HERM JAM NUT PIN SLDR CUP	Circular MIL Spec Connector MM UN MATING HERM JAM NUT PIN SLDR CUP	Circular MIL Spec Connector MM UN MATING HERM JAM NUT PIN SLDR CUP
Is it Rohs certified?	conform to	conform to	-
Maker	Glenair	Glenair	-
Reach Compliance Code	compliant	compliant	-
Factory Lead Time	17 weeks 1 day	17 weeks 1 day	-
Other features	POLARIZED	POLARIZED	-
Back shell type	SOLID	SOLID	-
Body/casing type	RECEPTACLE	RECEPTACLE	-
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-
Contact point gender	MALE	MALE	-
Coupling type	THREADED	THREADED	-
DIN compliance	NO	NO	-
empty shell	NO	NO	-
Filter function	NO	NO	-
IEC compliance	NO	NO	-
MIL compliance	NO	NO	-
Mixed contacts	NO	NO	-
Installation type	PANEL	PANEL	-
Options	HERMETIC	HERMETIC	-
Shell material	STAINLESS STEEL	STAINLESS STEEL	-
Housing size	9	6	-
Termination type	SOLDER	SOLDER	-
Total number of contacts	19	7	-
