951266-2520-AR-PR

Description
Headers u0026 Wire Housings 66P PIN STRP HDR 2R STRT SMT 10U AU
CategoryThe connector    The connector
File Size214KB,3 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Environmental Compliance
Download Datasheet Parametric View All

951266-2520-AR-PR Online Shopping

Suppliers Part Number Price MOQ In stock
951266-2520-AR-PR - - View Buy Now

951266-2520-AR-PR Overview

Headers u0026 Wire Housings 66P PIN STRP HDR 2R STRT SMT 10U AU

951266-2520-AR-PR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other features3M
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (10) OVER NICKEL (100)
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts66
UL Flammability Code94V-0
Base Number Matches1
3M

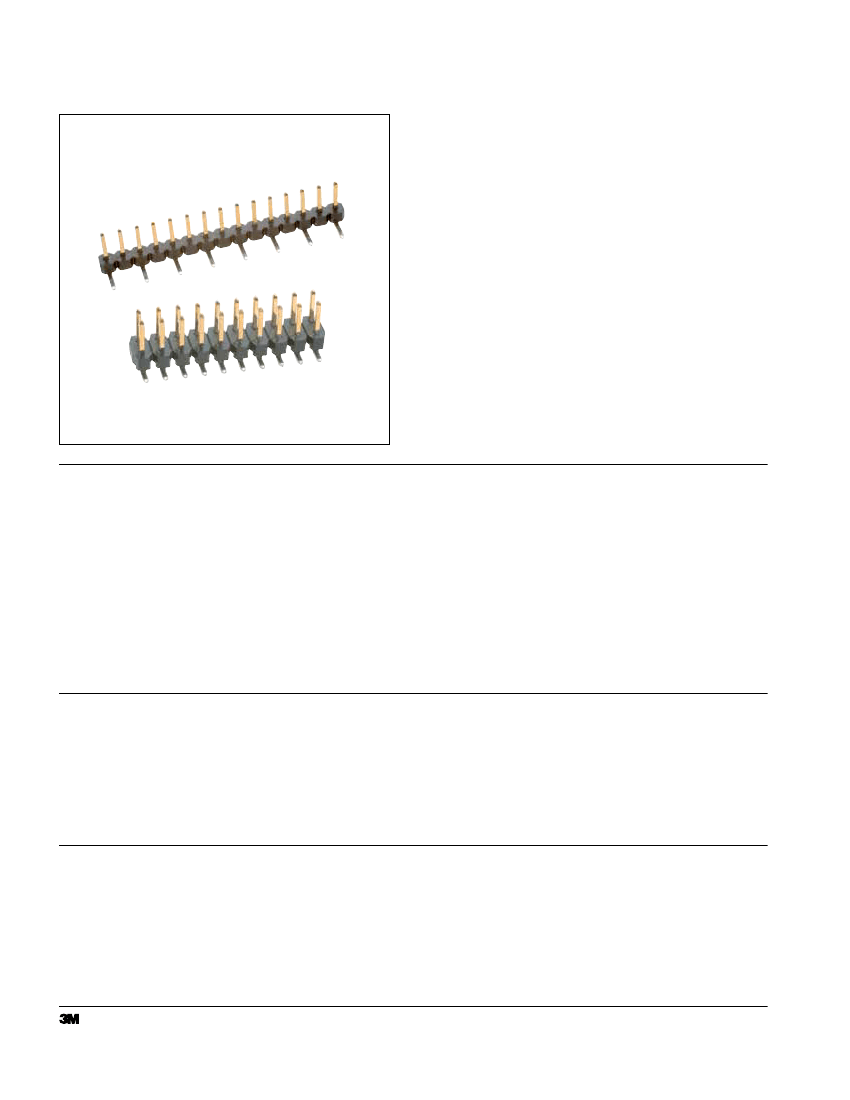

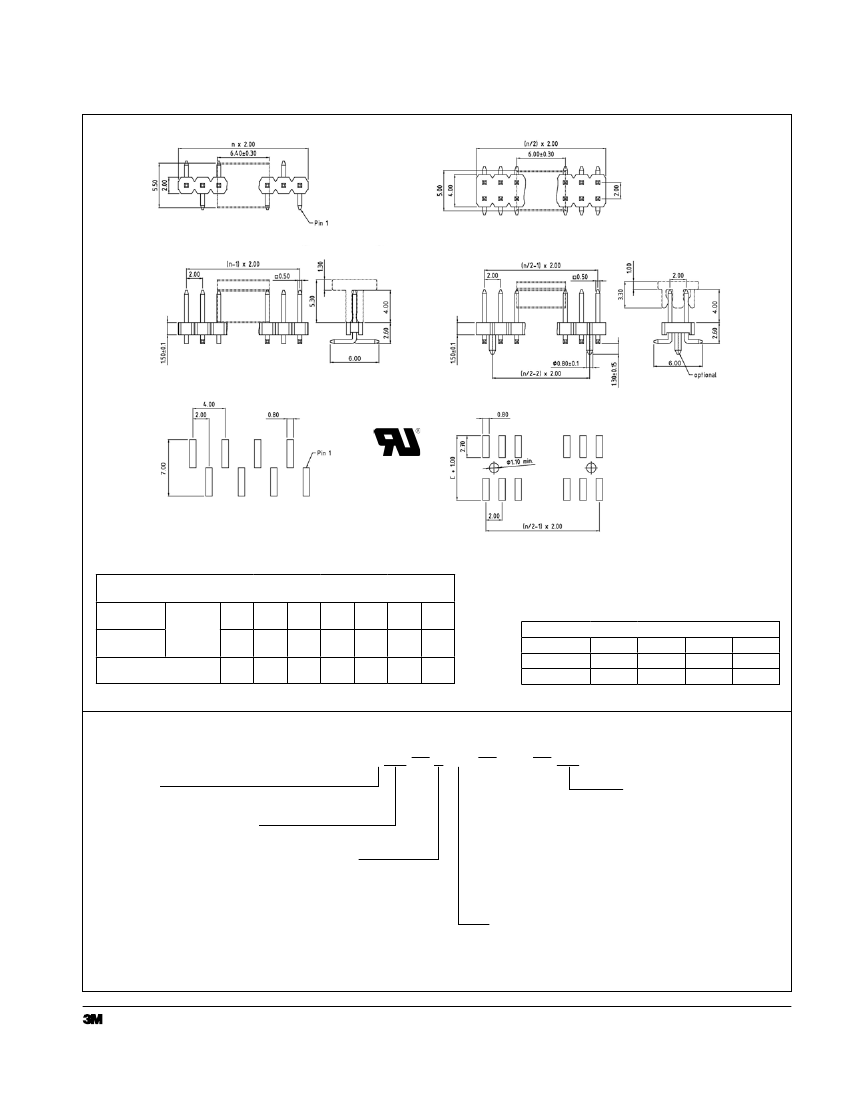

Pin Strip Header
2 mm and 2 mm x 2 mm Straight, Surface Mount
951 Series
High temperature dielectric
“No lead” reflow solder compatible
Optimizes use of PC board space
End stackable feature
Mates with boardmount and wiremount products
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the RoHS compliance section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: January 2, 2013
TS-2157-F
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Solder Tail Area:
High Temperature Thermoplastic
UL 94V-0
Black
Copper Alloy
1.25–2.5 µm [100 µ"] Nickel
Flash Gold
1–3 µm [40–118 µ"] Matte Tin
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Transition Resistance:
1A
> 5 x 10
8
Ohm at 100 V
DC
1000 V
DC
20 mOhm
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
max. 260 °C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Interconnect Solutions
http://www.3Mconnectors.com
