Interface module - VIP-3/SC/FLK40/LED - 2322100
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

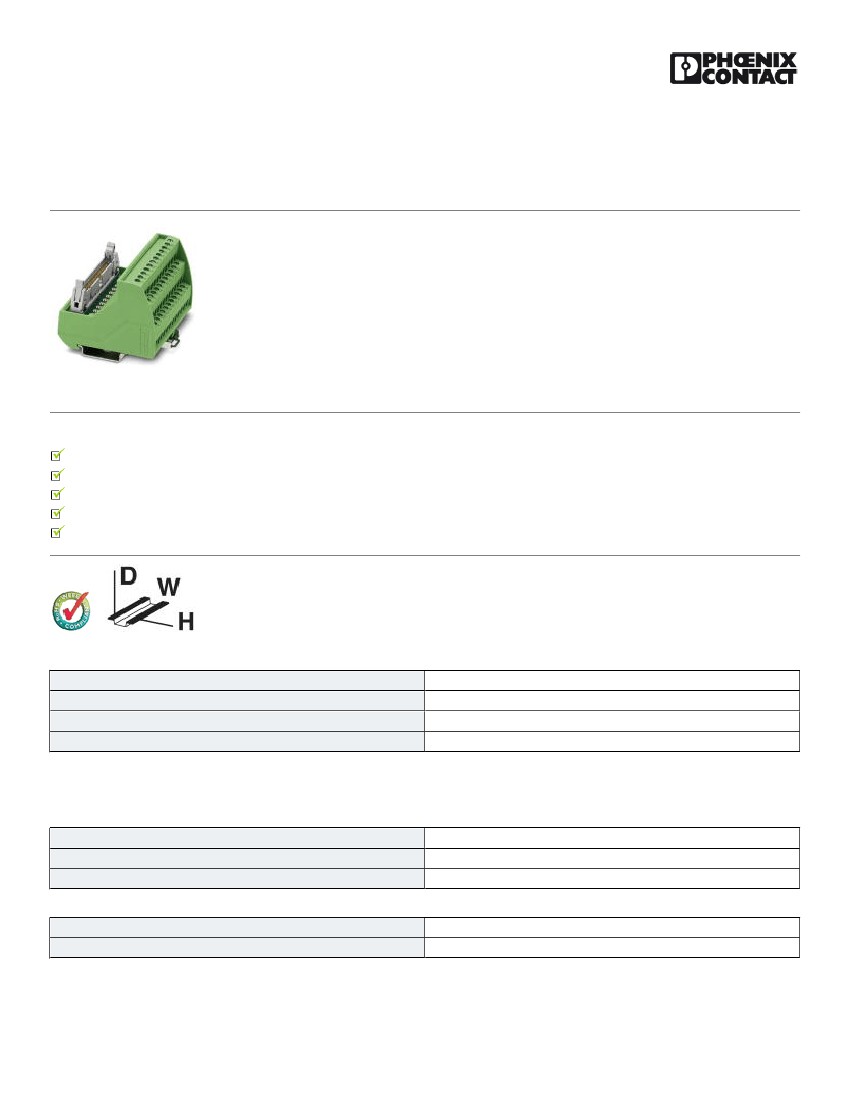

VARIOFACE module, with screw connection and flat-ribbon cable connector, for mounting on NS 35 rails, with
pin strip and short and long locking latches for socket strips, 40-pos., with LED
The illustration shows a 34-position
version
Product Features
10 to 64-pos.
Metal foot
According to IEC 60603-13
1:1 connection
Screw connection
Packing unit
1 pc
200.0 GRM
85369010
United States
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Width
Height
Depth
77.8 mm
69 mm
62 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
02/25/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/2322100
Interface module - VIP-3/SC/FLK40/LED - 2322100
Technical data
General
Max. permissible operating voltage
Max. perm. current (per branch)
Number of positions
Status display
Mounting position
Standards/regulations
24 V DC
1A
40
LED
any
IEC 60664
DIN EN 50178
IEC 62103
Pollution degree
Surge voltage category
2
II
Connection data for connection 1
Connection name
Connection in acc. with standard
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Stripping length
Screw thread
PCB connection
IEC / EN
Screw connection
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
8 mm
M3
Connection data for connection 2
Connection name
Number of connections
Connection method
Number of positions
Flat-ribbon cable connection
1
IDC/FLK pin strip (2.54 mm)
40
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
27250313
27250313
27250313
27250313
27242608
02/25/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/2322100
Interface module - VIP-3/SC/FLK40/LED - 2322100
Classifications
eCl@ss
eCl@ss 7.0
eCl@ss 8.0
27141152
27141152
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001434
EC001604
EC001604
EC002780
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211824
39121421
39121421
39121421
39121421
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
30-12
1A
02/25/2015 Page 3 / 4
https://www.phoenixcontact.com/us/products/2322100
Interface module - VIP-3/SC/FLK40/LED - 2322100
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
30-12
1A
CSA
mm²/AWG/kcmil
Nominal current IN
24-12
1A
EAC
cULus Recognized
Drawings
Circuit diagram
1
2
3
n
1
2
3
n
-
-
