374148 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 374148

374148: DescriptionSignal Conditioning 2.45GHz Balun Band Pass Filter; CategoryThe connector; File Size55KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

374148 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	374148	-	-	View	Buy Now

374148 Overview

Signal Conditioning 2.45GHz Balun Band Pass Filter

374148 Parametric

Parameter Name	Attribute value
Product Category	DIN 41612 Connectors
Manufacturer	ERNI
RoHS	Details
Product	Headers
Number of Positions	32 Position
Number of Rows	3 Row
Pitch	2.54 mm
Type	M
Termination Style	Solder Pin
Mounting Angle	Right
Current Rating	2 A
Contact Plating	Gold
Contact Material	Copper Alloy
Contact Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Resistance	10000 MOhms
Packaging	Tray
Rows Loaded	3
Factory Pack Quantity	30
Tail Length	3 mm

Preview

Download Datasheet

View All

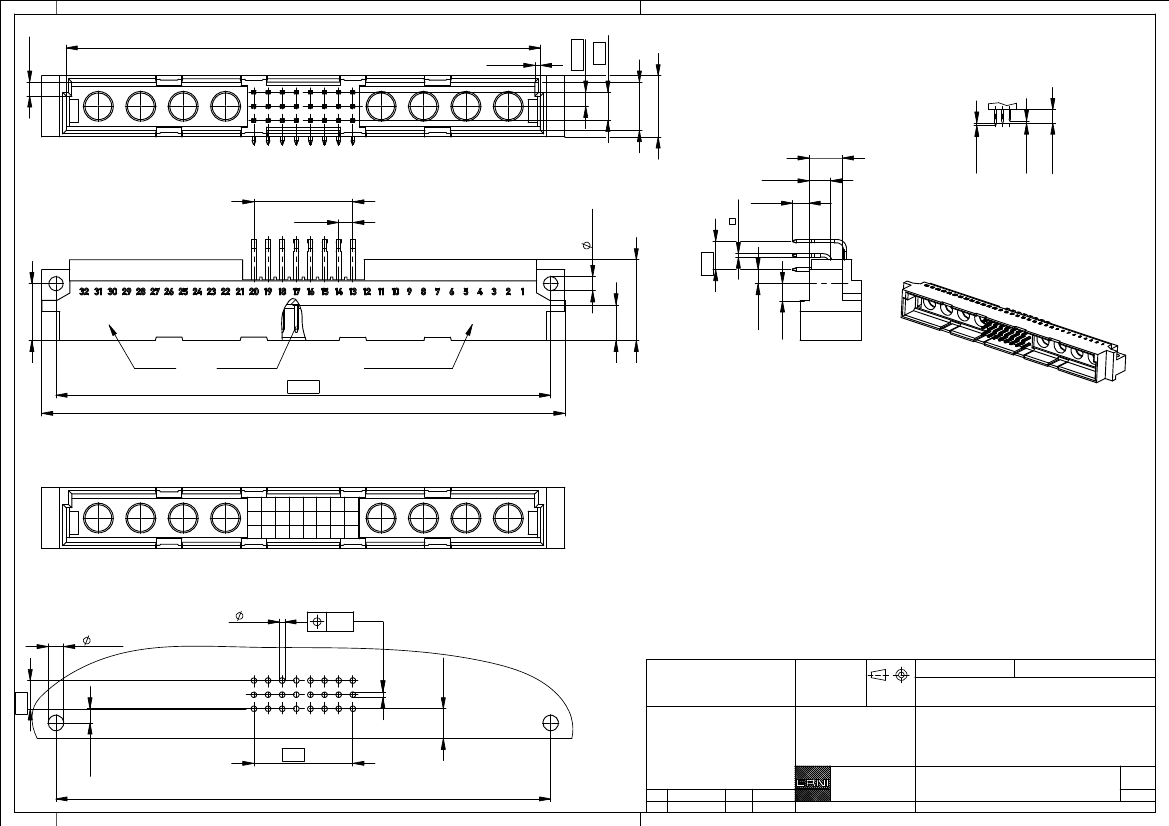

2,5

-0,2

-0,1

2,54

5,08

85,2

+0,2

Stecklänge / mating length

11,1 max.

+0,1

ESL

8,7

±0,1

3,95

7 x 2,54 = 17,78

0,6

+0,1

-0,4

2 x 2,54 (=5,08)

2,5

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

2,54

10,2

-0,2

14,5

±0,1

Datum /

date code

Stecklänge/

mating length

88,9

94 max.

Anforderungsstufe/

class

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4

S S S S S S S S

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen /

performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten-Lochbild /

PCB drillhole pattern

±0,1

2,8

2 x 2,54 (=5,08)

+0,1

alle Löcher/

0,05

all holes

Bedruckung siehe Zeichnung 294905

Marking see drawing 294905

5,3

±0,1

+0,1

XXXXXXX

ERNI

RC 2

6,4

-0,1

2,54

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

2,54

7 x 2,54 (=17,78)

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste M 24-8 Löt

Male Connector 24-8 solder

88,9

www.ERNI.com

Index

Date

374148

Class

STVM

4,8

±0,2

0,8

±0,1

0,8

±0,1
