254832 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 254832

254832: DescriptionFilm Capacitors 0.01uF 400V 5%; CategoryThe connector The connector; File Size73KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

254832 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	254832	-	-	View	Buy Now

254832 Overview

Film Capacitors 0.01uF 400V 5%

254832 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.197 inch
subject depth	0.37 inch
body length	0.754 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	12 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

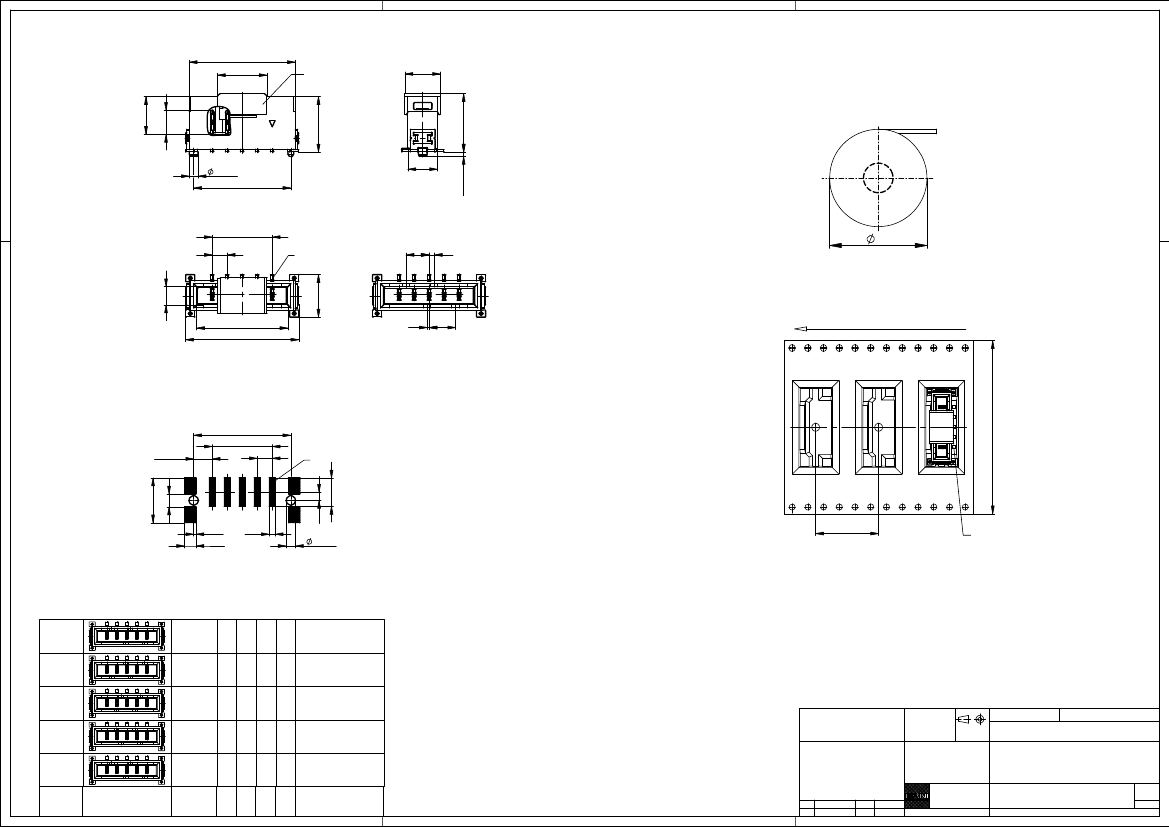

17,96

8,4

Ansaughaube

hood

Verpackt in Gurtverpackung

Tape on Reel Packaging

9,9

Verpackungseinheit: 320 Stück

+0,2

4,1

-0,1

9,4

Packaging unit: 320 pcs

6,4

16,46

±0,05

ohne Ansaughaube

4 x 2,54 = 10,16

2,54

without hood

0,75

-0,1

1,5

-0,06

330

7,2

3,1

15,46

19,16

Abspulrichtung -

Reel off Direction

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

16,46

±0,05

4 x 2,54 = 10,16

Anforderungsstufe 1

Kontaktbereich vergoldet

3,15

±0,03

2,54

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

4,8

7,6

2,2

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

1,4

1,6

-0,03

0,4

1,95

1,02

454205

254834

254833

254832

254831

Ident-Nr.

white

red

green

blue

schwarz

blau

grün

rot

weiß

0,3

4,5

0,9

3,9

Codierung wie Variante schwarz

Encoding such variant black

3,9

0,9

4,5

0,3

2,7

2,1

3,3

1,5

Proprietary notice pursuant to ISO 16016 to be observed.

Performance Level 1

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

1,5

3,3

2,1

2,7

black

color

0,3

4,5

0,9

3,9

part-no.

Codierung

coding

Farbe

Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

29.04.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

M 2,54 SRC-P, 5-polig

www.ERNI.com

Class

note

224914

SRCP
