27-62-4139 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 27-62-4139

27-62-4139: DescriptionHeaders u0026 Wire Housings KK 156 Hdr Assy FrLk Assy FrLk 13 Ckt Tin; CategoryThe connector The connector; File Size240KB，12 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

27-62-4139 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	27-62-4139	-	-	View	Buy Now

27-62-4139 Overview

Headers u0026 Wire Housings KK 156 Hdr Assy FrLk Assy FrLk 13 Ckt Tin

27-62-4139 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FRICTION LOCK
body width	0.394 inch
subject depth	0.446 inch
body length	2.022 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	200u inch
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

CKT

DIM. A

7.77

.306

11.73

.462

15.70

.618

19.66

.774

23.62

.930

27.58

1.086

31.55

1.242

35.51

1.398

39.47

1.554

43.43

1.710

47.40

1.866

51.36

2.022

55.32

2.178

59.28

2.334

63.25

2.490

67.21

2.646

71.17

2.802

DIM. B

SLOT LOC

BETWEEN CKTS

3.96

0.05

.156

.002

7.92

0.08

.312

.003

11.89

0.08

.468

.003

15.85

0.10

.624

.004

19.81

0.10

.780

.004

23.77

0.10

.936

.004

27.74

0.13

1.092

.005

31.70

0.13

1.248

.005

35.66

0.13

1.404

.005

39.62

0.15

1.560

.006

43.59

0.15

1.716

.006

47.55

0.15

1.872

.006

51.51

0.18

2.028

.007

55.47

0.18

2.184

.007

59.44

0.18

2.340

.007

63.40

0.20

2.496

.008

67.36

0.20

2.652

.008

NONE

3&4

4&5

5&6

6&7

4&5

8&9

4&5

9 & 10

5&6

9 & 10

5&6

10 & 11

5&6

11 & 12

6&7

11 & 12

6&7

12 & 13

2.41

.095

5.11

.201

DIM. A REF

DIM. B

1.91

.075

CENTERLINE OF PIN AT TIP

NOT TO VARY FROM

CENTERLINE OF PIN AT DATUM -D-

BY MORE THAN 0.20/.008 IN ANY DIRECTION.

FEATURE MAY BE ON EITHER

SIDE OF THE PART

3.96REF.

.156

TYP. BETWEEN ANY

2 CONSECUTIVE

CKTS. AT -D-

11.33

0.51

.446

.020

0.38

.015

DETAIL Z

GOLD

CKT. NO. 1

SEE NOTE 9

TYP

SEE NOTE 10

AND DETAIL Z

3.30

0.25

.130

.010

TIN

VOIDED CKT.

SEE CHART FOR LOCATION

-D-

TYP

REF

10.01

0.51

.394

.020

CENTERLINE OF PIN AT TIP

NOT TO VARY FROM

CENTERLINE OF PIN AT DATUM -D-

BY MORE THAN 0.13/.005 IN ANY DIRECTION.

NOTES:

1. MATERIAL: HEADER-GLASS FILLED POLYESTER, 94V-0, MOLDED NATURAL (WHITE).

2. FINISH:

(154-TIN)

OVERALL TIN: 0.00254/.000100 MIN.

OVER 0.00127/.000050 MIN NICKEL.

(197-TIN)

OVERALL REFLOWED MATTE TIN: 0.00152/.000060 MIN.

OVER 0.00127/.000050 MIN. NICKEL OVERALL.

(222-TIN)

OVERALL MATTE TIN: 0.00254/.000100 MIN.

OVER 0.00127/.000050 MIN NICKEL.

(208-15 GOLD) SELECT GOLD: 0.00038/.000015 MIN, SELECT TIN: 0.00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

(228-30 GOLD) SELECT GOLD: 0.00076/.000030 MIN, SELECT TIN: 0.00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

(241-20 GOLD) 0.00051/.000020 MIN.

SELECT TIN: 0.00254/.000100 MIN.

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

3. PRODUCT SPECIFICATION AND PROCESS PARAMETERS: SEE PS-08-50.

4. PACKAGING INFORMATION: SEE CHARTS.

5. SOLDERABILITY: PER SMES-152.

6. PIN PUSH-OUT FORCE: PRIOR TO SOLDERING, A 3 LB. MINIMUM FORCE (IN EITHER DIRECTION)

7. PARTS ARE STACKABLE END TO END ON 3.96/.156 CENTERS.

8. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002.

9. SLOTS ON BACKWALL ARE BETWEEN CIRCUITS. SEE CHART FOR LOCATION.

10 FEATURE MAY OR MAY NOT EXTEND ACROSS THE ENTIRE FACE OF THE PART "SEE DETAIL Z".

DETAIL Z

SCALE 4:1

3.96

0.05

TYP

.156

.002 NON-ACCUM

5.08

.200

MIN

1.70

0.05

.067

.002

DIA TYP

2016/08/01

2016/08/18

2016/08/25

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

RECOMMENDED P.C.BOARD LAYOUT

ADD 41791-0090

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

2:1

2003/11/07

DATE

INCH

0.015

0.01

4 PLACES

3 PLACES

2 PLACES

0.25

0.38

JSCHAFER

CHK'D BY

107107

MKIPPER

JBELL

FSMITH

KSAMIEC

APPR BY

DATE

2003/11/07

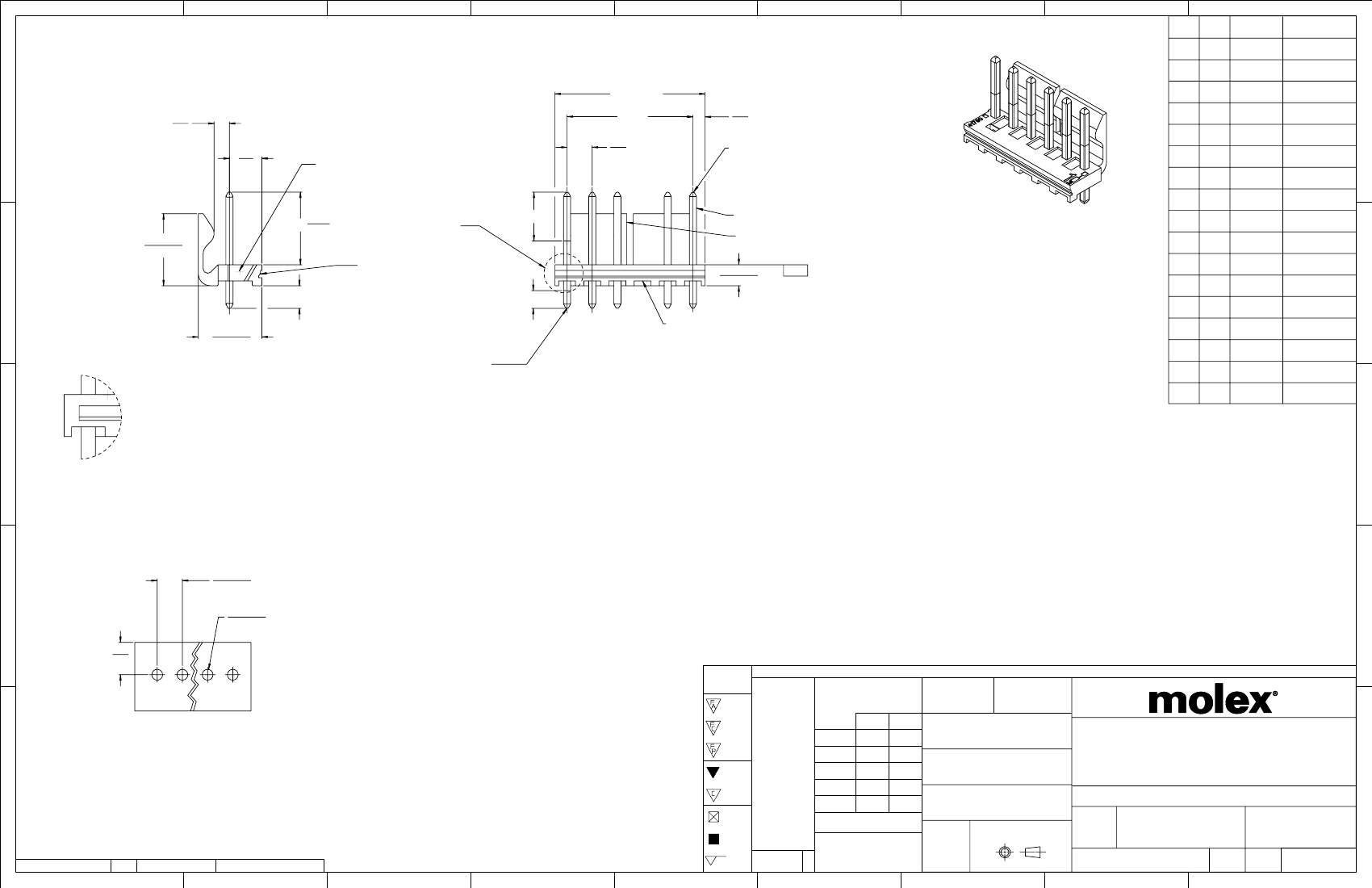

KK 156 HEADER ASSEMBLY

FRICTION LOCK VERTICAL SOLID BODY W/O PEGS

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

1 PLACES

0 PLACES

MARGULIS

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

THIRD ANGLE PROJECTION

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-B

REVISION: C

DATE: 2016/04/04

RELEASE DATE

41791

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

SDA-41791

PSD

000

1 OF *

REV
