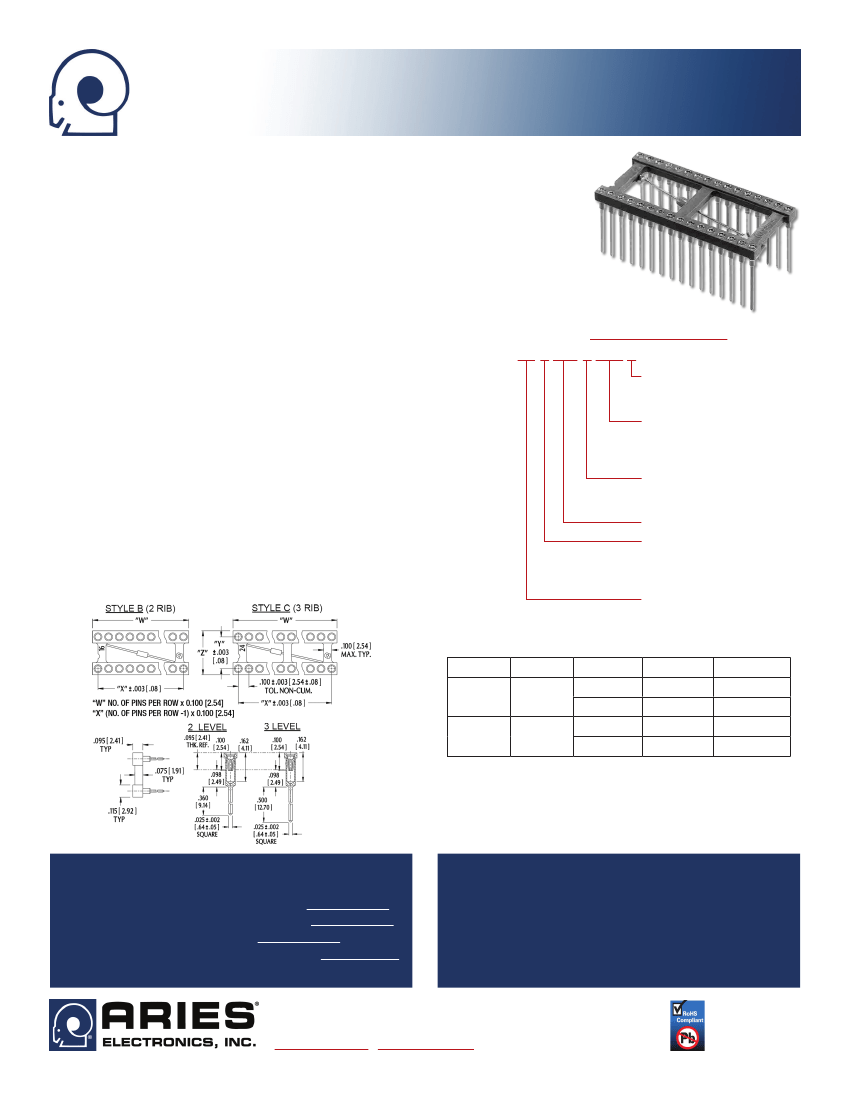

Series 508 Open-Frame Capacitor Socket
w/Collet Contacts & Wire Wrap Pins
FEATURES
• Capacitor bypasses unwanted electromagnetic noise
• Available with 0.1µF or 0.33µF Capacitor, 50V, Z5U temperature coefficient
• Open frame allows for more efficient utilization of board space and better cooling
• Compatible with Automatic Insertion Equipment
• Side-to-side and End-to-end Stackable
GENERAL SPECIFICATIONS
•
BODY MATERIAL: black UL 94V-0 glass-filled Nylon
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16-85
•
PIN BODY PLATING: either 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08µ] min. 93/7 Sn/
ORDERING INFORMATION
Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ
[2.54µ] min. Ni per SAE AMS-QQ-N-290
XX-X 508-X XXX X
•
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM-B194-01
Capacitor
•
CONTACT PLATING: 30µ [0.76µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min.
1 = 0.1µF
Ni per SAE AMS-QQ-N-290
2 = 0.33µF
•
CONTACT CURRENT RATING: 3 amps
Plating
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn : -67°F to
0 = Au Collet, Sn Shell
257°F [-55°C to 125°C] Au
0TL = Au Collet, Sn/Ph Shell
•
INSERTION FORCE: 180g/pin
1 = Au Collet & Shell
•
WITHDRAWAL FORCE: 90g/pin
Termination
•
NORMAL FORCE: 140g/pin; based on a
2 = 2-level Wire Wrap
3 = 3-level Wire Wrap
0.018 [0.46] dia. test lead
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] in dia.
Series
•
LEAD LENGTHS: from 0.100 [2.54] min.
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.045 ±0.002 [1.14 ±0.05] dia.
Row-to-Row Spacing,
“Y” Dim.
3 = 0.300 [7.62]
4 = 0.400 [10.16]
6 = 0.600 [15.24]
No. of Pins
(See Table)
Frame Style
B
C
No. of Ribs
2
3
Centers “Y”
0.300 [7.62]
0.400 [10.16]
0.300 [7.62]
0.600 [15.24]
Dim. “Z”
0.400 [10.16]
0.500 [12.70]
0.400 [10.16]
0.700 [17.78]
No. of Pins
14, 16, 18, 20
20, 22, 24
24, 28
24, 28, 32, 40
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
OPEN FRAME COLLET SOCKET w/WIRE WRAP PINS, SEE DATA SHEET 12016
OPEN FRAME COLLET SOCKET w/SOLDER PIN TAILS, SEE DATA SHEET 12017
OPEN FRAME SURFACE MOUNT SOCKET, SEE DATA SHEET 12018
OPEN FRAME COLLET CAPACITOR SOCKET w/SOLDER PIN, SEE DATA SHEET 12026
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12027
Rev. 1.3
1 of 1
