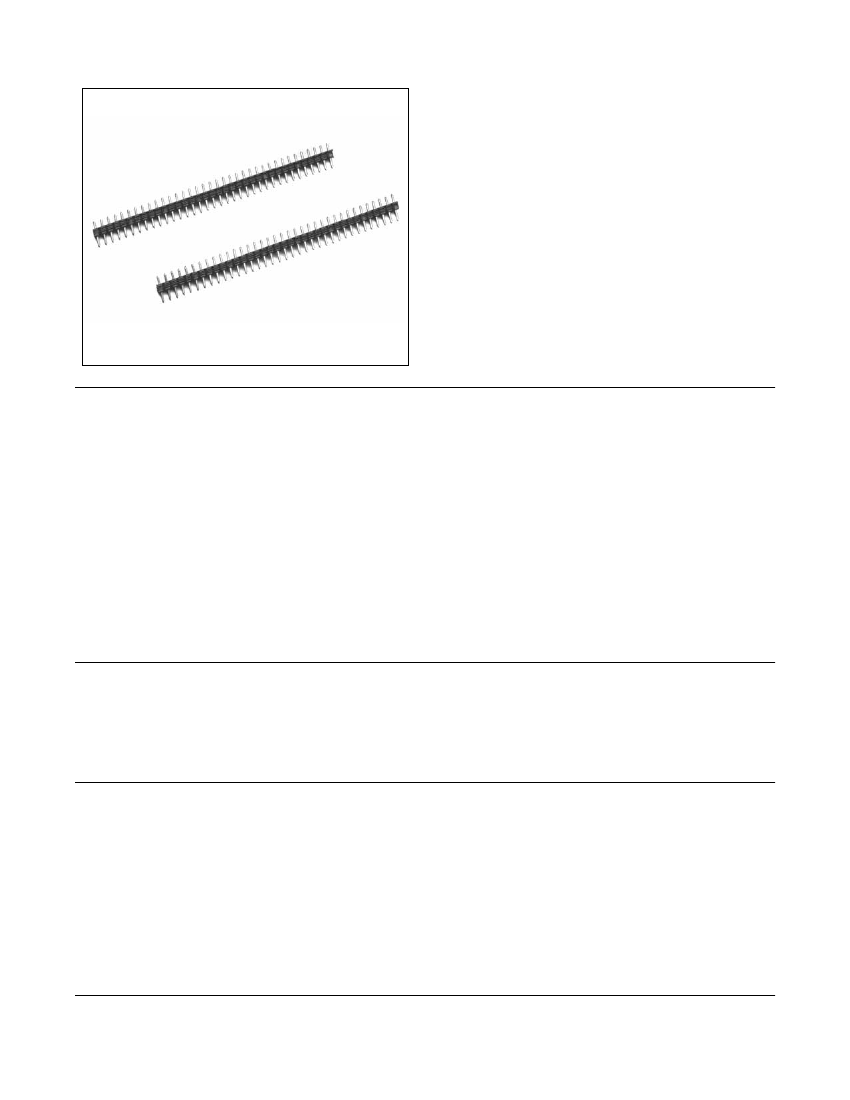

.100" and .100" x .100", .093" Mating Length, Straight, Solder Tails
• Low profile for close board stacking
• Solder stand-offs to facilitate production wave solder
and board cleaning
• Board pin retention feature available
929 Series
• See the Regulatory Information Appendix (RIA) in the
"RoHS Compliance" section of www.3Mconnectors.com
for compliance information.
Date Modified: February 3, 2012
TS-0816-B
Sheet 1 of 2
Physical
Insulation:
Flammability: UL 94V-0
Material: Glass Filled Polyester (PBT) or PCT
Color: Black
Contact:
Wiping Area & Solder Tails: See ordering information
Underplating: 50 μ [ 1.27 μm ] Nickel
Plating:
Material: Copper Alloy
Marking:
None
Electrical
Current Rating:
2.5 A
Insulation Resistance:
> 5 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1500 V
RMS
at Sea Level
Environmental
Temperature Rating:
-40°C to +105°C
Process Rating:
PCT Insulator: 260°C per J-STD-020
Moisture Sensitivity Level:
1 (per J-STD-020C) for PCT insulator only
UL File No.: E68080
PBT Insulator: Maximum insulator temperature 191°C for solder wave process only
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

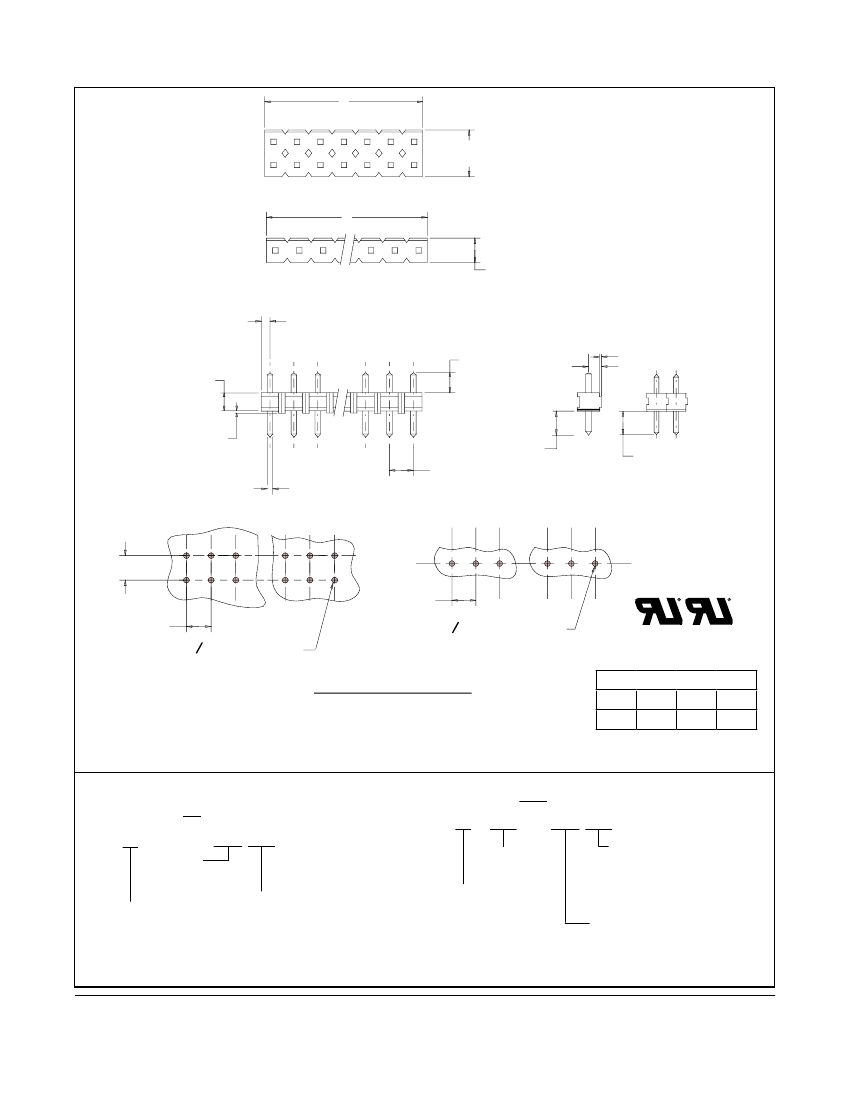

Pin Strip Header
.100" and .100" x .100", .093" Mating Length, Straight, Solder Tails
A
( See Note )
.215 Ref
[5.46]
929 Series
A
( See Note )
.115 [2.92]
2X .05 Max
[1.27]
.093 + .008
-.003
0.013
0.056
.100 [2.54]
.015 [0.38]
.110 +.015
-.010
.100 Typ [2.54]
.025
±
.001 Sq Typ
[0.64]
.110 +.015
-.010
.100
±
.003
[2.54]
.100
±
.003
[ 2.54 ]
.100
±
.003
[2.54]
Ο
Ο
.040
±
.003 After Plating
[1.02]
.040
±
.003 After Plating
[ 1.02 ]
C
mm
[Inch]
Tolerance Unless Noted
.0
mm
±.1
.00
±.01
.000
±.005
Recommended Hole Pattern
Note:
A = .10" [2.5] × pin quantity per row. Dimension A is a maximum when the pin strip is cut to length, not when the strip is
broken to length. 2 row parts not recommended to be broken to length.
[ ] Dimensions for Reference Only
Ordering Information
Tin
9X9800-01-XX-XX
Pin Quantity
(01-36)
Plating Suffix:
blank = 100 μ" [2.54 µm] tin-lead,
PBT insulator (RIA E3 & C2 apply)
RK = 200 μ" [5 μm] matte tin,
PCT insulator (RIA E1 & C1 apply)
9X98XX-01-XX-XX
05 = 1 row
15 = 2 row
Board Retention Feature
2 = None
R = Kinked Tails
Gold Plating Suffix
I = 10 μ" [0.25 μm] all over, PBT insulator
(RIA E1 & C1 apply)
EU = 10 μ" [0.25 µm] all over, PCT insulator
(RIA E1 & C1 apply)
Pin Quantity per row
(01-36)
([02-72] ÷ 2)
TS-0816-B
Sheet 2 of 2
Gold
Board Retention Feature
2 = None
R = Kinked Tails
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
