AMP CT Connector Series
The AMP CT connectors are a miniature wire-to-board and wire-to-wire interconnect solution.
The AMP CT connector series has proven performance in its harness making capability. A variety
of harness-making machines are available ranging from hand tools for low volume production to
high-speed automatic crimping machines for medium to high volume productions. AMP high-speed
automatic crimping machines are easy to operate, eliminating the need for tedious work of changing
parts inside the equipment to adapt to changes in harness styles. Two types of housings are available,
including Crimp and Mass Terminated (MT), which are preloaded with insulation displacement
contacts. The box or shrouded headers are highly resistant to scooping at mating/unmating.
FEATURES AND BENEFITS
•
2 kinds of termination method: IDC, Crimp
•
Discrete wire interconnect
•
Circuits range from 2-15 single row,
•
•
•
•
PRODUCT APPLICATIONS
•
Business Equipment
•
Industrial Machines
•
PC
•
Printer
•
Fax
•
C-TV
•
Audio
•
Air conditioner
•
Anywhere where signals or
•
8-30 dual row
AWG 22~30
Kinks for self-retention on boards
RoHS compliant
Many components are recognized under
the component program of Underwriters
Laboratories Inc., file No. E28476
Certified by Canadian Standards
Association, File No. LR 7189
power are routed
te.com/products/ct
TE Connectivity
AMP CT Connector Series
How to select an AMP CT connector part number
The charts on this page highlight the relationship between the number of contacts (positions) to the part number. Please see the sample chart below
that was designed to help you select the correct part number for your needs. For single digit position to dash numbers, attach the digit to the end
base number. For double digit position to dash numbers, attach the first digit to the front of the part number, add a dash and the base part number,
then follow the base part number with a dash and the second digit.
Example Base Part Number
Your Criteria
Example Position to Dash Selection
Position
173977
173977
You require and 8 position MT housing
You require and 12 position MT housing
Dash Number
Dash Number
8
-8
-8
9
-9
-9
10
-10
-10
11
-11
-11
12
-12
-12
173977-8
1-173977-2
End Part Number Based on Criteria

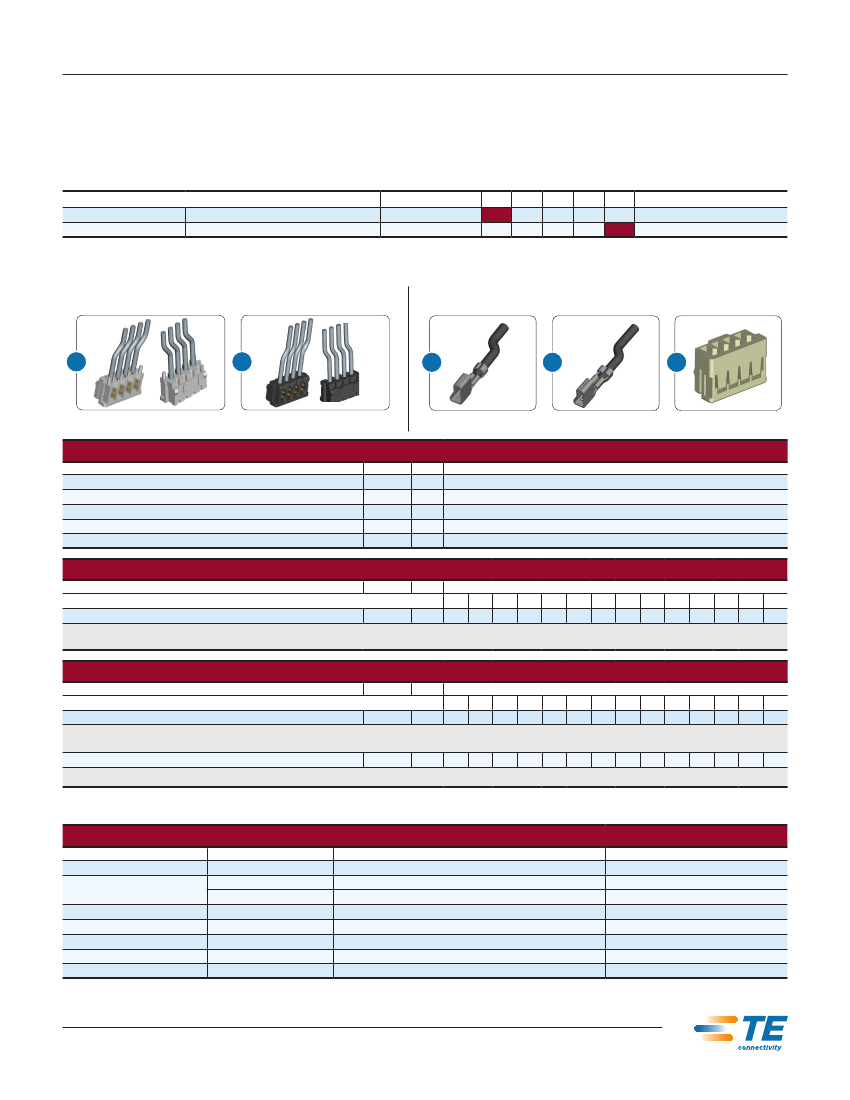

Cable Side Connectors
Mass Termination (MT) vs. Crimp Poke
MT AMP CT Housing
Crimp AMP CT Contact
Crimp AMP
CT Housing
A
B
C
D
E
Shows unstripped wires inserted into an MT housing.
Shows a contact crimped onto a stripped wire to be inserted into a crimp housing.
CRIMP TYPE CONNECTORS
: Contacts
Description
Receptacle Contact - Strip - AWG : 26-30
Receptacle Contact - Loose Piece - AWG : 26-30
Receptacle Contact - Strip - AWG : 22-26
Receptacle Contact - Strip - AWG : 22-26 - Gold plated
Receptacle Contact - Loose Piece - AWG : 22-26 - receptacle
PN
179609-1
179610-1
179227-1
179227-4
179518-1
C
C
D
D
D
Specifications
D,Y
D,Y
D,Y
D,Y
D,Y
CRIMP TYPE CONNECTORS
: Housing
Description
Receptacle Housing
PN
179228
2
E
-2
3
-3
4
-4
5
-5
6
-6
7
-7
Position to Dash
8
-8
9
-9
10
-10
11
-11
12
-12
13
-13
14
-14
15
-15
Mating PNS :
292253; 292161; 292250; 292164; 292133; 292132; 292165; 292173; 292171; 292172; 292134;
176394; 292138; 292252; 292141; 292254; 292156; 292204; 292177; 292178; 292185; 292182; 292181
Specifications :
D,Y
MASS TERMINATION (MT) CONNECTORS
: Pre-Loaded Receptacle Housing
Description
MT receptacle housing (wire application) = AWG : 26-28
PN
173977
2
A
-2
3
-3
4
-4
5
-5
6
-6
7
-7
Position to Dash
8
-8
9
-9
10
-10
11
-11
12
-12
13
-13
14
-14
15
-15
Mating PNS :
292253; 292161; 292250; 292164; 292133; 292132; 292165; 292173; 292171; 292172; 292138;
292252; 292141; 292254; 292156; 292204; 292178; 292182; 175133; 179608
Specifications :
C,X
MT Receptacle Housing - Au Plated (Wire Application) = AWG: 26~28
176392
A
-2
-3
-4
-5
-6
-7
-8
-9
-10
-11
-12
-13
-14
-15
Mating PNS:
292134; 176394
Specifications :
C,X
Cable Side Connectors : Tooling Options
APPLICATION TOOLING
Connector PN
1385047-3*
1739772-2 thru -15
176392-2 thru -15
179610-1
179227-1
179227-4
179518-1
Tooling PN
1385047-3*
58074-1
58372-1
58473-2
1385047-3*
680216-3*
680216-3*
91572-1**
Description
Applicator
Manual Handle without head
2 mm AMP CT (IDC) Head
AMP CT MT Mini Air Terminator
Applicator
Applicator
Applicator
CERTI-CRIMP Hand Tool
Application Spec.
408-8040
408-6790
408-9426
-
408-8040
408-8040
408-8040
408-8547
* Applicators listed are used in the AMP-O-LECTRIC Model G, AMP 3K/40 and AMP 5K/40 Terminators. Call the Tooling Assistance Center at 800-722-1111 for applicator numbers for Automatic Cut, Strip and Terminate Leadmakers.
** Power tooling options are also available. Call Tooling Sales at 888-777-5917 (717-810-2080) for more information
te.com/products/ct
TE Connectivity
AMP CT Connector Series

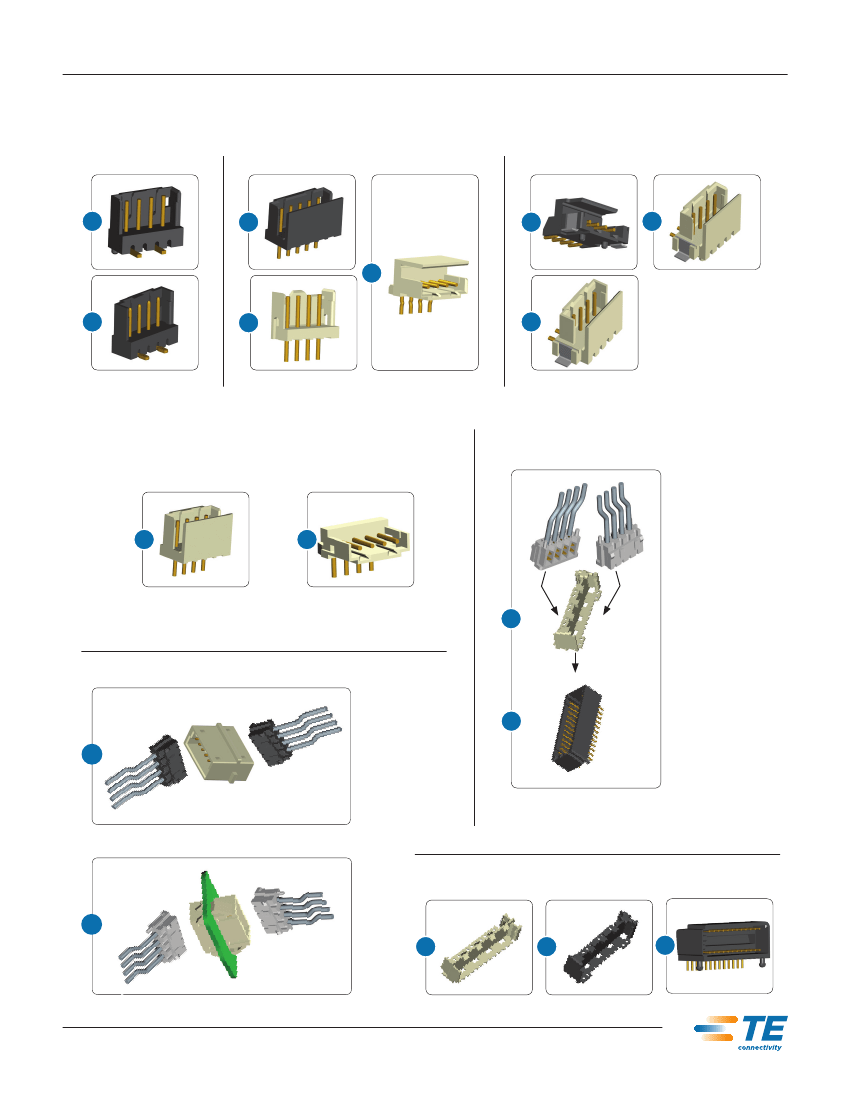

PCB Side Connectors (Single Row + Dual Row)
Common AMP CT Terminology
Locating Boss
Without Kinked Leg
With Kinked Leg
Solder Tabs
N
I
H
K
M
O
G
L
A boss is a mechanical
feature that helps
orientate the headers
onto the PCB.
Kinked legs are designed to secure the
T/H headers onto the PCB.
Solder tabs are designed to secure
the SMT headers onto the PCB.
Header Styles
Box
Standard
Dual Row Assemblies
J
F
Two Single
Row Housings
Box headers offer a
front and back wall
for polarization
of the connector.
Standard headers offer
only a single wall
for polarization
of the connector.
S
Captivating Holder
Free Hanging
V
Q
Requires a holder to
be used along with two
single row housings.
Dual Row Header
Panel Mount
Additional Parts
P
R
T
U
te.com/products/ct
TE Connectivity
AMP CT Connector Series
SINGLE ROW POST HEADER ASSEMBLIES BOARD-MOUNT
Description
TH Std Type - Horizontal Mount w/ Kink
TH Std Type - Vertical Mount w/ Kink
TH Box Type - Horizontal Mount w/ Kink
TH Box Type - Vertical Mount w/o Kink
TH Box Type - Vertical Mount w/ Kink
SMT Box Type - Horizontal Mount Type w/ Solder Tab, w/o Boss
SMT Box Type - Horizontal Mount Type w/ Solder Tab, w/ Boss
SMT Box Type - Vertical Mount Type w/ Solder Tab, w/o Boss
SMT Box Type - Vertical Mount Type w/ Solder Tab, w/ Boss (Natural)
SMT Box Type - Vertical Mount Type w/ Solder Tab, w/ Boss (Black)
SMT Std Type - Vertical Mount w/ Boss
SMT Std Type - Vertical Mount w/o Boss
Plating
TIN
TIN
TIN
TIN
TIN
TIN
TIN
TIN
TIN
TIN
TIN
TIN
PN
292253
292161
292250
292133
292132
292173
292173
292175
292174
292174
292171
292172
2
F
G
H
I
J
K
K
L
M
M
N
O
-2
-2
-2
-2
-2
-22
-2
-22
-2
-22
-2
-2
3
-3
-3
-3
-3
-3
-23
-3
-23
-3
-23
-3
-3
4
-4
-4
-4
-4
-4
-24
-4
-24
-4
-24
-4
-4
5
-5
-5
-5
-5
-5
-25
-5
-25
-5
-25
-5
-5
6
-6
-6
-6
-6
-6
-26
-6
-26
-6
-26
-6
-6
7
-7
-7
-7
-7
-7
-27
-7
-27
-7
-27
-7
-7
Position to Dash
8
-8
-8
-8
-8
-8
-28
-8
-28
-8
-28
-8
-8
9
-9
-9
-9
-9
-9
-29
-9
-29
-9
-29
-9
-9
Specifications :
A, D
10
-10
-10
-10
-10
-10
11
-11
-11
-11
-11
-11
12
-12
-12
-12
-12
-12
13
-13
-13
-13
-13
-13
14
-14
-14
-14
-14
-14
15
-15
-15
-15
-15
-15
Mating PNS :
(MT) 173977; 179694 or (Crimp) 179228 w/ contact
TH Box Type - Vertical Mount w/ Kink
TH Box Type - Horizontal Mount w/ Kink
Gold
Gold
292134
176394
J
H
-2
-2
-3
-4
-4
-5
-6
-6
-8
-9
-10
-10
-12
-15
Mating PNS :
(MT) 173977; 179694 or (Crimp) 179228 w/ 179227-4
Specifications :
A (292134)/ C (176394), D
RECEPTACLE CONNECTOR HOLDERS FOR DUAL ROW HEADERS
Description
Receptacle Housing Captivating Holder (MT)
Receptacle Housing Captivating Holder - Reinforced Retention (MT)
PN
175133
179608
8
R
S
-8
12
-12
16
-16
-16
18
-18
-18
20
-20
-20
22
-22
-22
Position to Dash
24
-24
-24
26
-26
-26
28
-28
-28
30
-30
-30
Specifications
: B
Mating PNS
: 2x (MT) 173977, 176392 or 179695
Receptacle Housing Captivating Holder - Reinforced Retention (Crimp)
179472
T
-8
-12
-16
-18
-20
-22
-24
-26
-28
-30
Specifications :
B
Mating PNS:
2 x (Crimp) 179228 w/ contact
DUAL ROW POST HEADER ASSEMBLIES - BOARD-MOUNT
Description
Horizontal Mount w/ Boardlocks
Vertical Mount w/o Boss
Vertical Mount w/ Boss
PN
292138
292252
292141
8
U
V
V
-8
12
-12
16
-16
-16
-16
18
-18
-18
-18
20
-20
-20
-20
22
-22
-22
-22
Position to Dash
24
-24
-24
-24
26
-26
-26
-26
28
-28
-28
-28
30
-30
-30
-30
Specifications
: B
Complementary PNS
: 175133, 179608 or 179472 w/ 2 x (MT) or 2 x (Crimp) HDRS
SINGLE ROW PANEL-MOUNT HEADERS
Description
Panel Mount Header
PN
292254
2
P
-2
3
-3
4
-4
5
-5
6
-6
7
-7
Position to Dash
8
-8
9
-9
10
-10
11
-11
12
-12
13
-13
14
-14
15
-15
Mating PNS
: (MT) 173977; 179694 or (Crimp) 179228 w/ contact
Specifications
: A,D
SINGLE ROW POST FREE-HANGING WIRE TO WIRE HEADERS
Description
Free Hanging Header
PN
292156
2
Q
-2
3
-3
4
-4
5
-5
6
-6
Specifications
: A,D
Position to Dash
7
8
9
10
11
12
13
14
15
Mating PNS
: (MT) 173977; 179694 or (Crimp) 179228 w/ contact
te.com/products/ct
TE Connectivity
AMP CT Connector Series

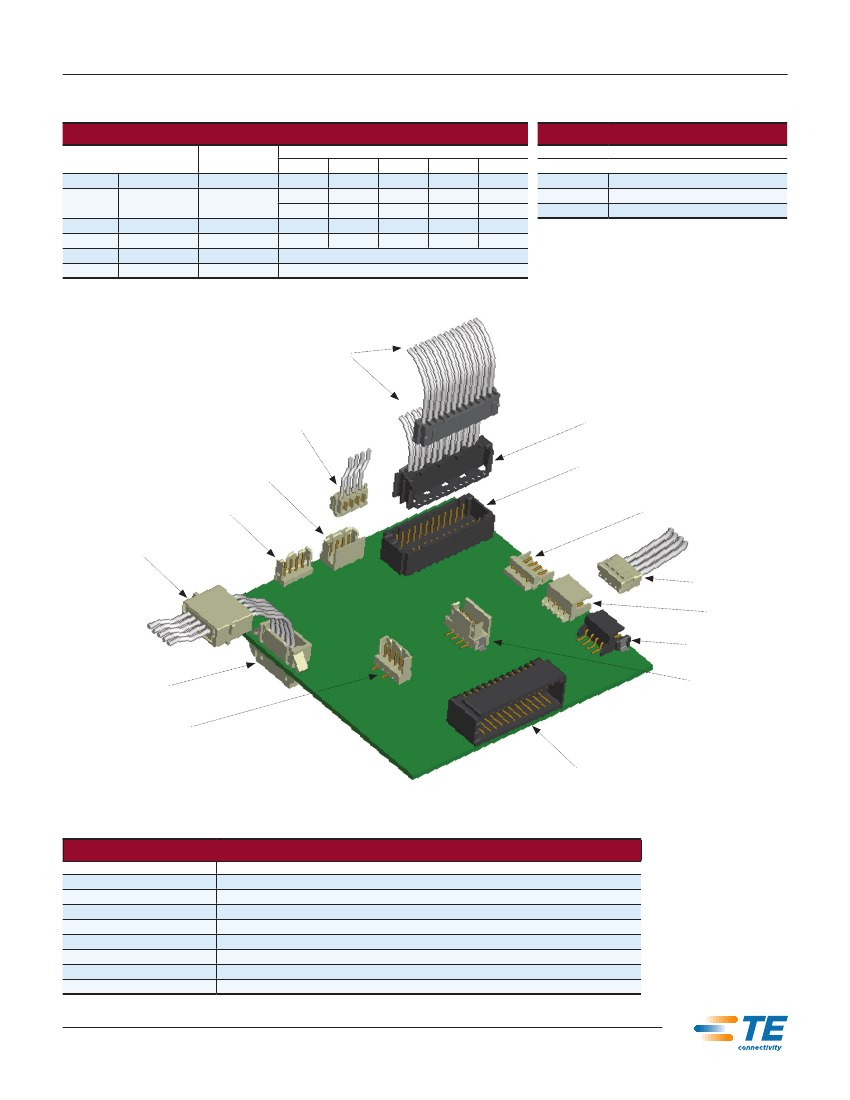

Product/Application Specification
RATINGS
Product Specs
A
B
C
D
E
F
108-60016
108-60020
108-5218
108-60029
108-60024
108-60021
Voltage
125 V (AC/DC)
125 V (AC/DC)
125 V AC
125 V AC
125 V AC
125 V AC
4
3
3
22 AWG
Operating Current (Amps)
24 AWG
26 AWG
28 AWG
3
2
1
2
2
2.5
1
1
1
1
1
1
1.5
1
30 AWG
X
Y
Z
Application Specs
114-5014
114-5179
114-5103
AMP CT Mount Styles
Crimp Receptacle Housing
179228
IDC Receptacle Housing
173997
179472
Captivating Holder
T/H Box Vertical Header
292132
292141
Dual Row T/H Vertical Header
T/H Standard Vertical Header
292161
292253
T/H Standard R/A Header
Free Hanging Header
292156
173977
IDC Receptacle Housing
292250
292173
T/H Box R/A Header
SMT Box R/A Header
Panel Mount Header
292254
292174
SMT Box Vertical Header
SMT Standard Vertical Header
292172
292138
Dual Row T/H R/A Header
AMP CT Design Kits*
Design Kits
PN
2110829-1
2110829-2
2110829-3
2110829-4
2110829-5
2110829-6
2110829-7
2110829-8
Description
AMP CT Deluxe Kit
AMP CT R/A Header
AMP CT Vertical Header
AMP CT R/A Box Header
AMP CT Box Vertical Header
AMP CT Panel Mount
AMP CT Dual Row R/A Header
AMP CT Dual Row Vertical Header
*Design kits are designed and assembled by Waldom and are available for purchase through your local distribution channel.
te.com/products/ct
京公网安备 11010802033920号
EEWORLD
