1800955

Description
Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header
CategoryThe connector
File Size61KB,4 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Download Datasheet Parametric View All

1800955 Online Shopping

Suppliers Part Number Price MOQ In stock
1800955 - - View Buy Now

1800955 Overview

Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header

1800955 Parametric

Parameter NameAttribute value
Product CategoryPluggable Terminal Blocks
ManufacturerPHOENIX CONTACT
RoHSDetails
ProductHeaders
Number of Positions4 Position
Pitch5 mm
Termination StyleThrough Hole
Current Rating12 A
Voltage Rating250 V
Contact PlatingTin
Factory Pack Quantity50
Unit Weight0.118168 oz
https://www.phoenixcontact.com/us/products/1800955
Printed-circuit board connector - MSTBV 2,5/ 4-GF BK - 1800955
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 4, Pitch: 5 mm, Color: black,
Contact surface: Tin, Assembly: Soldering

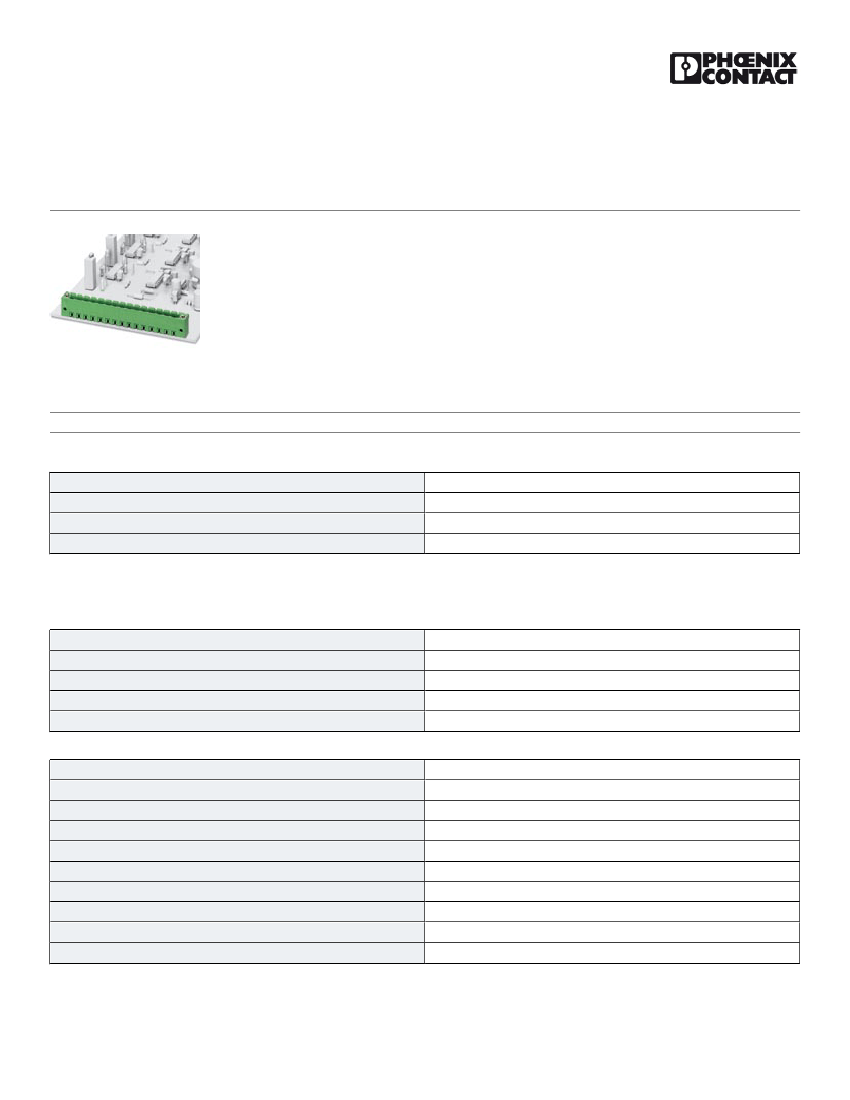

The illustration shows an 15-pos.
version in green
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
3.35 GRM
85366990
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Hole diameter
8.6 mm
5 mm
15 mm
1 x 1 mm
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
MSTBV 2,5/..-GF
IIIa
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
12 A
10/27/2014   Page 1 / 4
